Description

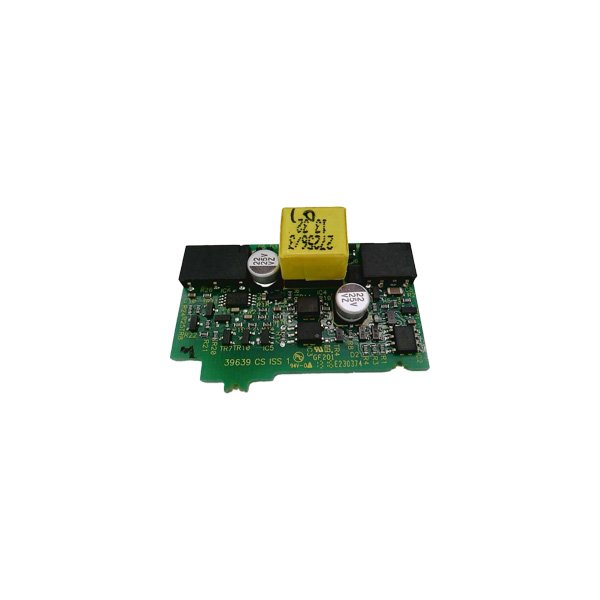

The WEST P01-C21 is a plug-in expansion module designed to provide additional 4-20mA output channels for WEST series controllers and systems. This module allows for easy integration and expansion of analog output capabilities, enabling precise control of actuators, valves, or other field devices. Its plug-in design ensures quick installation and maintenance without complex wiring.
Key Features
- Plug-in Expansion Module for WEST Controllers
- Output Type: 4-20mA Analog Output
- Configuration: Isolated output for noise immunity
- Compatibility: Designed for WEST P-Series and compatible systems
- Installation: Hot-swappable (depending on system design)
- Diagnostics: LED indicators for status and fault monitoring
Technical Specifications
- Supply Voltage: 24V DC (typical, via base unit)
- Output Signal: 4-20mA
- Load Resistance: Typically 0-600 Ohms
- Accuracy: ±0.1% F.S. or better
- Isolation: Channel-to-channel and system isolation
- Operating Temperature: 0°C to +60°C
- Storage Temperature: -20°C to +70°C
- Humidity: 5% to 95% RH (non-condensing)
- Connections: Screw terminal or plug-in connector
- Dimensions: Standard module size (e.g., 22.5mm width)
- Weight: Approx. 100g
Warranty & After-Sales
- Factory new units: 12 months warranty
- Refurbished units: 3-6 months warranty
- Technical support for configuration and installation
- Wiring and mounting assistance
- Compatibility verification with existing systems
- Commissioning and diagnostics support available
Delivery Time
- Standard delivery: 3-5 working days
- Express shipping available upon request
Why Choose Our Store
- Genuine WEST components
- Global supply network with competitive pricing
- Expertise in industrial automation systems
- Comprehensive technical documentation
- Responsive customer service and support
Applications
- Process control systems requiring additional analog outputs
- Integration with WEST P-Series controllers (P01, P02, etc.)
- Control valve positioning
- Variable speed drive control
- Analog signal generation for test and simulation
- Building automation and HVAC control
