Description

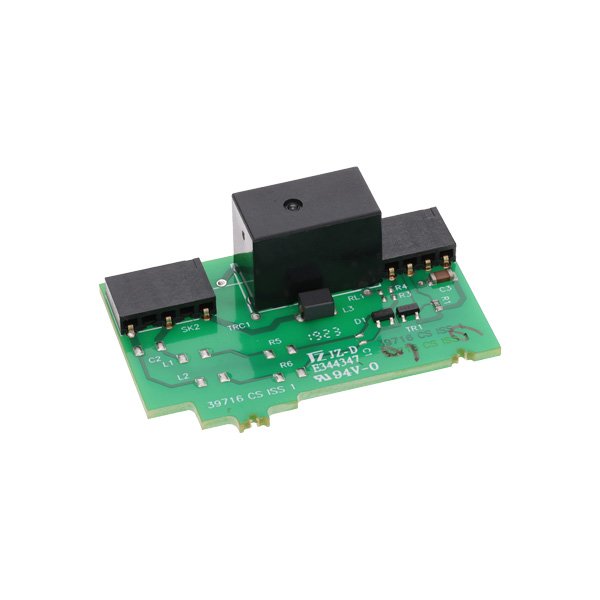

The WEST P01-C80 is a Triac (Solid-State Relay) output option card designed for installation in Slot One of compatible WEST controllers, such as the P01 series. It provides direct switching for AC loads, enabling control of heaters, solenoid valves, motors, or other AC-powered devices. This plug-in card expands the controller’s capabilities with reliable solid-state switching, offering faster response times and longer lifespan compared to mechanical relays.
Key Features
- Output Type: Triac (Solid-State Relay) AC output
- Compatibility: Designed for Slot One of WEST P-Series controllers (e.g., P01)
- Installation: Plug-in option card for easy expansion
- Switching: Direct AC load control
- Diagnostics: Status LED indicators
- Protection: Integrated snubber circuit for inductive load protection
- Isolation: Optical isolation for noise immunity and safety
Technical Specifications
- Supply Voltage: Powered via controller backplane
- Output Configuration: Triac output
- Output Voltage Rating: 120V AC or 240V AC (common configurations)
- Output Current Rating: Typically 2A to 5A per channel
- Number of Channels: 1, 2, or 4 channels (depending on specific card variant)
- Switching Type: Zero-crossing switching for reduced EMI
- Isolation: Optical isolation (input to output)
- Heat Sinking: May require heat sink for high current applications
- Operating Temperature: 0°C to +60°C
- Connections: Screw terminal or plug-in connector
- Dimensions: Standard option card size
- Weight: Approx. 50-100g
Warranty & After-Sales
- Factory new units: 12 months warranty
- Refurbished units: 3-6 months warranty
- Technical support for configuration and installation
- Wiring and mounting assistance
- Compatibility verification with existing systems
- Commissioning and diagnostics support available
Delivery Time
- Standard delivery: 3-5 working days
- Express shipping available upon request
Why Choose Our Store
- Genuine WEST components
- Global supply network with competitive pricing
- Expertise in industrial automation systems
- Comprehensive technical documentation
- Responsive customer service and support
Applications
- Heater control in ovens, furnaces, and process chambers
- AC solenoid valve control
- Small motor or fan control
- Lighting control in industrial environments
- Integration with WEST P-Series temperature or process controllers
- Any application requiring reliable AC load switching
