Description

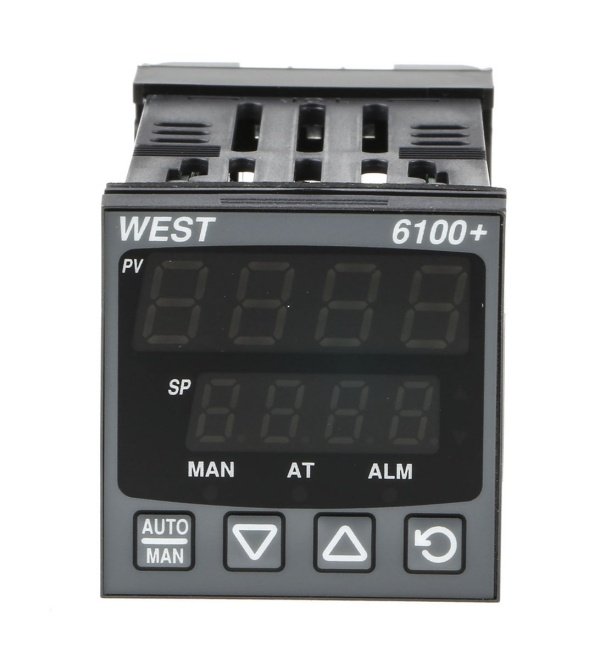

The West Instruments P6100-22000020 is a high-precision, industrial-grade temperature controller from the renowned P6100 series. Designed for critical process control applications, it features a 1/16 DIN compact form factor for easy panel mounting. This model excels in applications requiring precise thermal management, such as in plastic extrusion, packaging machinery, and heat treatment equipment. It offers advanced control algorithms, including PID with autotune, ensuring stable and accurate temperature regulation. Its robust design, clear dual display, and versatile input/output options make it a reliable choice for demanding industrial environments.
Key Features
- High Precision Control: Advanced PID algorithm with autotune function for optimal temperature stability.
- Dual Display: Clear LED display simultaneously shows Process Value (PV) and Set Value (SV).
- Versatile Input: Supports a wide range of thermocouple types (J, K, T, etc.) for flexible sensor integration.
- Multiple Output Options: Available in relay, SSR driver, or analog output versions to suit different load types.
- Compact 1/16 DIN Size: Space-saving 48x48mm panel cutout for easy installation in control cabinets.
- Communication Capable: Optional RS485 communication (Modbus/ASCII protocol) for integration into control networks.
- Rugged Construction: Designed to withstand harsh industrial environments with reliable performance.
- User-Friendly Interface: Intuitive front-panel buttons for straightforward configuration and operation.
Technical Specifications
- Model: P6100-22000020
- Display: Dual 4-digit LED (PV & SV)
- Accuracy: ±0.1% of reading ±1 digit (typically <±0.1°C for temperatures below 100°C)
- Control Algorithm: PID with Autotune, Manual Tune, ON/OFF
- Input Types: J, K, T, R, S, B, E, N, L type Thermocouples (configurable)
- Sampling Rate: 4 updates per second
- Output Types (Varies by specific suffix/model): Relay, SSR Driver (12V DC), Linear Current (4-20mA)
- Power Supply: 100-240V AC, 50/60Hz (or 24V AC/DC depending on model)
- Panel Cutout: 45.5 x 45.5 mm (1/16 DIN)
- Case Dimensions: 48 x 48 x 120 mm (W x H x D)
- Operating Temperature: 0 to 50°C (32 to 122°F)
- Storage Temperature: -20 to 60°C (-4 to 140°F)
- Ambient Humidity: 20-85% RH (non-condensing)
- Safety Standards: CE, UL, cULus compliant (model dependent)
- Communication (Optional): RS485, Modbus RTU or ASCII protocol
Warranty & After-Sales
- Factory new units: 12 months warranty
- Refurbished units: 3-6 months warranty
- Technical support for configuration and installation
- Wiring and mounting assistance
- Compatibility verification with existing systems
- Commissioning and diagnostics support available
Delivery Time
- Standard delivery: 3-5 working days
- Express shipping available upon request
Why Choose Our Store
- Genuine West Instruments components
- Global supply network with competitive pricing
- Expertise in industrial automation and process control systems
- Comprehensive technical documentation and manuals
- Responsive customer service and support
Applications
- Plastic extrusion and injection molding machines
- Packaging and sealing machinery
- Industrial ovens, furnaces, and heat treatment equipment
- Food processing and packaging equipment
- HVAC and environmental test chambers
- Laboratory and analytical equipment
