Description

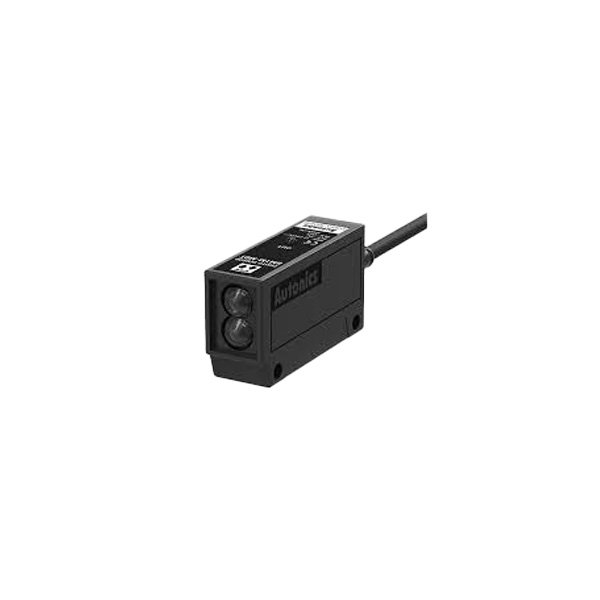

The Autonics BM1M-MDT is a retro-reflective photoelectric sensor designed for reliable object detection in industrial automation. It projects an infrared beam towards a reflector; the object is detected when it interrupts the returning beam. With a compact design, 1m sensing range, and a fixed sensing point, it provides a cost-effective solution for standard applications. Its 2m cable, PNP/NPN output options, and IP20 protection ensure compatibility and durability in various control environments.
Key Features
- Detection Method: Retro-reflective
- Sensing Range: 1m (with MS-2 reflector)
- Light Source: Infrared LED
- Output Type: NPN
- Supply Voltage: 12-24V DC ±10%
- Response Time: ≤ 3 ms
- Connection: Cable type (2m, Ø4mm)
- Protection Rating: IP20
- Operation Mode: Dark ON
- Country of Origin: Republic of Korea
Technical Specifications
Parameter | Specification |
|---|---|
Supply Voltage | 12-24V DC ±10% |
Current Consumption | Max. 40 mA |
Sensing Object | Opaque (> Ø60mm) |
Light Source | Infrared LED (940 nm) |
Output Type | NPN Open Collector |
Response Time | Max. 3 ms |
Housing Material | ABS / Acrylic |
Connection Type | 2m, Ø4mm Cable |
Protection Class | IP20 |
Operating Temperature | -10°C to +60°C |
Storage Temperature | -25°C to +80°C |
Weight | Approx. 105 g |
Warranty & After-Sales
- Factory new units: 12 months warranty
- Refurbished units: 3-6 months warranty
- Technical support for configuration and installation
- Compatibility verification with existing systems
- Commissioning and diagnostics support available
Delivery Time
- Standard delivery: 3-5 working days
- Express shipping available upon request
Why Choose Our Store
- Genuine Autonics components
- Global supply network with competitive pricing
- Expertise in industrial automation systems
- Comprehensive technical documentation
- Responsive customer service and support
Applications
- Object detection on conveyors
- Material handling systems
- Packaging machine part detection
- General industrial automation
