Description

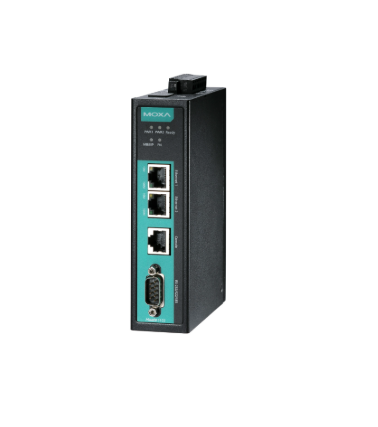

The Moxa MGate 5103 Series are industrial-grade PROFINET gateways designed to bridge legacy serial devices with modern PROFINET networks. These compact gateways enable seamless integration of Modbus RTU/ASCII/TCP devices into PROFINET-based control systems, providing a cost-effective solution for industrial automation upgrades. With robust construction, wide operating temperature range, and easy configuration tools, they are ideal for factory automation, process control, and building management systems.
Key Features
- Gateway Type: PROFINET to Modbus Gateway
- Protocol Support: PROFINET IO-Device, Modbus RTU/ASCII/TCP
- Network Ports: 1x PROFINET (RJ45, 10/100 Mbps)
- Serial Ports: 1x RS-232/422/485 (software-configurable)
- Configuration: Web-based management, Windows utility, GSDML file
- Power Supply: 12-48 V DC (wide range)
- Mounting: DIN-rail mounting
- Operating Temperature: -10°C to +60°C
- Country of Origin: Taiwan
Technical Specifications
- PROFINET Interface: 1x RJ45, 10/100Base-T(X)
- Serial Interface: 1x RS-232/422/485, DB9 male
- Protocol Support: PROFINET IO, Modbus RTU/ASCII Master/Slave, Modbus TCP Client/Server
- Data Mapping: Up to 256 bytes input and 256 bytes output
- Power Requirements: 12-48 V DC, 1.5 W typical
- Isolation: 1.5 kV (Ethernet to serial)
- LED Indicators: PWR, SYS, PN, COM, LINK/ACT
- Certifications: CE, FCC, UL, cUL, RoHS, PROFINET conformance
- Dimensions: 32 mm × 105 mm × 110 mm
- Weight: Approx. 320 g
- Protection Class: IP30
Warranty & After-Sales
- Factory new units: 12 months warranty
- Refurbished units: 3-6 months warranty
- Technical support for configuration and installation
- Wiring and mounting assistance
- Compatibility verification with existing systems
- Commissioning and diagnostics support available
Delivery Time
- Standard delivery: 3-5 working days
- Express shipping available upon request
Why Choose Our Store
- Genuine Moxa components
- Global supply network with competitive pricing
- Expertise in industrial automation systems
- Comprehensive technical documentation
- Responsive customer service and support
Applications
- Factory automation (PLC connectivity)
- Process control (instrument integration)
- Building management systems
- Energy management systems
- Water/wastewater treatment
- Oil and gas monitoring
- Renewable energy systems
