Description

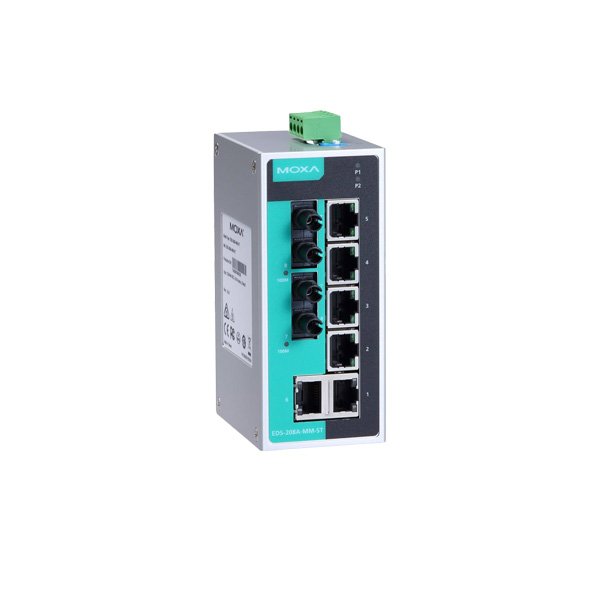

The Moxa EDS-208A-MM-ST is an industrial-grade unmanaged Ethernet switch designed for harsh environments. This compact switch features 6 Fast Ethernet (10/100BaseTX) RJ45 ports and 2 Fast Ethernet (100BaseFX) Multi-mode Fiber ports with ST connectors. It supports redundant dual power inputs (12/24/48 VDC or 18-30 VAC), ensuring continuous operation in critical applications. With its rugged aluminum housing, IP30 rating, and wide operating temperature range, it is ideal for industrial automation, transportation, and maritime applications.
Key Features
- Port Configuration: 6 x 10/100BaseTX (RJ45), 2 x 100BaseFX Multi-mode (ST)
- Power Supply: 12/24/48 VDC (9.6 to 60 VDC) or 18-30 VAC (47-63 Hz)
- Redundancy: Dual redundant power inputs with reverse polarity protection
- Durability: IP30-rated aluminum housing, DIN-rail mounting
- Industrial Standards: Supports maritime (DNV/GL/LR/ABS/NK), railway (EN 50121-4), and hazardous locations (Class I Div. 2)
- Broadcast Storm Protection: Enabled via DIP switches for enhanced network stability
Technical Specifications
- Supply Voltage: 12/24/48 VDC (9.6 to 60 VDC); 18 to 30 VAC (47 to 63 Hz)
- Power Consumption: Typically 5.28 W (0.22 A @ 24 VDC)
- Operating Temperature: Standard: -10°C to +60°C; Wide Temp Models: -40°C to +75°C
- Storage Temperature: -40°C to +85°C
- Protection: Reverse polarity protection, overload current protection (1.1 A)
- Fiber Distance: Up to 4 km (Multi-mode, 50/125 µm)
- Switching Method: Store-and-Forward
- MAC Table Size: 2K entries
- Dimensions: 50 x 114 x 70 mm (W x H x D)
- Weight: Approx. 275 g
Warranty & After-Sales
- Factory New Units: 12 months warranty
- Refurbished Units: 3-6 months warranty
- Technical Support: Configuration and installation assistance
- Compatibility Verification: Support for existing systems
- Commissioning Support: Diagnostics and setup assistance
Delivery Time
- Standard Delivery: 3-5 working days
- Express Shipping: Available upon request
Why Choose Our Store
- Genuine Moxa Components: Guaranteed original parts
- Global Supply Network: Competitive pricing and worldwide shipping
- Industrial Expertise: Specialized knowledge in automation systems
- Comprehensive Documentation: Full technical datasheets and manuals
- Responsive Support: Quick response for quotes and technical inquiries
Applications
- Industrial Automation: Factory control networks, PLC connectivity
- Transportation: Railway signaling, roadside traffic control (NEMA TS2)
- Maritime: Shipboard networks and offshore applications
- Power Utilities: Substation automation and SCADA systems
- Machine Safety: Integration into safety control loops
