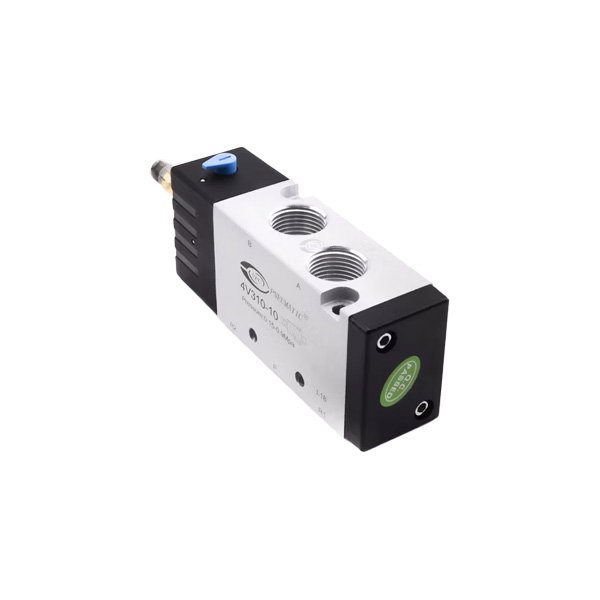

The 4V310-08 series is a high-performance, direct-acting 5/2-way (5-port, 2-position) pneumatic solenoid valve designed for industrial automation and machinery. This compact valve features a universal G1/4″ port size and is capable of handling high flow rates (Cv up to 1.2) with low power consumption. The series includes multiple variants: 4V31008A (Standard AC/DC), 4V31008B (Low Power DC), 4V310-08-E (Explosion-proof), 4V310-08-F (High Frequency), 4V310-08-C (Low Temperature), and 4V310-08-XO (Manual Override). It operates on the principle of direct solenoid actuation without a pilot, making it suitable for applications requiring fast response times and no minimum pressure requirement.
Key Features
- 5/2-Way Solenoid Valve (5 ports, 2 positions)
- Port Size: G1/4″ (ISO G1/4, NPT 1/4″)
- Function: Normally Closed (NC), Normally Open (NO), or Universal (depending on suffix)
- Voltage Options: AC 110V/220V, DC 12V/24V (varies by model)
- Construction: Direct-acting, brass body, NBR seals (standard)
- Manual Override: Available on -XO models
- Country of Origin: China (Manufactured to international standards)
Technical Specifications
Parameter | Specification |
|---|---|
Valve Type | 5/2-Way, Direct Acting |
Port Size | G1/4″ (ISO G1/4, NPT 1/4″) |
Flow Coefficient (Cv) | 1.2 |
Operating Pressure | 0 – 0.8 MPa (0 – 8 bar / 0 – 116 psi) |
Voltage Tolerance | ±10% |
Power Consumption | AC: ~5.5 VA; DC: ~5.5 W (Standard) / ~1.8 W (Low Power -B) |
Response Time | ≤ 20 ms (Standard) / ≤ 10 ms (High Freq. -F) |
Ambient Temperature | -5°C to +50°C (Standard) / -20°C to +50°C (-C) |
Fluid Media | Compressed Air (Lubricated or Non-lubricated) |
Protection Class | IP65 (Standard) |
Body Material | Brass (Die-cast) |
Seal Material | NBR (Standard), VITON (Optional for high temp) |
Coil Insulation | Class B (130°C) |
Weight | Approx. 0.35 kg |
Model Variant Breakdown
Model Suffix | Key Feature | Typical Application |
|---|---|---|
4V31008A | Standard version, AC or DC, general purpose | Packaging machines, general automation |
4V31008B | Low power consumption (DC), energy-saving | Battery-operated systems, mobile equipment |
4V310-08-E | Explosion-proof enclosure (Ex d IIC T6) | Petrochemical, paint spraying, hazardous areas |
4V310-08-F | High frequency, fast response (≤10ms) | High-speed pick-and-place, sorting systems |
4V310-08-C | Low temperature operation (-20°C) | Refrigeration, cold storage, outdoor winter use |
4V310-08-XO | Manual override (push-button or lever) | Maintenance, debugging, emergency operation |
Warranty & After-Sales
- Factory new units: 12 months warranty
- Refurbished units: 3-6 months warranty
- Technical support for voltage selection and wiring (AC vs DC, polarity)
- Assistance with manifold block mounting and port adapters
- Compatibility verification with your existing pneumatic circuit
- Diagnostics support for common failures (coil burnout, stuck spool)
Delivery Time
- Standard delivery: 3-5 working days
- Express shipping available upon request
Why Choose Our Store
- Genuine components from leading pneumatic manufacturers (SMC, Airtac, etc.)
- Global supply network with competitive pricing
- Expertise in pneumatic and electro-pneumatic systems
- Comprehensive technical documentation (Datasheets, CAD models)
- Responsive customer service and support
Applications
- Double-acting cylinder control (extend/retract)
- Clamping and gripping mechanisms in robotics
- Packaging machinery (bag sealing, filling)
- Textile machinery (loom control)
- Automotive assembly lines
- Replacement for failed valves in existing machinery
