Description

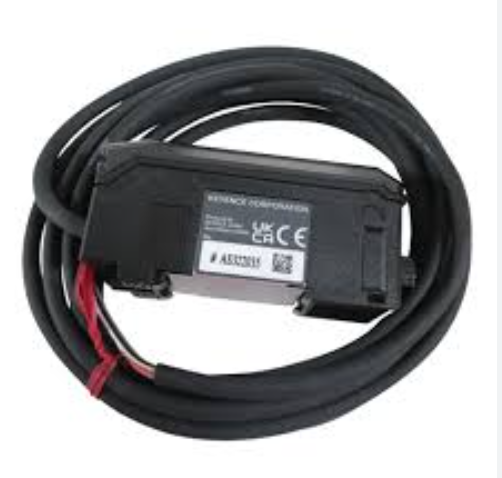

The KEYENCE GT2-72P is a DIN-rail mounted amplifier unit designed for the GT2 series high-accuracy digital contact sensors. As an expansion unit, it connects to a main amplifier (like the GT2-71P) to add additional measurement channels. It offers PNP open-collector outputs and supports ultra-fine measurements with 0.1 µm resolution, making it ideal for precise dimensional gauging in manufacturing environments.
Key Features
- Unit Type: Expansion Amplifier Unit (Sub-unit)
- Output Type: PNP Open Collector
- Resolution: 0.1 µm
- Display: 6½-digit LED for measured value
- Control Outputs: HH/HI/GO/LO/LL (5 levels)
- Response Time: 3 ms to 1,000 ms (selectable)
- Country of Origin: Japan
Technical Specifications
- Supply Voltage: 10 to 30 V DC
- Current Consumption: ≤ 73.3 mA (Normal), ≤ 56.7 mA (Eco)
- Control Input: Timing, Preset, Reset, Bank
- Control Output: 30 V DC, 50 mA max.
- Operating Temperature: -10°C to +50°C
- Dimensions: Compact DIN-rail mount
- Weight: Approx. 140 g
- Standards: CE, UL, RoHS compliant
Warranty & After-Sales
- Factory new units: 12 months warranty
- Refurbished units: 3-6 months warranty
- Technical support for configuration and wiring
- Compatibility verification with GT2 sensor heads
- Commissioning and diagnostics support available
Delivery Time
- Standard delivery: 3-5 working days
- Express shipping available upon request
Why Choose Our Store
- Genuine KEYENCE components
- Global supply network with competitive pricing
- Expertise in industrial sensor systems
- Comprehensive technical documentation
- Responsive customer service and support
Applications
- Thickness and height measurement
- Dimensional inspection in automotive manufacturing
- Precision electronics assembly
- Multi-channel gauging stations
