Description

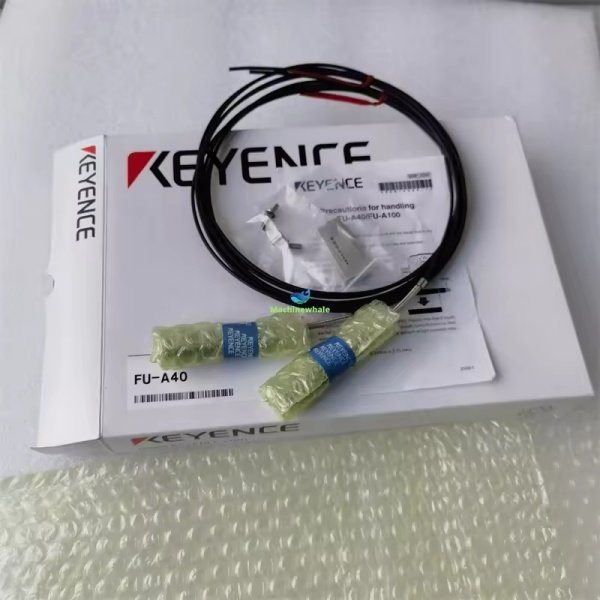

The KEYENCE FU-A40 Fiber Unit (Thrubeam Type) is a high-performance fiber optic sensor head designed for non-contact object detection in industrial automation. This thrubeam (opposed) type fiber unit features an array beam design with a beam range of 40 x 0.25 mm, requiring connection to compatible KEYENCE amplifiers (such as the FS-N series) to achieve long-distance, high-precision detection. Constructed with a rugged zinc die-cast housing and a PBT sensing face, it boasts an IP67 protection rating for reliable operation in harsh industrial environments from -20°C to +50°C. The unit comes with a 2-meter freely trimmable fiber cable, offering flexible installation for automated production lines, material detection, and position monitoring applications.
Key Features
- Thrubeam (Opposed) Fiber Unit, requires amplifier
- Beam Range: 40 x 0.25 mm (array beam)
- Sensing Distance: Up to 2800 mm with FS-N series amplifier (MEGA mode)
- Protection Rating: IP67
- Operating Temperature: -20°C to +50°C
- Fiber Cable: 2 meters, freely trimmable
- Housing Material: Zinc die-cast housing, PBT sensing face
- Mounting: M4 screws
- Country of Origin: Japan
Technical Specifications
- Detection Method: Thrubeam (Opposed, Transmissive)
- Beam Diameter: 40 x 0.25 mm
- Standard Detection Object: ø2.5 mm opaque object (minimum detectable)
- Fiber Type: Plastic fiber (acrylic resin core)
- Cable Length: 2 meters (freely trimmable, 5m version optional)
- Fiber Bending Radius: R10 mm minimum
- Protection Rating: IP67
- Ambient Temperature: -20°C to +50°C (non-condensing)
- Relative Humidity: 35% to 85% RH (non-condensing)
- Housing Material: Zinc die-cast, PBT sensing face
- Connection: Fiber optic connector (requires compatible KEYENCE amplifier like FS-N series)
- Mounting Torque: 0.75 N·m
- Weight: Approximately 70 g
- Included Accessories: Mounting screws (M4 x L8, 4 pcs)
- Standards: CE, RoHS compliant
Warranty & After-Sales
- Factory new units: 12 months warranty
- Refurbished units: 3-6 months warranty
- Technical support for configuration and installation
- Compatibility verification with existing systems
- Commissioning and diagnostics support available
Delivery Time
- Standard delivery: 3-5 working days
- Express shipping available upon request
Why Choose Our Store
- Genuine KEYENCE components
- Global supply network with competitive pricing
- Expertise in industrial automation systems
- Comprehensive technical documentation
- Responsive customer service and support
Applications
- Object detection in automated production lines
- Material presence/passage detection
- Position monitoring in packaging machinery
- Conveyor belt counting
- Machine safety door detection
- Small object detection applications
