Description

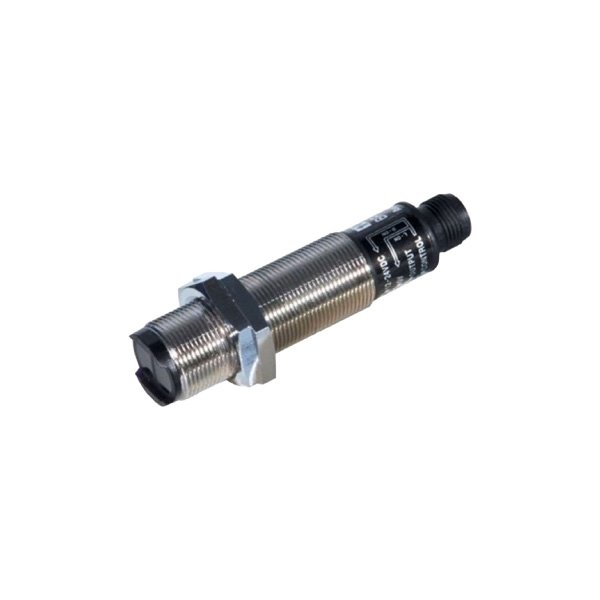

The Autonics BR100-DDT is a reliable, compact photoelectric sensor from the BR-C series, designed for object detection in industrial automation. This diffuse reflective sensor features a visible red LED light source, allowing for easy beam alignment. It offers a fixed sensing distance of 100 mm, making it suitable for medium-range detection applications. With a robust M12 housing and a choice of NPN or PNP output configurations, it provides versatility for different control systems. The sensor is built to withstand harsh industrial environments, offering a high switching frequency for fast-paced production lines.
Key Features
- Compact Photoelectric Sensor with visible red LED
- Sensing Type: Diffuse reflective
- Sensing Range: 100 mm
- Light Source: Red LED (visible)
- Output Configuration: NPN or PNP (please specify)
- Connection: Pre-wired cable or M12 connector (varies by model)
- Protection Rating: IP67
- Response Time: ≤ 1 ms
- Country of Origin: South Korea
Technical Specifications
- Supply Voltage: 12-24 V DC (±10%)
- Current Consumption: ≤ 25 mA
- Output Type: NPN or PNP (Open collector)
- Output Current: ≤ 100 mA
- Switching Frequency: 1 kHz
- Light Source: Red LED
- Wavelength: 620-630 nm
- Housing Material: Metal (Nickel-plated brass) or Plastic
- Dimensions (ø x L): 12 mm × 47.4 mm
- Weight: Approx. 15 g
- Connection Type: 2m cable or M12 connector
- Protection Class: IP67
- Operating Temperature: -25°C to +55°C
- Storage Temperature: -30°C to +70°C
- Standards: CE, RoHS compliant
Warranty & After-Sales
- Factory new units: 12 months warranty
- Refurbished units: 3-6 months warranty
- Technical support for configuration and installation
- Wiring and mounting assistance
- Compatibility verification with existing systems
- Commissioning and diagnostics support available
Delivery Time
- Standard delivery: 3-5 working days
- Express shipping available upon request
Why Choose Our Store
- Genuine Autonics components
- Global supply network with competitive pricing
- Expertise in industrial automation systems
- Comprehensive technical documentation
- Responsive customer service and support
Applications
- Object Detection: Presence/absence detection on conveyors
- Counting: Part counting in assembly lines
- Positioning: Detecting object position in machinery
- Automation: General-purpose sensing in automated systems
- Packaging: Detecting products in packaging machines
