Description

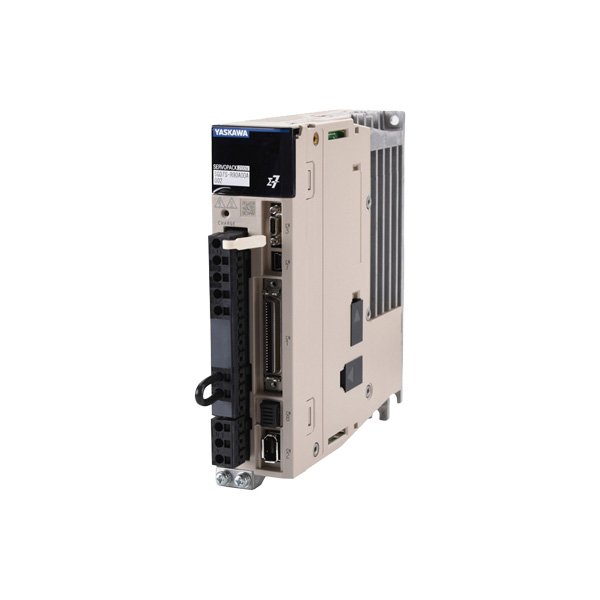

The YASKAWA SGD7S series represents the cutting-edge Sigma-7 Single Axis Servopacks, designed for high-performance motion control in demanding industrial environments. These digital AC servo amplifiers are engineered to deliver exceptional speed and precision, featuring advanced vibration suppression and high-frequency response. The series includes models with both single-phase and three-phase input options, supporting a wide range of motor types including rotary and linear servomotors. With their compact “book-style” housing, these servopacks enable high-density installation in control cabinets, saving valuable panel space while providing robust performance for applications requiring fast acceleration and precise positioning .
Key Features
- High Frequency Response: Advanced control algorithms provide a frequency response up to 3.1 kHz, ensuring stable and accurate motion control even at high speeds .
- Advanced Vibration Suppression: Built-in vibration suppression technology minimizes machine vibration during operation, leading to smoother motion and improved product quality .
- Space-Saving Design: The “book-style” housing allows for side-by-side, gap-free installation, maximizing the use of cabinet space .
- Quick Setup: Features like “tuning-less” function and auto-tuning capabilities allow for immediate use and quick adjustment, reducing commissioning time .
- High Resolution: Supports 24-bit encoder feedback for superior positioning accuracy .
- Flexible Control Modes: Supports position, speed, and torque control modes to suit various application requirements .
- Eco-Friendly Operation: Reduced heat generation and energy sharing capabilities contribute to lower operating costs .
- Country of Origin: Japan .
Technical Specifications
- Model Series: SGD7S (Sigma-7 Series)
- Rated Output Current: 7.6 A (Continuous) / 17 A (Instantaneous Max)
- Rated Output Power: Approximately 1.0 kW (Motor Dependent)
- Input Voltage: 170-253 VAC (Single/Three-Phase, 50/60Hz)
- Control Modes: Position, Speed, Torque
- Speed Control Range: 1:5000
- Encoder Support: 24-bit absolute/incremental
- Communication Interface: RS-422, Analog Voltage/Pulse Train References
- Digital I/O: Multiple digital inputs and outputs for control and status monitoring
- Protection Functions: Overcurrent, Overvoltage, Low Voltage, Overload, Regeneration Error
- Operating Temperature: -5°C to +55°C
- Storage Temperature: -20°C to +85°C
- Protection Degree: IP20
- Mounting: Base Mounting / Rackmount
- Weight: Approximately 0.5 kg
Warranty & After-Sales
- Factory new units: 12 months warranty
- Refurbished units: 3-6 months warranty
- Technical support for configuration and installation
- Wiring and mounting assistance
- Compatibility verification with existing systems
- Commissioning and diagnostics support available
Delivery Time
- Standard delivery: 3-5 working days
- Express shipping available upon request
Why Choose Our Store
- Genuine YASKAWA components
- Global supply network with competitive pricing
- Expertise in industrial automation systems
- Comprehensive technical documentation
- Responsive customer service and support
Applications
- Packaging Machinery: High-speed filling, capping, and labeling operations .
- Semiconductor Manufacturing: Precision handling and positioning of wafers .
- Machine Tools: CNC machining, drilling, and milling operations .
- Robotics: Articulated arm control and precise end-effector positioning .
- Digital Printing: High-speed paper handling and print head positioning .
- Wood Processing: Cutting, routing, and material handling .
