Description

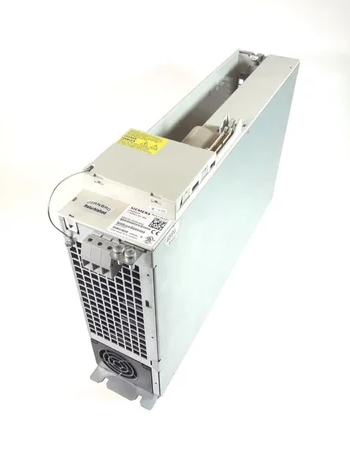

The Siemens 6SN1123-1AA00-0BA1 (and its variants 0DA2, 0HA1, 0HA2, 0AA1, 0AA2, 0BA2, 0CA1) is a SIMODRIVE 611 Single-Axis Power Module, a high-performance servo drive power stage designed for precise speed and position control in industrial automation applications. This power module is part of the modular SIMODRIVE 611 drive system, delivering regulated DC bus power to connected servo motors (1FT5, 1FT6, 1PH series). It features internal cooling, comprehensive protection against overvoltage, overcurrent, and overtemperature, and supports seamless integration with SIMODRIVE 611 control modules for closed-loop motion control. With a rugged metal housing and IP20 protection rating, it is suitable for harsh industrial environments. Various current ratings are available across the suffix variants, ranging from 8A (0HA1) to 135A (0DA2), making this series adaptable to a wide range of motor power requirements.
Key Features
- Drive Type: Single-axis servo power module (SIMODRIVE 611)
- Rated Current (0BA1): 25 A (other suffixes: 8A / 15A / 50A / 80A / 135A — see variant table)
- DC Bus Voltage: 600 V DC / 625 V DC (regulated)
- Cooling: Internal fan (forced air cooling)
- Protection: Overvoltage, overcurrent, overtemperature, short-circuit
- Connection: Screw terminals (DC bus, motor, control interface)
- Protection Rating: IP20
- Operating Temperature: 0°C to +55°C
- Country of Origin: Germany
Model & Variant Reference (Current Ratings)
Model / Order Code | Rated Current | Typical Motor Matching (1FT5 / 1FT6 / 1PH / Induction) |
|---|---|---|
6SN1123-1AA00-0HA1 | 8 A | 1FT5: 4A / 1FT6: 3A / Induction: 3A |
6SN1123-1AA00-0HA2 | 8 A (with extended features) | Same as 0HA1 |
6SN1123-1AA00-0AA1 | 15 A | 1FT5: 7.5A / 1FT6: 5A / Induction: 5A |
6SN1123-1AA00-0AA2 | 15 A (with extended features) | Same as 0AA1 |
6SN1123-1AA00-0BA1 (listed) | 25 A | 1FT5: 12.5A / 1FT6: 9A / Induction: 8A |
6SN1123-1AA00-0BA2 | 25 A (with extended features) | Same as 0BA1 |
6SN1123-1AA00-0CA1 | 50 A | 1FT5: 25A / 1FT6: 18A / 1PH: 24A |
6SN1123-1AA00-0DA2 | 135 A | 1FT5: 68A / 1FT6: 46A / 1PH: 42A |
Technical Specifications (Representative — 6SN1123-1AA00-0BA1, 25A)
Parameter | Specification |
|---|---|
Model / Order Code | 6SN1123-1AA00-0BA1 (Siemens SIMODRIVE 611 Power Module) |
Type | Single-axis servo power module |
Rated Current (0BA1) | 25 A |
Peak Current (short-term) | 37.5 A (150% for 60 seconds) |
DC Bus Voltage | 600 V DC / 625 V DC (regulated) |
Efficiency | ≥ 96% (typical) |
Switching Frequency | 4 kHz / 8 kHz (selectable) |
Cooling Method | Forced air (internal fan) |
Protection Functions | Overvoltage, overcurrent, overtemperature, short-circuit, ground fault |
Housing Material | Metal (aluminum / steel) |
Dimensions (W×H×D) | 100 mm × 370 mm × 270 mm (approx. — varies by current rating) |
Weight | Approx. 8.5 kg (0BA1) |
Mounting | Panel mounting (bolt-on) |
Connection Type | Screw terminals (DC bus, motor, control interface) |
Protection Class | IP20 |
Operating Temperature | 0°C to +55°C |
Storage Temperature | -25°C to +70°C |
Standards | CE, UL, cUL, RoHS compliant |
Warranty & After-Sales
- Factory new units: 12 months warranty
- Refurbished units: 3-6 months warranty
- Technical support for configuration and installation
- Wiring and mounting assistance
- Compatibility verification with existing systems
- Commissioning and diagnostics support available
Delivery Time
- Standard delivery: 3-5 working days
- Express shipping available upon request
Why Choose Our Store
- Genuine Siemens SIMODRIVE components
- Global supply network with competitive pricing
- Expertise in industrial automation systems
- Comprehensive technical documentation
- Responsive customer service and support
Applications
- CNC machine tool spindle and axis drives
- Industrial robot servo control
- Printing and packaging machinery
- Textile and woodworking equipment
- High-precision positioning and motion control systems
- Material handling and automation lines
