Description

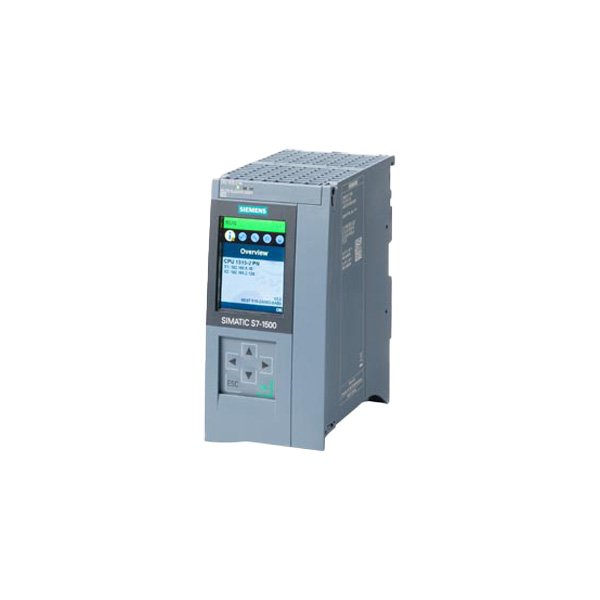

The listed Siemens 6ES7515-2AN03-0AB0, 6ES7515-2TM01-0AB0, 6ES7515-2FM02-0AB0, 6ES7516-3AK02-0AB0​ are SIMATIC S7-1500 Series Central Processing Units (CPUs)​ — the flagship advanced controller family from Siemens for medium to high-complexity automation tasks. Key differentiators:
  • 6ES7515-2AN03-0AB0​ → CPU 1515-2 PN​ — Dual-port PROFINET (RT/IRT), ~ 500 KB work memory, OPC UA Server/Client, Web Server — most popular mid-range S7-1500 CPU for plant & machine.
  • 6ES7515-2TM01-0AB0​ → CPU 1515T-2 PN​ — Technology version of 1515-2 PN with motion control (up to 6 axes kinematics / CAM profiles)​ — for coordinated motion apps.
  • 6ES7515-2FM02-0AB0​ → CPU 1515F-2 PN​ — Failsafe (F-CPU) version of 1515-2 PN — supports PROFIsafe, Safety Integrated (SIL 3 / PL e) — for safety-related applications.
  • 6ES7516-3AK02-0AB0​ → CPU 1516-3 PN/DP​ — Higher-end S7-1500 CPU with additional PROFIBUS DP port, larger work memory (~ 5 MB), more I/O capacity — for larger plants / data-intensive processes.
All S7-1500 CPUs feature a front-facing display (color / monochrome per gen.) with operator keys, integrated SD card slot (program/recipe storage), onboard PROFINET port(s), and are configured in TIA Portal (STEP 7 Professional V13+ required minimum).

Key Features

  • Performance: Significantly faster scan times vs S7-300/400 — 32-bit RISC CPU, large bit/word/real instruction set.
  • Display: Front LED matrix/color display shows CPU status, IP address, diagnostic buffer, variable values without PG — keys for ACK/reset.
  • Memory: Work memory 250 KB – 5 MB+ (model dependent); Load memory via SD card (up to 32 GB — standard SDHC).
  • Communication: PROFINET (RT/IRT) standard; PROFIBUS DP on -3xx PN/DP models; OPC UA Server built-in (on most); Modbus TCP via function block.
  • Safety / Motion: F-version CPUs support Safety Integrated (F-runtime group); T-version CPUs support Technology Objects (TO_Axis, TO_Cam, etc.).
  • Country of Origin: Germany / Hungary / China (Siemens Global)

Model & Specification Table (S7-1500 CPU Family — Listed Items)

Model
CPU Type
PROFINET Ports
PROFIBUS DP
Work Memory
Special Feature
6ES7515-2AN03-0AB0​
CPU 1515-2 PN
2 × (RT/IRT)
—
500 KB
Standard — OPC UA, Web Server
6ES7515-2TM01-0AB0​
CPU 1515T-2 PN (Technology)
2 × (RT/IRT)
—
500 KB + Tech. Obj.
Motion Kinematics (up to 6 axes), CAM
6ES7515-2FM02-0AB0​
CPU 1515F-2 PN (Failsafe)
2 × (RT/IRT)
—
500 KB + F-cfg
SIL3/PL e (PROFIsafe), F-Program
6ES7516-3AK02-0AB0​
CPU 1516-3 PN/DP
2 × (RT/IRT)
1 × DP (12 Mbps)
5 MB
Larger mem., DP Master/Slave + PN
⚠️ Important Selection Notes:
  1. TIA Portal Version: S7-1500 CPUs require TIA Portal V13 SP1 or later (V14/V15/V16/V17/V18 recommended per CPU fw version). V12 or older STEP 7 Classic (for S7-300/400) CANNOT program S7-1500!
  2. SD Card: S7-1500 needs a SIMATIC Memory Card (6ES7954-8LB01-0AA0 = 24 MB min; 6ES7954-8LF01-0AA0 = 256 MB typical; 6ES7954-8LL03-0AA0 = 32 GB for data logs)​ — serves as load memory & firmware update carrier. NOT included with CPU — order separately!
  3. Failsafe vs Standard: If you need safety functions (STO via PROFIsafe, safety relay emulation in SW) → buy F-CPU (…-2FM..)​ AND you need STEP 7 Safety Advanced​ license. Standard CPUs cannot execute F-programs.
  4. Technology (T-CPU): 1515T adds motion control objects (axis, cam, kinematic TX) — can control SINAMICS drives directly via PROFIdrive telegrams without separate motion controller. If only simple PTO/PWM from CPU → standard CPU with Technology Objects (limited axes) may suffice; for multi-axis coordinated motion → T-CPU.
  5. Front Connector / I/O: S7-1500 CPUs have NO local I/O terminals on CPU itself (unlike S7-1200 which has onboard DI/DO on some). All I/O is via S7-1500 I/O modules (SM 521/522/531…) in central rack or ET 200SP/MP distributed.

Technical Specifications (Representative — 6ES7515-2AN03-0AB0, CPU 1515-2 PN)

Parameter
Specification
Model / Order Code​
6ES7515-2AN03-0AB0 (Siemens SIMATIC S7-1500 CPU 1515-2 PN)
CPU Family​
SIMATIC S7-1500 — Mid-range
Program Work Memory​
500 KB (for user program + data blocks)
Load Memory​
Via SIMATIC Memory Card (SDHC up to 32 GB — card stores project, recipes, data logs)
Execution Time (Bit Op)​
10 ns (typical for 1515)
Communication Interfaces​
2 × PROFINET (RJ45) — 10/100/1000 Mbps — RT (Real-Time) & IRT (Isochronous Real-Time) supported; 1 × Service Port (USB? — no, service via PN port); OPC UA Server built-in
PROFIBUS DP​
— (not on -2 PN; -3 PN/DP models have 1 × DP port)
Display​
Front color/monochrome graphic display with 4 navigation/confirm keys — shows status, IP, diag. buffer
Integrated Functions​
PID (via FB), High-speed counters (via tech. obj.), OPC UA, Web Server, Trace (recording vars)
Max. I/O Address Space​
32 KB inputs + 32 KB outputs (typical S7-1500)
Max. Distributed I/O (PROFINET)​
256 I/O modules / up to 1024 distributed stations (practical limit by update time)
Power Supply (Backplane)​
Drawn from S7-1500 rack PS (PS 60W/120W — 6ES7505-0KA00-0AB0 etc.)
Slot in Rack​
Slot 2 in S7-1500 rack (Slot 1 = Power Supply)
Dimensions (W×H×D)​
35 mm (standard S7-1500 module width) × 147 mm × 129 mm
Weight​
~ 0.7 kg
Operating Temp.​
0 … +60 °C (horizontal/vertical — check manual)
Software Requirement​
TIA Portal V13 SP1 Update 8 or later (V14/V15/V16/V17/V18 — match FW version) + STEP 7 Professional license
Standards​
CE, UL, cUL, FM (Cls I Div 2), ATEX (some), RoHS, EN 61131-2

Warranty & After-Sales

  • Factory new units: 12 months warranty
  • Refurbished units: 3-6 months warranty (boot test, PROFINET link test with TIA Portal)
  • Technical support for:
    • TIA Portal HW config (insert CPU, set IP, PROFINET device/controller role, telegram selection)
    • SIMATIC Memory Card selection (min 24 MB — recommend 256 MB or 512 MB for logs; FW update procedure)
    • F-CPU / T-CPU application notes (Safety Advanced license requirement / Tech Obj. axis count)
    • Migration check (S7-300/400 → S7-1500 — data type changes, timer/clock memory migration, peripheral addressing differences)
    • S7-1500 I/O module pairing (SM 521/522/531 in central rack; ET 200SP with IM 155-6 PN)
  • Cross-reference S7-1200 (6ES7214-1AG40-0XB0 etc.) if smaller application

Delivery Time

  • Standard delivery: 3-5 working days (stock CPUs)
  • Express shipping available upon request (priority for downtime)

Why Choose Our Store

  • Genuine Siemens SIMATIC S7-1500 CPUs — not gray-market with locked FW or cloned MAC
  • Global supply network with competitive pricing
  • Expertise in S7-1500 hardware configuration, TIA Portal commissioning & S7-300/400 migration
  • Comprehensive technical documentation (HW install guide, Memory Card part cross-ref, TIA Portal quick-start)
  • Responsive customer service and support

Applications

  • Machine & Plant Control: Mid-to-high complexity — packaging lines, process skids, batching, material handling.
  • Motion Control (T-CPU): Multi-axis coordinated motion — electronic camming, gantry (via 1515T).
  • Safety-Critical Systems (F-CPU): Presses, guillotines, perimeter guarding with PROFIsafe drives & safety I/O (via 1515F).
  • Data-Intensive / OPC UA: Recipe management, data logging to SD card / SQL via OPC UA (1515-2 PN native support).
  • Retrofit / Modernization: Replace S7-300/400 racks — gain front display, faster scan, modern networking (PROFINET IRT, OPC UA).
