Description

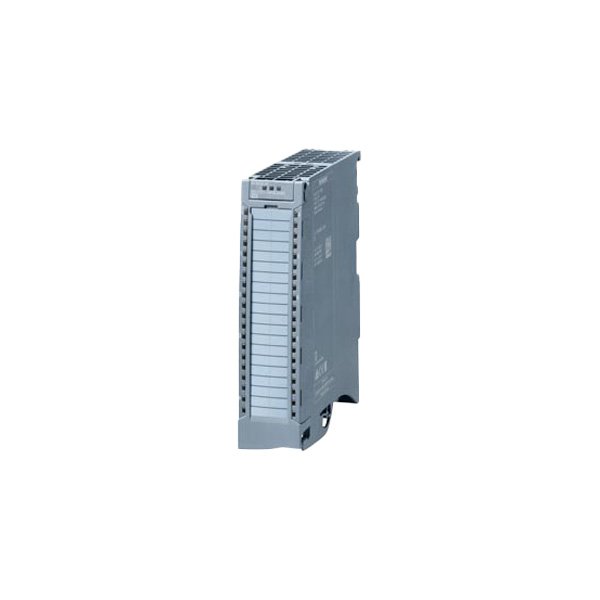

The Siemens SIMATIC S7-1500 Analog Input Modules (AI 8×U/I/RTD/TC and AI 4×U/I HS) provide high-resolution signal acquisition for voltage, current, RTD temperature sensors, and thermocouples. The 6ES7531-7NF00-0AB0 offers 8 channels of universal analog input (voltage/current/RTD/TC), while 6ES7531-7QF00-0AB0 is a high-speed 8-channel version. The 6ES7531-7NF10-0AB0 is the updated/alternate NF variant with extended features. The 6ES7534-7QE00-0AB0 is a combo Analog Input + Analog Output (4 AI + 2 AO) module — ideal for compact process control applications. All modules snap into the S7-1500 central or distributed rack and are configured via TIA Portal.
Key Features
- High Resolution: Up to 16-bit + sign for precise process measurement.
- Universal Channels (7NF00/7NF10): Each channel independently configurable for ±10V, ±5V, 0–10V, 0/4–20mA, RTD (Pt100/Ni100/etc.), Thermocouple (Type J/K/T/R/S/B/E/N).
- High Speed (7QF00): Optimized for fast scanning applications.
- Combo Module (6ES7534-7QE00-0AB0): 4 AI (universal) + 2 AO (±10V or 0/4–20mA), saves rack space.
- Diagnostics: Channel-level wire-break, overflow/underflow, and module-level diagnostics reported to CPU.
- Country of Origin: Germany
Model & Specification Table
Model | Type | Channels | Key Spec | Typical Use |
|---|---|---|---|---|
6ES7531-7NF00-0AB0 | AI 8×U/I/RTD/TC | 8 AI (Universal) | 16-bit, all types selectable per ch. | General process & temp. meas. |
6ES7531-7QF00-0AB0 | AI 8×U/I/RTD/TC HS | 8 AI (Universal HS) | Faster conversion, same I/O range | Fast cyclic process ctrl. |
6ES7531-7NF10-0AB0 | AI 8×U/I/RTD/TC (Rev.2) | 8 AI (Universal) | Enhanced NF variant (check FW compat.) | Drop-in for 7NF00 in newer proj. |
6ES7534-7QE00-0AB0 | AI 4×U/I/RTD/TC + AO 2×U/I | 4 AI + 2 AO | AI universal; AO ±10V or 0/4–20mA | Compact valve/temp + actuator ctrl. |
💡 Note: The S7-1500 analog modules are not backward-compatible with S7-300/400 racks. They require an S7-1500 CPU (e.g., 1511-1 PN, 1513-1 PN, 1515-2 PN, etc.) or ET 200MP distributed I/O station (with IM 155-5 PN ST/HF).
Technical Specifications (Representative — 6ES7531-7NF00-0AB0)
Parameter | Specification |
|---|---|
Module Type | SIMATIC S7-1500, SM 531 Analog Input Module |
Input Channels | 8 × Universal (Voltage / Current / RTD / Thermocouple) |
Input Ranges | ±10V, ±5V, 0–10V, 0/4–20mA, RTD (2/3/4-wire), TC (all std. types) |
Resolution | 16-bit + sign (voltage/current); 0.1°C/0.1°F (RTD/TC typical) |
Conversion Time | Approx. 0.625 ms/ch (typ. setting) — adjustable |
Wire Break Detection | Yes (current mode & RTD 3/4-wire) |
Isolation | Channel-to-backplane & channel groups isolated from system |
Backplane Bus Current | Typ. 80 mA from 5V backplane |
Power Dissipation | Approx. 1.2 W |
Dimensions (W×H×D) | 35 mm × 147 mm × 129 mm (S7-1500 single slot width) |
Weight | Approx. 0.35 kg |
Standards | IEC 61131-2, CE, UL, cULus, FM (selected), RoHS |
Warranty & After-Sales
- Factory new units: 12 months warranty
- Refurbished units: 3-6 months warranty
- Technical support for TIA Portal HW Config (range selection, smoothing filter, alarm thresholds)
- RTD/thermocouple wiring & compensation (cold junction) guidance
- Compatibility check with S7-1500 CPU firmware version
- Troubleshooting “Measured value out of range / wire break” diagnostics
Delivery Time
- Standard delivery: 3-5 working days (stock items)
- Express shipping available upon request
Why Choose Our Store
- Genuine Siemens SIMATIC S7-1500 I/O modules
- Global supply network with competitive pricing
- Expertise in S7-1500 / TIA Portal system configuration
- Comprehensive technical documentation (datasheets, GSD, TIA sample projects)
- Responsive customer service and support
Applications
- Process & hybrid industry analog data acquisition (pressure, flow, level)
- Temperature monitoring via RTD / Thermocouple
- Compact machine control (AI + AO combo — 6ES7534-7QE00)
- Test benches & lab automation requiring high-res analog in
- Distributed I/O (ET 200MP with IM 155-5 PN) in large plants
