Description

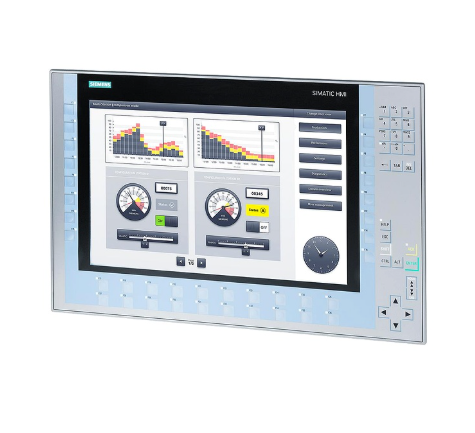

The Siemens 6AV2124-1QC02-0AX0 is a SIMATIC HMI KTP1200 Basic Color PN (2nd Generation Basic Panel) — a 12-inch TFT color display with both function keys (F-keys) and resistive touch screen, designed for cost-effective machine-level operation and monitoring in PROFINET (Ethernet) environments.
- KTP1200 Basic Color PN → 12″ widescreen TFT (1280 × 800 WXGA), 16 million colors, Keypad (22 membrane F-keys + cursor/num pad) + Touch, PROFINET RJ45 interface (no MPI/DP — Basic Panels are PN-only), configured with TIA Portal (WinCC Basic/Comfort/Engineering — “Basic Panels” license included in TIA Portal starter/engineering sw).
- Part of the SIMATIC HMI Basic Panel 2nd Gen family (replaces older TP170B/TP177B micro panels in new designs — not direct pin/software compatible but function-wise a modern replacement).
- Not a Comfort Panel — Basic Panels have limited script support, no recipes/archiving onboard (can use PLC-side archiving), but cover 90% of standard machine HMI needs at lower cost.
The KTP1200 Basic is typically used on packaging machines, filling lines, test stands, and OEM equipment where a larger 12″ screen with both keys and touch is preferred for operator familiarity and quick pushbutton access plus screen navigation.
Key Features
- Display: 12″ TFT Color — 1280 × 800 (WXGA — 16:10), 16M colors
- Input: Keypad (F1–F20/F22 + arrow/numeric) + Resistive Touch (glove operable)
- Interface: 1 × RJ45 10/100 Mbps PROFINET (RT — real-time class 1)
- Configuration Software: TIA Portal V13 SP1 Upd8 or later (V14/V15/V16/V17 recommended) — requires “WinCC (Basic/Comfort/Advanced)” with Basic Panels enabled — older WinCC Flexible CANNOT configure Basic/Comfort 2nd Gen panels!
- Supply Voltage: 24 V DC (18–30 V DC)
- Front Protection: IP65 (front); IP20 (rear)
- Country of Origin: Germany / Hungary / China (Siemens Digital Factory)
Model & Variant Reference (Siemens Basic / Comfort Panels — Context)
Model | Type | Size | Input | Interface | Notes |
|---|---|---|---|---|---|
6AV2124-1QC02-0AX0 (listed) | KTP1200 Basic Color PN | 12″ WXGA | Keypad + Touch | PROFINET (PN-only) | Cost-effective — TIA Portal only — replaces TP170B/TP177B in new designs |
6AV2124-1DC01-0AX0 | TP1200 Comfort (no keys) | 12″ WXGA | Pure Touch | PROFINET + (on Comfort) optional MPI/DP if -2?? with PB | Higher-end — scripts, recipes, archives — more $ |
6AV2123-2MB03-0AX0 | KTP400 Basic Color PN | 4″ | Key+Touch | PN-only | Small Basic panel |
6AV6647-0AF11-3AX0 | TP177B (legacy) | 5.7″ | Touch | PN / MPI/DP (dep. on suffix) | Discontinued— WinCC Flexible 2008 — shown for comparison ONLY |
6AV6545-0BC15-2AX0 | TP170B (legacy) | 5.7″/7″ | Touch/Key | MPI/DP / optional PN | Discontinued— shown for cross-ref |
⚠️ Critical Notes:
Technical Specifications (6AV2124-1QC02-0AX0 — KTP1200 Basic Color PN, 12″ KTP, PROFINET)
Parameter | Specification |
|---|---|
Model / Order Code | 6AV2124-1QC02-0AX0 (Siemens SIMATIC HMI KTP1200 Basic Color PN) |
Series | SIMATIC HMI Basic Panel — 2nd Generation |
Display Size / Type | 12.1″ TFT Color LCD (active matrix — 16,777,216 colors — 24-bit color depth) |
Resolution | 1280 × 800 pixels (WXGA — 16:10 aspect ratio) |
Input Method | Keypad (22 function keys + cursor/num — backlit) + Resistive Touch Screen (glove operable) |
Interfaces (Comm.) | 1 × RJ45 10/100 Mbps PROFINET (RT — no MPI/DP) |
Configuration SW | TIA Portal V13 SP1 Upd8 or later — WinCC (Basic / Comfort / Advanced edition — Basic Panels option enabled) |
Internal Project Memory | ≥ 12 MB (typical for Basic 2nd Gen — enough for moderate screen sets) |
Supply Voltage | 24 V DC (18 … 30 V DC — nominal 24 V DC) |
Power Consumption | Max ~ 18 W (typical) |
Front Protection | IP65 (front side with gasket); Rear IP20 |
Mounting Cutout | 308 mm (W) × 242 mm (H) — see datasheet dwg (panel-mount with clips) |
Operating Temp. | 0 … +50 °C |
Dimensions (W×H×D) | 332 mm × 266 mm × 63 mm (approx. — with bezel) |
Weight | ~ 2.8 kg |
Standards | CE, UL, cUL, KC, RoHS, EN 61131-2 |
Included Accessories | Printed Quick Start Guide (multi-lang), mounting clips, gasket — cable/programming adapter NOT included (use std Ethernet cable) |
Warranty & After-Sales
- Factory new units: 12 months warranty
- Refurbished units: 3-6 months warranty (display + touch + project download loopback test)
- Technical support for:
- TIA Portal HW insert (correct panel type: KTP1200 Basic PN — NOT Comfort! — select 6AV2124-1QC02-0AX0)
- Project transfer (assign temp IP via Boot Menu or PRONETA → TIA Portal download over Ethernet)
- Legacy migration advice (TP170B/TP177B → KTP1200 — rebuild screens in TIA; partial import wizard from WinCC Flexible to TIA exists but often needs rework)
- Power / grounding recommendations (24V DC stable supply, shield earthing)
- Cross-ref to TP1200 Comfort (6AV2124-1DC01-0AX0 — if MPI/DP + PN needed or advanced scripting/recipes)
- Optional: 24V DC PSU (SITOP PSU100S 6EP1332-1SH51), Ethernet patch cable, panel gasket spares
Delivery Time
- Standard delivery: 3-5 working days (stock items)
- Express shipping available upon request
Why Choose Our Store
- Genuine Siemens SIMATIC HMI panels — not gray-market with backlight unevenness or dead pixels
- Global supply network with competitive pricing
- Expertise in TIA Portal HMI configuration (Basic vs Comfort panel selection, IP assignment, project download, legacy replacement considerations)
- Comprehensive technical documentation (cutout dwg, TIA Portal insert screenshot, Ethernet transfer steps)
- Responsive customer service and support
Applications
- Machine Level HMI (OEM): 12″ KTP gives good visibility + F-keys for quick command (Start/Stop/Jog/Reset) — packaging/filling/bottling lines.
- Retrofit (Legacy → New): Replacing obsolete TP170B/TP177B — larger clearer display, Ethernet-native, modern graphics — rebuild screens in TIA Portal.
- Process Skid / Test Stand: Operator interface for setpoint entry, alarm ack, trend view (Basic supports simple f(x) trends — no long-term archive onboard).
- Start-up / Commissioning: Use keypad for familiar pushbutton feel + touch for screen navigation.
- Maintenance Spare: Exact article number drop-in — transfer project via TIA Portal → download to new panel.
