Description

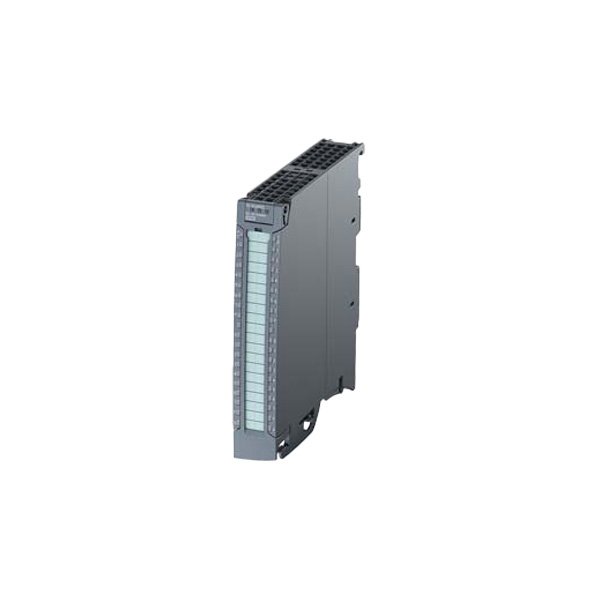

The SIEMENS 6ES7522-1BL01-0AB0 is a high-performance 32-channel digital output module from the SIMATIC S7-1500 series. Engineered for precision and reliability, this module features transistor outputs with a current-sourcing configuration, rated at 24V DC/0.5A per channel. It is designed for seamless integration into advanced control systems, ensuring efficient and accurate signal processing in demanding industrial environments. With its compact design and robust construction, it facilitates easy installation and operation.
Key Features
- High Channel Density: 32 digital transistor outputs
- Current Rating: 0.5A per channel, 4A per group (8 channels per group)
- Output Type: Transistor, current-sourcing (PNP)
- Diagnostics: Single-channel diagnostics with substitute value capability
- Protection: Short-circuit protection with electronic clocking
- Compatibility: SIMATIC S7-1500 and ET 200MP systems
- Connection: Front connector (screw terminals or push-in) required separately
Technical Specifications
- Article Number: 6ES7522-1BL01-0AB0
- Product Type: DQ 32x24V DC/0.5A HF
- Number of Outputs: 32
- Rated Output Voltage: 24V DC
- Max Output Current: 0.5A per channel
- Supply Voltage Range: 20.4V to 28.8V DC
- Power Consumption: 1.1W from backplane bus (typical)
- Power Loss: 3.5W (typical)
- Short-circuit Protection: Yes, electronic
- Reverse Polarity Protection: Yes
- Operating Temperature: -25°C to +60°C
- Storage Temperature: -40°C to +85°C
- Weight: Approx. 0.339 kg
- Dimensions: 35mm x 147mm x 129mm (WxHxD)
- Standards: CE, UL, RoHS compliant
Warranty & After-Sales
- Factory new units: 12 months warranty
- Refurbished units: 3-6 months warranty
- Technical support for configuration and installation
- Compatibility verification with existing systems
- Commissioning and diagnostics support available
Delivery Time
- Standard delivery: 3-5 working days
- Express shipping available upon request
Why Choose Our Store
- Genuine SIEMENS components
- Global supply network with competitive pricing
- Expertise in industrial automation systems
- Comprehensive technical documentation
- Responsive customer service and support
Applications
- Control of actuators, relays, and digital loads
- Factory control panels and production line systems
- Machine automation setups requiring high reliability
- Industrial environments with demanding control requirements
