Description

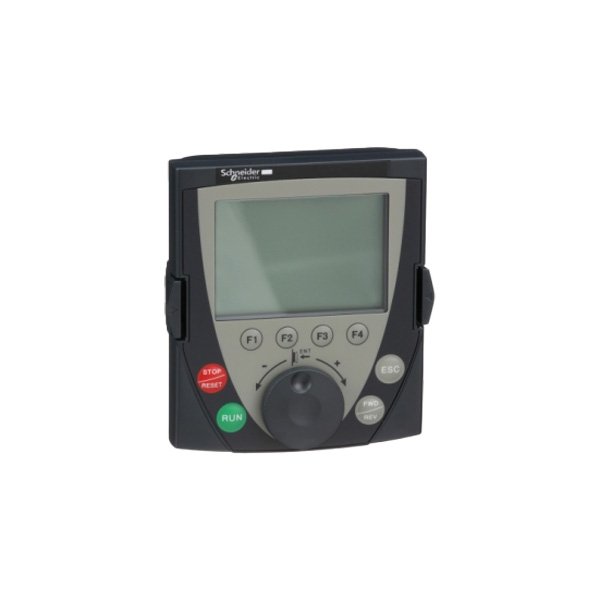

The Schneider Electric VW3A1101 is a Remote Graphic Terminal (RGT) / Keypad for Altivar ATV312, ATV32, ATV630/650 (Machine / Process) and legacy ATV61/71 series drives, allowing you to mount a copy of the drive’s local HMI display/keypad remotely on a door or panel (up to 3 m / 5 m cable — depends on cable part) while keeping the drive inside the enclosure. It duplicates the drive’s local 7-segment / graphic LCD and function keys, enabling parameter viewing/editing, start/stop/jog, and fault reset from the outside of the panel — no separate power or communication wiring needed (powered from drive via dedicated RJ45/round connector cable).
Related accessories:
- VW3A1006 → Basic remote keypad (LED, no graphic — for ATV312/32 smaller)
- VW3A1102 → Graphic terminal (same as VW3A1101) — sometimes regional code or language variant
- VW3A1104R30 → VW3A1101 + 3 m cable (or 30 cm — “R30” = 30 cm / “R50” = 5 m) pre-assembled
- VW3A1111 / VW3A1112 → Graphic terminal for newer ATV600/900 series (Physically similar; confirm drive compatibility — ATV600 uses VW3A1111/12; ATV312/32/61/71 uses VW3A1101/02)
Key Features
- Graphic Display: Shows parameter names, values, fault codes, and menus (multi-language — English/German/French/Spanish/Italian etc.).
- Remote Mounting: Flush-mount in 22.5 mm or 45 mm cutout (depending on drive generation) — IP54 front face with gasket.
- Cable Connected: Powered via drive-specific RJ45-style or round connector (cable: VW3A812xx for ATV312/32; VW3A830xx for ATV630/61 — check manual).
- Functions: Start / Stop / Jog, Reset Fault, Navigate Menus, Modify Parameters (same as local keypad).
- Country of Origin: France / Indonesia (Schneider Global)
Model & Compatibility Table
Model | Description | Compatible Drive Families | Notes |
|---|---|---|---|
VW3A1101 | Remote Graphic Terminal (RGT) | ATV312, ATV32, ATV61, ATV71 (also ATV630/650 with correct cable) | Most common RGT for small-mid Altivar |
VW3A1102 | Remote Graphic Terminal (regional/language var.) | Same as VW3A1101 | Electrically identical; label language may differ |
VW3A1006 | Remote Basic Keypad (LED 7-seg, no graphics) | ATV312, ATV32 (some ATV12) | Lower cost; no graphic menu browsing |
VW3A1104R30 | VW3A1101 + 30 cm cable (pre-bundled) | Same as VW3A1101 | “R30″=0.3m; “R50″=5m cable versions exist |
VW3A1111 / VW3A1112 | Graphic Terminal for ATV600 / ATV900 series | Altivar Process ATV630/650/930/950 | NOT interchangeable with ATV312/61 — different connector/protocol |
⚠️ Critical:
Technical Specifications (VW3A1101 Remote Graphic Terminal)
Parameter | Specification |
|---|---|
Model / Order Code | VW3A1101 (Schneider Electric — Altivar Remote Graphic Terminal) |
Compatible Drives | Altivar 312, Altivar 32, Altivar 61, Altivar 71 (also ATV630/650 with VW3A830xx cable) |
Display | Graphic LCD (128 × 64 px) — shows parameter names, values, bar graphs, fault text |
Keys | 8 function keys (Menu ↑↓, Enter, Esc, Run, Stop/Reset, Jog, Mode) — mirrors local drive keypad |
Language | Multi-language (EN/FR/DE/ES/IT etc. — selectable in drive menu) |
Connection to Drive | Dedicated RJ45-style or round connector (via VW3A812xx or VW3A830xx cable — not Ethernet) |
Max. Cable Length | 3 m std. (VW3A81203); 5 m (VW3A81205) — up to 10 m on ATV61/71 with proper cable |
Front Protection | IP54 (with mounting gasket) |
Mounting | Flush mount — cutout 45 mm × 68 mm (refer to drawing) |
Power Source | Supplied from drive via connection cable (no separate PSU) |
Operating Temp. | 0 °C to +50 °C |
Dimensions (Bezel W×H) | ~ 53 mm × 76 mm (bezel); depth behind panel ~ 35 mm |
Weight | ~ 0.12 kg |
Standards | CE, UL, RoHS |
Warranty & After-Sales
- Factory new units: 12 months warranty
- Refurbished units: 3-6 months warranty
- Technical support for:
- Drive-family ↔ terminal compatibility confirmation (ATV312 vs ATV600!)
- Correct cable selection (VW3A81203 / VW3A83003 etc.)
- Mounting cutout dimensions & gasket installation
- Menu navigation tips (quick-access to motor params, fault log)
- Cross-reference if you need the plain LED keypad (VW3A1006) instead
Delivery Time
- Standard delivery: 3-5 working days (stock items)
- Express shipping available upon request
Why Choose Our Store
- Genuine Schneider Electric Altivar accessories — not third-party generic keypads
- Global supply network with competitive pricing
- Expertise in Altivar ATV312/32/61/71/630 commissioning & HMI options
- Comprehensive technical documentation (cutout drawing, cable part number cross-ref, quick-start guide)
- Responsive customer service and support
Applications
- Panel Door Mounting: View/change Altivar drive parameters without opening enclosure.
- Machine OEM: Provide operator access to start/stop & basic setup while drive stays in main panel.
- Retrofit: Add remote HMI to existing Altivar installation lacking local access.
- Fault Diagnosis: Read fault codes & reset from outside the cabinet.
