Description

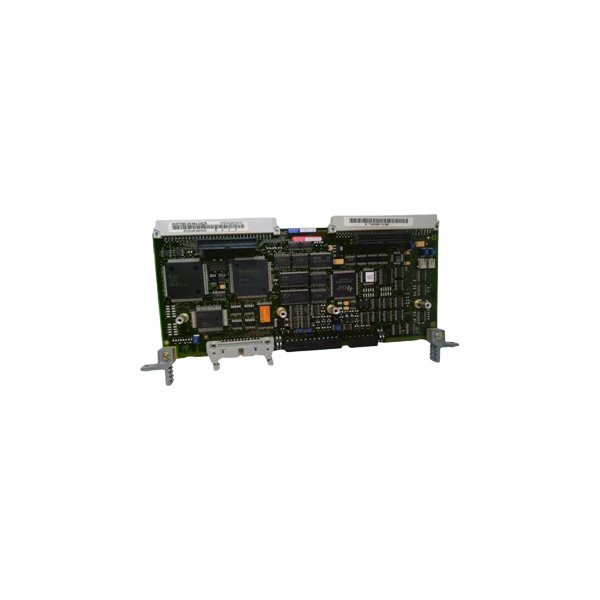

The Siemens 6SE7090-0XX84-0AD5 is a Closed-loop and Control Unit (CUR) designed for the SIMOVERT MASTERDRIVES MC (Motion Control) and VC (Vector Control) series. This compact control unit forms the core of the drive system, performing essential functions such as closed-loop control, sequencing, monitoring, and communication. It is designed to be installed in a control cabinet (IP20) and requires separate power and control modules for operation. The “0AD5” variant typically includes specific firmware and functionality tailored for certain applications.
Key Features
- Control Unit (CUR) for MASTERDRIVES MC/VC series
- Function: Closed-loop control, sequencing, monitoring, communication
- Installation: Control cabinet (IP20)
- Core Component: Requires separate power and control modules
- Control Cabinet Type: Cabinet-built
- Country of Origin: Germany
Technical Specifications
Parameter | Specification |
|---|---|
Product Type | Closed-loop and Control Unit (CUR) |
Compatible Series | SIMOVERT MASTERDRIVES MC, VC |
Enclosure | IP20 (for cabinet installation) |
Communication | PROFIBUS DP (typical for this series) |
Dimensions | Standard Control Unit dimensions |
Weight | Approx. 2.0 kg (for reference) |
Operating Temperature | 0°C to +45°C (typical) |
Supply Voltage | 24V DC (control voltage) |
Protection Features | Overcurrent, Overvoltage, Thermal, Motor overtemperature |
Warranty & After-Sales
- Factory new units: 12 months warranty
- Refurbished units: 3-6 months warranty
- Technical support for configuration and installation
- Wiring and mounting assistance
- Compatibility verification with MASTERDRIVES system
- Commissioning and diagnostics support available
Delivery Time
- Standard delivery: 3-5 working days
- Express shipping available upon request
Why Choose Our Store
- Genuine Siemens components
- Global supply network with competitive pricing
- Expertise in industrial automation systems
- Comprehensive technical documentation
- Responsive customer service and support
Applications
- High-performance drives for machine tools
- Extruder drives in plastics industry
- Centrifuge drives
- Test stand drives
- Winders and unwinders in paper/foil processing
- High-dynamic positioning systems
