Description

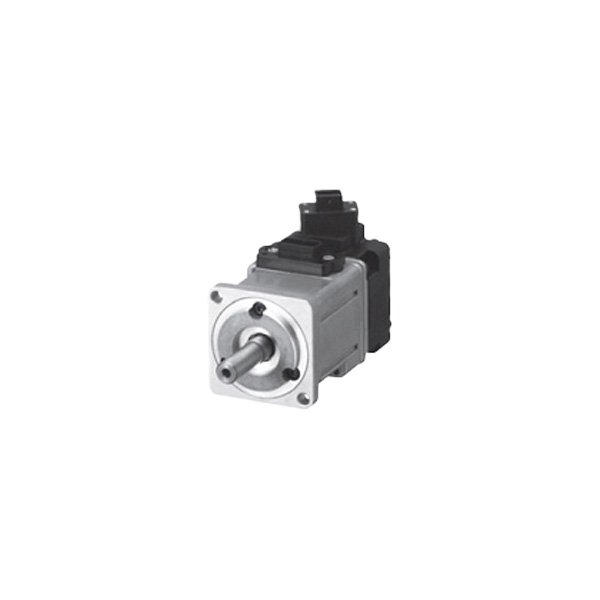

The R88M-K20030H-S2-Z is a high-performance AC servo motor from Omron’s Accurax G5 series. This motor is designed for precise motion control in industrial automation applications. With a compact square flange design (60mm x 60mm), it delivers a rated power of 200W and a rated speed of 3000 RPM. It features an incremental encoder for accurate position feedback and is rated for 230VAC operation. This model is equipped with a keyway on the shaft and is designed for high-speed, high-torque applications.
Key Features
- Motor Type: AC Servo Motor (Square Flange)
- Rated Power: 200W
- Rated Speed: 3000 RPM
- Rated Voltage: 230VAC
- Encoder Type: Incremental (20-bit resolution typical)
- Shaft Feature: With Key
- Frame Size: 60mm x 60mm
- Connection: Connector type (M-type connector)
- Country of Origin: Japan / Republic of Korea
Technical Specifications
Parameter | Specification |
|---|---|
Supply Voltage | 230VAC |
Rated Torque | 0.64 N·m (640 mNm) |
Max. Momentary Torque | 1.91 N·m (1910 mNm) |
Rated Current | 1.6A |
Rotor Inertia | 0.42 x 10⁻⁴ kg·m² |
Weight | Approx. 1.7 kg |
Insulation Class | Class B |
Protection Class | IP65 (Shaft through part: IP20) |
Operating Temperature | 0°C ~ 40°C (without freezing) |
Storage Temperature | -15°C ~ 70°C (without freezing) |
Vibration Resistance | 4.9 m/s² |
Shaft Diameter | 11mm |
Shaft Length | 30mm |
Mounting Hole Spacing | 70mm |
Warranty & After-Sales
- Factory new units: 12 months warranty
- Refurbished units: 3-6 months warranty
- Technical support for configuration and installation
- Wiring and mounting assistance
- Compatibility verification with Omron R88D-K series servo drives
- Commissioning and diagnostics support available
Delivery Time
- Standard delivery: 3-5 working days (In Stock)
- Express shipping available upon request
Why Choose Our Store
- Genuine Omron components (Original in Stock)
- Global supply network with competitive pricing
- Expertise in industrial automation systems
- Comprehensive technical documentation
- Responsive customer service and support
Applications
- High-speed pick-and-place machinery
- Packaging machinery and labeling systems
- Semiconductor manufacturing equipment
- Robotics and assembly automation
- CNC machinery and metalworking equipment
