Description

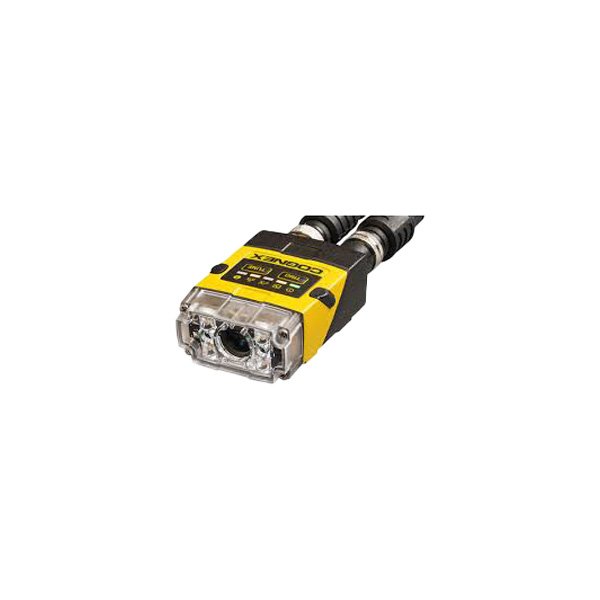

The Cognex DMR-262Q-0120 is a high-performance, fixed-mount barcode reader from the DataMan 262 series. Engineered for industrial-grade reliability, it utilizes a 1.2-megapixel sensor and integrated red ring lighting to deliver exceptional read rates on 1D and 2D codes, even on challenging surfaces. Featuring Cognex’s proprietary Hotbars II decoding algorithm, it excels in reading damaged, poorly printed, or distorted codes. With a compact, rugged IP65-rated housing, a GigE Vision interface, and a 12mm lens fixed at a 120mm working distance, it is an ideal solution for high-speed automation and traceability applications.
Key Features
- Fixed-Mount Barcode Reader (DataMan 262 Series)
- Image Sensor: 1.2 MP Global Shutter
- Lighting: Integrated red ring light
- Lens: 12mm focal length, fixed focus
- Working Distance: 120 mm
- Field of View (FOV): 100 mm x 60 mm
- Decoding: 1D, 2D, and DPM codes
- Communication: GigE Vision, Ethernet/IP, PROFINET, Serial
- Protection Rating: IP65
- Country of Origin: USA
Technical Specifications
- Sensor: 1.2 MP CMOS
- Resolution: 1280 x 800
- Lens: 12mm, C-mount
- Field of View: 100 mm x 60 mm at WD
- Working Distance: 120 mm
- Depth of Field: 60 mm
- Light Source: Red LED Ring Light
- Interface: GigE Vision PoE, Discrete I/O
- Connector: M12 8-pin
- Supply Voltage: 12-24 V DC via PoE or I/O
- Operating Temperature: 0°C to +50°C
- Housing Material: Metal
- Dimensions: 65 mm x 65 mm x 42.2 mm
- Weight: approx. 300 g
- Protection Class: IP65
- Standards: CE, UL, RoHS, FCC compliant
Warranty & After-Sales
- Factory new units: 12 months warranty
- Refurbished units: 3-6 months warranty
- Technical support for configuration, mounting, and lighting
- Software setup assistance (Cognex VisionPro, In-Sight Explorer)
- Compatibility verification with existing PLC/PC systems
- Commissioning and diagnostics support available
Delivery Time
- Standard delivery: 3-5 working days
- Express shipping available upon request
Why Choose Our Store
- Genuine Cognex components
- Global supply network with competitive pricing
- Expertise in industrial vision and ID readers
- Comprehensive technical documentation and software support
- Responsive customer service and support
Applications
- Barcode reading in electronics manufacturing
- Traceability and serialization in automotive parts
- Package sorting and tracking in logistics
- Pharmaceutical product verification
- Assembly verification and error-proofing
