Description

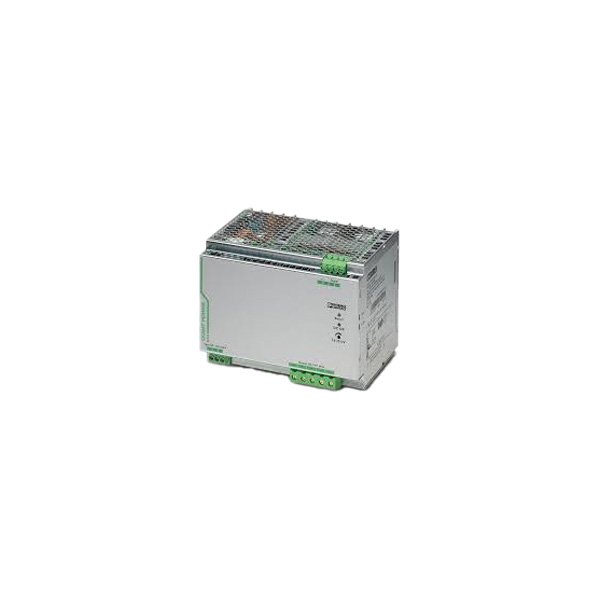

The Phoenix Contact QUINT-PS/1AC/24DC/20 (Order No. 2866777) is a high-performance DIN-rail switch-mode power supply that converts a wide-range single-phase AC input (85–264 V AC) into a stable 24 V DC / 20 A (480 W) output. Part of the QUINT POWER family, it features NFC (Near Field Communication) configuration, integrated signal contact (DC OK / overload), and a robust metal housing for demanding industrial environments. It is ideal for powering PLCs, I/O modules, HMIs, sensors, and actuators in process automation, machine building, and infrastructure applications.
Key Features
- Output: 24 V DC, 20 A (480 W)
- Input: 1-phase 85–264 V AC / 90–350 V DC
- NFC Technology: Configure output voltage, signaling thresholds, and read operating data via NFC smartphone/app (QUINT NEO models) — standard QUINT-PS also has potentiometer adjust & signal contact
- Signaling: DC OK relay contact + LED indication
- Protective Functions: Short-circuit, overload, over-temperature, no-load proof
- Housing: Rugged metal (AL), IP20, screw/spring-cage terminals
- Country of Origin: Germany
Technical Specifications
Parameter | Specification |
|---|---|
Model / Order Code | QUINT-PS/1AC/24DC/20 — 2866777 |
Input Voltage Range | 85–264 V AC (50/60 Hz) / 90–350 V DC |
Output Voltage | 24 V DC (adjustable ±5% via front potentiometer) |
Rated Output Current | 20 A |
Rated Power | 480 W |
Efficiency | Typ. 93% |
* Power Loss (no load / full load) | ~ 3 W / ~ 35 W |
Hold-up Time | > 20 ms @ nominal load |
Derating | Starts above +45 °C (linear to 60 °C) |
Signal Contact (DC OK) | 1 changeover contact, 60 V / 0.5 A max. |
Connection Type | Screw terminals (input & output) |
Mounting | 35 mm DIN rail (EN 60715) |
Dimensions (W×H×D) | 70 mm × 130 mm × 125 mm |
Weight | Approx. 1.25 kg |
Standards | CE, UL 508, cULus, GL, ABS, RoHS, DNV |
💡 Note: The QUINT-PS series also has a QUINT-PS/3AC/24DC/20 version for 3-phase input — ensure you select the /1AC/ version for single-phase supply as listed here.
Warranty & After-Sales
- Factory new units: 12 months warranty
- Refurbished units: 3-6 months warranty
- Technical support for output voltage trim, parallel/series operation, and signal contact wiring
- Buffer capacitor / UPS (QUINT-BUFFER) matching advice for ride-through requirements
- Compatibility check with S7-1200/1500, S7-300, ET 200 I/O, and other 24V DC loads
Delivery Time
- Standard delivery: 3-5 working days (stock items)
- Express shipping available upon request
Why Choose Our Store
- Genuine Phoenix Contact components
- Global supply network with competitive pricing
- Expertise in QUINT / TRIO / STEP power supply selection & system design
- Comprehensive technical documentation (datasheets, dimension drawings, approvals list)
- Responsive customer service and support
Applications
- PLC / DCS system power (Siemens S7, Rockwell, Beckhoff, etc.)
- I/O module banks & remote I/O stations (ET 200, Point I/O, etc.)
- HMI / IPC / Panel PC power
- Sensor & actuator supply on machines
- Process skids, water treatment, and building automation
