Description

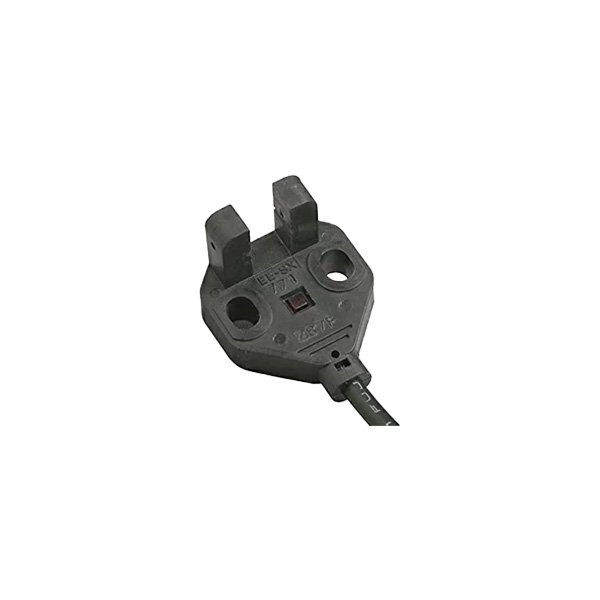

The Omron EE-SX771A is a high-reliability transmissive (slot-type) photomicrosensor from the EE-SX77 / EE-SX87 series, featuring a slim, pre-wired cable for easy integration into space-constrained equipment. It uses an infrared LED and phototransistor pair in a U-shaped housing to detect the passage of objects (e.g., paper, tabs, coded discs) passing through the 5 mm slot. With a built-in amplifier and NPN open-collector output, it is widely used for position sensing, counting, and home-position detection in office equipment, PCB handlers, and industrial machines.
Key Features
- Sensor Type: Transmissive (Slot-type / Fork-type) Photomicrosensor
- Slot Width: 5 mm
- Output: NPN Open Collector (L-on dark / D-on light — model dependent; EE-SX771A = Dark-ON)
- Light Source: Infrared LED (940 nm)
- Connection: 1 m slim vinyl cable (pre-wired)
- Housing Material: PBT (polybutylene terephthalate)
- Mounting: PCB mount or panel mount via mounting holes
- Country of Origin: Japan
Technical Specifications
Parameter | Specification |
|---|---|
Model | EE-SX771A (EE-SX77 series) |
Detection Method | Transmissive (Interrupter type) |
Slot Width | 5 mm |
Output Type | NPN Open Collector, Dark-ON (Lights when beam blocked) |
Operating Voltage (Vcc) | 5–24 V DC |
Max. Output Current | 50 mA |
Current Consumption | ≤ 12 mA (Emitter + Detector) |
Response Time | ≤ 1 ms |
Hysteresis | 1.0 V max (typical) |
Operating Temp. | -25 °C to +70 °C (no condensation/freezing) |
Cable Length / Type | 1 m, Ø2.8 mm slim vinyl cabtyre (3 wires: +V, 0V, OUT) |
Dimensions (H×W×D) | 21.6 mm × 10.6 mm × 13.2 mm (approx., excluding leads) |
Weight | Approx. 15 g |
Standards | CE, UL recognized component, RoHS compliant |
💡 Related Models:
Warranty & After-Sales
- Factory new units: 12 months warranty
- Refurbished units: 3-6 months warranty (where offered)
- Technical support for wiring confirmation (pinout: Brown=+V, Blue=0V, Black=Output typical)
- Cross-reference assistance vs. Panasonic PM-K, Sharp GP1S series
- Sample connection diagram provided
Delivery Time
- Standard delivery: 3-5 working days (stock items)
- Express shipping available upon request
Why Choose Our Store
- Genuine Omron Automation components
- Global supply network with competitive pricing
- Expertise in EE-SX / E3Z / E3T sensor families
- Comprehensive technical documentation (datasheets, dimensional drawings)
- Responsive customer service and support
Applications
- Paper / label edge detection in printers & plotters
- Rotary encoder disc interruption (position/home sensing)
- PCB board presence detection in handlers
- Small-part counting on assembly lines
- Door/cover interlock sensing in compact machinery
Reviews
There are no reviews yet.
