Description

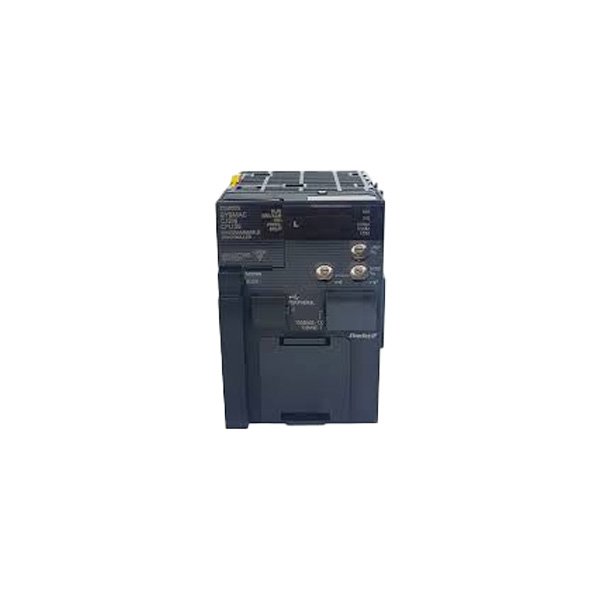

The Omron CJ2M-CPU35 is a high-performance modular CPU unit from the CJ2M series, designed for medium to large-scale automation systems requiring extensive I/O capacity and network connectivity. This model features a 256K-word user program memory and supports EtherNet/IP for seamless integration into modern industrial networks. With its powerful processing capabilities and compatibility with the extensive CJ-series I/O modules, it serves as a robust control platform for complex applications.
Key Features
- CPU Type: High-performance modular PLC CPU
- Program Memory: 256K words (user program area)
- I/O Capacity: Supports up to 1,280 points (with expansion)
- Built-in Ports: Ethernet (EtherNet/IP), Serial (RS-232C/RS-422A/RS-485)
- Data Memory: 512K words (DM: 32K words, EM: 480K words)
- Instruction Set: 1,400+ instructions including floating-point and trigonometric functions
- Task Programming: Supports 288 cyclic tasks and 32 interrupt tasks
- Network Compatibility: EtherNet/IP, DeviceNet, CompoNet, PROFIBUS-DP (via options)
- Expansion Capability: Connects to CJ-series basic I/O units, CPU bus units, and special I/O units
- Country of Origin: Omron Standard (China/Japan)
Technical Specifications
Parameter | Specification |
|---|---|
Model Number | CJ2M-CPU35 |
Series | CJ2M (modular PLC series) |
Program Memory | 256K words (flash memory, battery-less operation) |
Data Memory | DM: 32,768 words, EM: 480K words |
I/O Capacity | Max. 1,280 points (with expansion units) |
Built-in Ethernet | 10/100BASE-TX (EtherNet/IP, FINS/UDP, FTP, email) |
Built-in Serial Port | RS-232C/RS-422A/RS-485 (toolbus, host link, NT link) |
Instruction Set | Basic: 14 types, Applied: 339 types (total 1,400+ instructions) |
Task Support | Cyclic tasks: 288, Interrupt tasks: 32 |
High-Speed Counter | 4 axes (100 kHz single phase / 50 kHz quadrature) |
Pulse Output | 2 axes (100 kHz) |
Power Supply | 24 V DC (wide range 20.4 to 26.4 V DC) |
Power Consumption | 60 W max. |
Operating Temperature | -10°C to +55°C |
Dimensions (W x H x D) | 130 x 90 x 85 mm |
Weight | Approx. 800 g |
Standards | CE, UL, cULus, RoHS compliant |
Warranty & After-Sales
- Factory new units: 12 months warranty
- Technical support for system configuration, network setup, and programming
- Compatibility verification with CJ-series expansion units and communication modules
- Programming assistance for ladder logic, structured text, and network communication
- Documentation: Full datasheets, manuals, and system configuration guides provided
Delivery Time
- Standard delivery: 3-5 working days
- Express shipping available upon request
- Bulk order discounts available
Why Choose Our Store
- Genuine Omron automation components
- Global supply network with competitive pricing
- Expertise in CJ2 series PLC systems and network configurations
- Comprehensive technical documentation and software support (CX-Programmer, CX-One)
- Responsive customer service and after-sales support
Applications
- Factory Automation: Large-scale production line control with extensive I/O
- Process Control: Complex sequence control and data processing
- Material Handling: Warehouse automation and conveyor system control
- Networked Systems: Integration with SCADA, HMI, and MES via EtherNet/IP
- Machine Control: High-speed, high-precision machinery requiring modular expansion
