Description

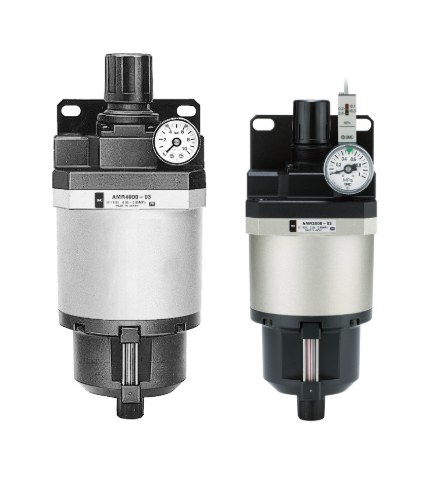

The SMC AMR5100-F04S is a high-performance MR Unit (Regulator with Mist Separator) designed for compressed air treatment in industrial automation. It combines a precision pressure regulator with a 0.3 μm mist separator to remove oil aerosols and particulate contaminants, ensuring clean, stable air for pneumatic systems, CNC machines, and actuators. The NCMB044 series (encompassing variants like -0150, -075, -106, -125, -150, -200 with -0100C/0200 suffixes) refers to modular Filter-Regulator-Lubricator (FRL) units that provide comprehensive air preparation (filtration, pressure regulation, and oil lubrication) in a compact, space-saving design.
Key Features
- Integrated Mist Separation: AMR5100 series removes oil mist (0.3 μm filtration) and regulates pressure in one unit, reducing piping complexity.
- High Flow Capacity: Designed for demanding applications with large air consumption.
- Relieving Type Regulator: Prevents pressure buildup downstream during adjustment.
- Compact FRL Design (NCMB044): Combines filter, regulator, and lubricator for all-in-one air treatment.
- Durable Construction: Aluminum body with polycarbonate bowl (NCMB044) for impact resistance.
Technical Specifications
Parameter | AMR5100-F04S (MR Unit) | NCMB044 Series (FRL Unit) |
|---|---|---|
Series Type | Regulator with Mist Separator | Filter + Regulator + Lubricator (FRL) |
Port Size | 1/2″ (Rc, NPT, or G threads) | Typically 1/4″, 3/8″, or 1/2″ (varies by suffix) |
Filtration Grade | 0.3 μm (oil mist removal) | 5 μm or 25 μm (standard particulate) |
Max. Operating Pressure | 1.0 MPa | 1.0 MPa (150 psi) |
Proof Pressure | 1.5 MPa | 1.5 MPa |
Set Pressure Range | 0.05 – 0.85 MPa | 0.05 – 0.85 MPa |
Rated Flow (ANR) | ~3,500 L/min (at 0.7 MPa inlet) | Varies by model (e.g., 0150, 075, 106, 125, 150, 200) |
Ambient Temperature | -5 °C to +60 °C (no freezing) | 0 °C to 60 °C |
Bowl Material | Aluminum / Safety glass | Polycarbonate (PC) or metal |
Drain Type | Manual or auto-drain (depending on suffix) | Manual or semi-auto drain |
NCMB044 Series Model Decoding
The suffixes in the NCMB044 series indicate specific configurations:
- Flow Capacity: -0150, -075, -106, -125, -150, -200 denote different flow rates and port sizes.
- Drain Option: -0100C typically indicates a specific drain configuration (e.g., manual lever drain), while -0200 may indicate an auto-drain variant.
- Thread Type: Usually Rc (PT) or NPT threads.
Warranty & After-Sales
- New Units: 12 months warranty (original SMC packaging).
- Refurbished Units: 3–6 months warranty (tested & certified).
- Support: Technical assistance for model selection, drain configuration, and pneumatic circuit integration.
Delivery Time
- Standard: 3–5 working days for in-stock items.
- Express: Available upon request (urgent machine downtime situations).
Why Choose Our Store
- Genuine SMC: Direct from authorized stock (not third-party clones).
- Pneumatic Expertise: Familiar with AMR and NCMB series applications in CNC and automation.
- Global Supply: Competitive pricing for single units or bulk OEM orders.
Applications
- CNC Machinery: Mazak, Okuma, and other CNC mills/lathes for spindle air/oil mist separation.
- Factory Automation: Robotic cells, assembly lines, and pneumatic actuator control.
- Packaging Machinery: Ensuring clean, lubricated air for valves and cylinders.
- General Pneumatics: Any compressed air system requiring precise pressure regulation and oil removal.
