Description

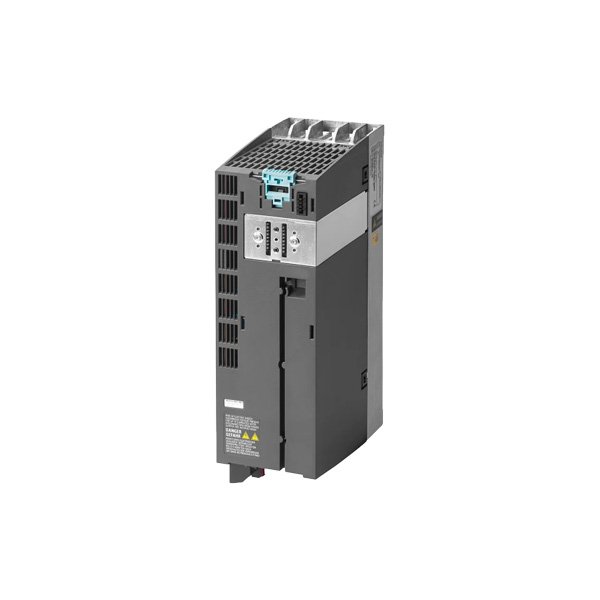

The Siemens SINAMICS PM240-2 series are compact power modules designed for the SINAMICS G120 family of frequency converters. The models 6SL3210-1PE13-2UL1 and 6SL3210-1PE14-3UL1 are unfiltered versions with an integrated braking chopper, making them ideal for applications requiring frequent deceleration or overhauling loads (e.g., cranes, conveyors, centrifuges). These modules operate on a 3-phase 380-480V AC supply and are designed for easy integration into SIMATIC-based automation systems.
Key Features
- Integrated Braking Chopper: Allows connection of an external braking resistor for efficient energy dissipation during rapid deceleration.
- Unfiltered Design: Compact and cost-effective for standard industrial applications (requires external input filter for reduced harmonic emission).
- Wide Voltage Range: 3AC 380-480V +10%/-10%, 47-63 Hz.
- Dual Overload Capability: Configurable for High Overload (HO) or Low Overload (LO) operation.
- Modular System: Requires a separate Control Unit (CU) for operation (e.g., CU250x-2).
- Industrial Robustness: IP20 protection, -10°C to +50°C operating temperature, DIN rail mounting.
Model Comparison & Specifications
Parameter | 6SL3210-1PE13-2UL1 | 6SL3210-1PE14-3UL1 |
|---|---|---|
Frame Size | FSA | FSA |
Low Overload (LO) | 1.1 kW | 1.5 kW |
High Overload (HO) | 0.75 kW | 1.1 kW |
Output Current (LO) | 3.1 A | 5.5 A |
Output Current (HO) | 2.2 A | 3.8 A |
Dimensions (HxWxD) | 196 x 73 x 165 mm | 196 x 73 x 165 mm |
Weight | ~1.38 kg | ~1.38 kg |
Braking Chopper | Integrated | Integrated |
Compatible CU FW | V4.6 and later | V4.6 and later |
Technical Details
- Article Numbers: 6SL3210-1PE13-2UL1, 6SL3210-1PE14-3UL1
- Cooling Method: Internal air cooling (fanless design for FSA frame).
- Overload Cycle: 150% for 57s / 200% for 3s (HO); 110% for 57s / 150% for 3s (LO).
- Standards: CE, UL, cULus, RoHS.
- Safety: Supports Safe Torque Off (STO) via Control Unit.
Warranty & After-Sales
- Factory new units: 12 months warranty.
- Refurbished units: 3-6 months warranty.
- Technical support for CU pairing and STARTER/TIA Portal configuration.
- Braking resistor sizing and selection assistance.
- Commissioning and diagnostics support available.
Delivery Time
- Standard delivery: 3-5 working days.
- Express shipping available upon request.
Why Choose Our Store
- Genuine Siemens industrial automation components.
- Global supply network with competitive pricing.
- Expertise in drive systems and motion control.
- Comprehensive technical documentation (Manual, Datasheet).
- Responsive customer service.
Applications
- Material Handling: Conveyors, hoists, cranes.
- Pump & Fan Control: Variable speed control for energy savings.
- Machine Tools: Spindle drives, indexing tables.
- Packaging Machinery: Wrappers, fillers, labelers.
- Test Benches: Dynamometers, simulators.
