Description

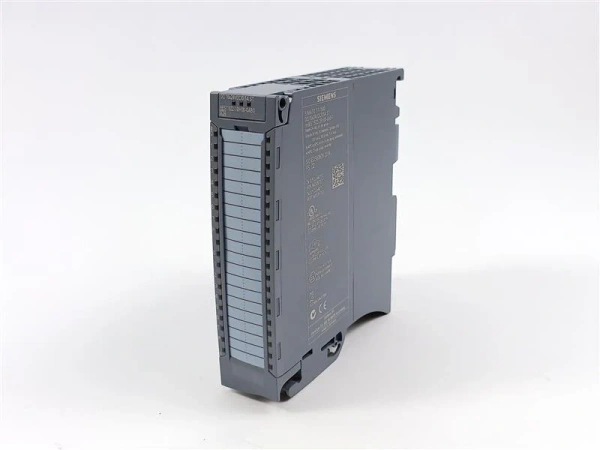

The SIMATIC S7-1500, Digital Output Module 6ES7522-5FH00-0AB0 (DQ 16x24VDC/2A ST) is a powerful transistor-based output module designed for driving high-current DC loads directly. It features 16 channels, each capable of delivering up to 2A of continuous current, allowing it to control devices like contactors, solenoids, or motors without the need for intermediate relays. It is a standard (ST) type module, offering reliable performance for demanding industrial automation tasks.
Key Features
- Digital Output Module for 24V DC loads
- Number of Channels: 16
- Rated Current per Channel: 2A
- Module Type: Standard (ST)
- Diagnostics: Basic module diagnostics
- Output Type: Transistor (PNP)
- Connection: Via front connector
- Protection Rating: IP20
- Operating Temperature: 0°C to +60°C
- Country of Origin: Germany
Technical Specifications
- Number of Digital Outputs: 16
- Output Voltage: 24 V DC
- Rated Output Current (per channel): 2 A
- Short-circuit Protection: Yes (per group)
- Connection Type: Via front connector (ordered separately)
- Module Width: 35 mm
- Power Loss, typ.: 2.0 W
- Operating Temperature: 0°C to +60°C
- Protection Level: IP20
- Weight: Approx. 220 g
- Standards: CE, UL, cULus, RoHS compliant
Warranty & After-Sales
- Factory new units: 12 months warranty
- Refurbished units: 3-6 months warranty
- Technical support for configuration and installation
- Wiring and mounting assistance
- Compatibility verification with existing systems
- Commissioning and diagnostics support available
Delivery Time
- Standard delivery: 3-5 working days
- Express shipping available upon request
Why Choose Our Store
- Genuine Siemens components
- Global supply network with competitive pricing
- Expertise in industrial automation systems
- Comprehensive technical documentation
- Responsive customer service and support
Applications
- Controlling contactors and starters
- Driving high-power solenoids and valves
- Activating indicator lights and alarms
- Automation of conveyor systems and packaging machines
- General machine control
