Description

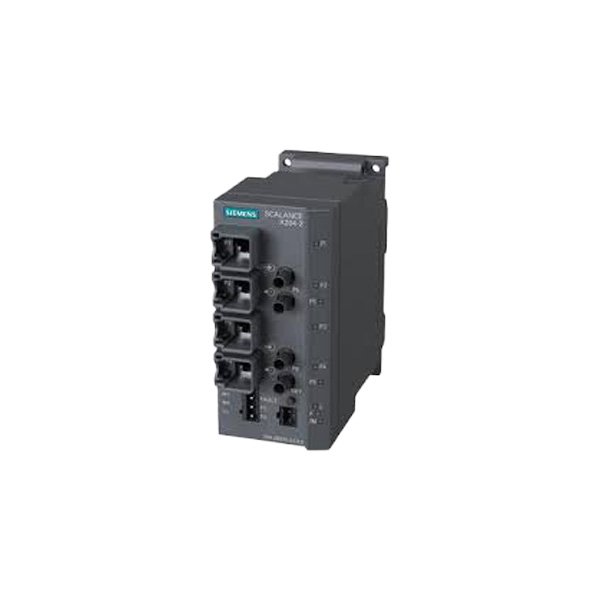

The Siemens SCALANCE X204-2 series comprises a family of robust, managed Industrial Ethernet switches designed for demanding automation networks. This portfolio includes standard models (X204-2), models optimized for real-time Isochronous Real-Time communication (X204-2IRT), and space-saving flat-design variants (XF204-2, XF204). All models feature 4x Fast Ethernet RJ45 ports (10/100 Mbit/s) and are engineered for high reliability. Key features include PROFINET device functionality, rapid media redundancy (HRP/MRP), a wide operating temperature range (-40°C to +60°C), and redundant 24V DC power supply. They are ideal for building resilient network topologies like rings, stars, and lines in harsh industrial environments.
Key Features
- Series: SCALANCE X204-2, X204-2IRT, XF204-2, XF204
- Port Configuration: 4x 10/100 Mbit/s RJ45 ports (XF204/X204IRT) + 2x 100 Mbit/s BFOC fiber ports (X204-2/XF204-2)
- Redundancy Protocols: HRP, MRP (recovery time < 0.3s)
- Management: Web-based, SNMP, PROFINET device
- Real-Time Capability: IRT (Isochronous Real-Time) for X204-2IRT
- Protection Rating: IP20
- Operating Temperature: -40°C to +60°C
- Country of Origin: Germany
Technical Specifications
- Supply Voltage: 18 VDC to 32 VDC (Redundant input)
- Power Consumption: Approx. 2.64 W (DC 24V, XF204) to 5.28 W (DC 24V, XF204-2)
- Ethernet Ports: 4x 10/100Base-TX RJ45, auto-negotiation, auto-crossing
- Fiber Ports (X204-2/XF204-2): 2x 100Base-FX BFOC (ST)
- Redundancy: HRP, MRP, Standby
- Diagnostics: Signaling contact, comprehensive status LEDs
- Configuration Media: C-PLUG (optional)
- Certifications: CE, UL, CULus, ATEX Zone 2, FM, NEBS
- Dimensions (WxHxD):
- X204-2/X204-2IRT: 35 x 126 x 105 mm
- XF204-2/XF204: 35 x 90 x 74 mm
- Weight: Approx. 1.0 kg (X204-2/IRT), Approx. 0.4 kg (XF204)
Warranty & After-Sales
- Factory new units: 12 months warranty
- Refurbished units: 3-6 months warranty
- Technical support for configuration and installation
- Wiring and mounting assistance
- Compatibility verification with existing systems
- Commissioning and diagnostics support available
Delivery Time
- Standard delivery: 3-5 working days
- Express shipping available upon request
Why Choose Our Store
- Genuine Siemens components
- Global supply network with competitive pricing
- Expertise in industrial automation systems
- Comprehensive technical documentation
- Responsive customer service and support
Applications
- Building resilient network infrastructures in Factory Automation
- Real-time motion control networks (IRT)
- Process automation and SCADA systems
- Material handling and conveyor control
- Power generation and distribution
- Railway and transportation systems
