Description

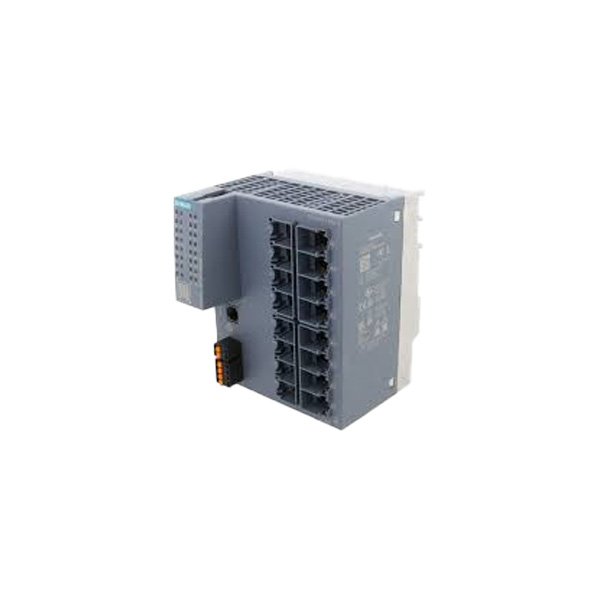

The Siemens 6GK5216-0BA00-2AC2 SCALANCE XC216 is a manageable Layer 2 Industrial Ethernet (IE) Switch designed for robust network infrastructure in harsh industrial environments. It features 16 x 10/100 Mbps RJ45 ports with auto-negotiation and auto-crossing, supporting PROFINET and standard Ethernet protocols. This switch is IEC 62443-4-2certified, ensuring built-in cybersecurity features for protection against unauthorized access and network threats. Its compact design, wide operating temperature range, and industrial-grade components make it ideal for automation, process control, and energy distribution applications.
Key Features
- Port Configuration: 16 x 10/100 Mbps RJ45 ports (auto MDI/MDI-X)
- Layer 2 Functions: VLAN (IEEE 802.1Q), QoS (IEEE 802.1p), IGMP Snooping, Link Aggregation (LACP)
- Management & Security: Web-based management (HTTPS), SNMP, SSH, Port Security, IEC 62443-4-2certified
- Industrial Robustness: Operating temperature -40°C to +70°C, IP30 protection, DIN rail mounting
- Redundancy Protocols: MRP (Media Redundancy Protocol) and MRPD (for PROFINET IRT)
- Power Supply: 24 V DC (redundant power input supported)
- Certifications: CE, UL, cULus, ATEX Zone 2 (optional)
Technical Specifications
- Article Number: 6GK5216-0BA00-2AC2
- Switching Capacity: 3.2 Gbps
- MAC Address Table: 8K entries
- Packet Buffer Memory: 1.5 MB
- Dimensions (W x H x D): 105 mm × 135 mm × 129 mm
- Weight: Approx. 1.2 kg
- Input Voltage: 24 V DC (19.2 V – 28.8 V)
- Power Consumption: Max. 18 W
- Standards Compliance: IEEE 802.3, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p
- MTBF: > 1,000,000 hours (per IEC 61709)
Warranty & After-Sales
- Factory new units: 12 months warranty
- Refurbished units: 3-6 months warranty
- Technical support for configuration (TIA Portal, Web Based Management)
- Network topology and integration assistance
- Cybersecurity configuration guidance (IEC 62443compliance)
- Commissioning and diagnostics support available
Delivery Time
- Standard delivery: 3-5 working days
- Express shipping available upon request
Why Choose Our Store
- Genuine Siemens industrial networking components
- Global supply network with competitive pricing
- Expertise in industrial communication and cybersecurity
- Comprehensive technical documentation (Manual, Datasheet, IEC 62443certificate)
- Responsive customer service and support
Applications
- Factory automation networks (PROFINET)
- Process control systems (chemical, oil & gas)
- Energy distribution and smart grid
- Transportation and infrastructure
- Water and wastewater treatment
