Description

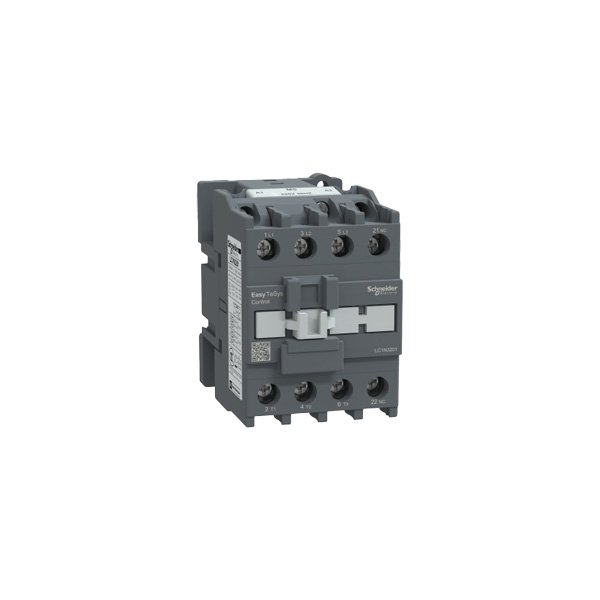

The Schneider Electric LC1N3201M5N is a compact 3-pole AC contactor from the Easy TeSys Control (LC1N) series, designed for motor control and power switching in industrial applications. With a rated operational current of 32 A (AC-3) and a compact footprint, it offers a balance of performance and space efficiency. The “M5N” suffix indicates a 220V AC 50/60 Hz coil, making it suitable for standard industrial control circuits. This contactor is part of a versatile family (LC1N32xx) that supports easy customization with snap-on auxiliary contacts and thermal overload relays.
Key Features
- Compact Design: Space-saving 45mm width for high-density panel layouts.
- Easy TeSys System: Tool-free snap-on accessories (auxiliary contacts, timers, mechanical interlocks).
- Wide Coil Range: Universal coil design supports 50/60 Hz operation.
- High Durability: Mechanical life up to 10 million operations, electrical life up to 1.3 million operations (AC-3).
- Global Standards: Compliant with IEC 60947-4-1, UL 60947-4-1, and CE standards.
- Visual Status: Clear contact position indicator (NO/NC status).
Technical Specifications
Parameter | LC1N3201M5N Specification |
|---|---|
Rated Operational Current (Ie) | 32 A (AC-3, 400V) |
Rated Thermal Current (Ith) | 32 A |
Coil Voltage | 220V AC (50/60 Hz) |
Coil Code | M5N |
Power Consumption | 60 VA (pick-up), 8.5 VA (hold) |
Poles | 3 NO (Main Contacts) |
Auxiliary Contacts | None (standard), supports LADN01/LADN02 add-on |
Mounting | 35mm DIN rail (EN 60715) or panel screw |
Dimensions (W×H×D) | 45mm × 80mm × 88mm (approx.) |
Weight | ~0.38 kg |
LC1N32 Series Coil Voltage Variants (In Stock)
Coil Code | Coil Voltage (AC 50/60Hz) | Example Model |
|---|---|---|
B5N | 24V | LC1N3201B5N |
E5N | 48V | LC1N3201E5N |
F5N | 110V | LC1N3201F5N |
M5N | 220V | LC1N3201M5N |
Q5N | 380V | LC1N3201Q5N |
CC5N | 415V | LC1N3201CC5N |
Warranty & After-Sales
- Factory new units: 12 months warranty
- Refurbished units: 3-6 months warranty
- Technical support for selection, wiring, and accessory configuration
- Compatibility verification with TeSys thermal overload relays (e.g., LRD32)
- Assistance with creating complete motor starter combinations
Delivery Time
- Standard delivery: 3-5 working days
- Express shipping available upon request
Why Choose Our Store
- Genuine Schneider Electric components
- Global supply network with competitive pricing
- Expertise in motor control and automation systems
- Comprehensive technical documentation (datasheets, manuals)
- Responsive customer service and support
Applications
- Motor control centers (MCC) for pumps, fans, compressors
- Conveyor systems and material handling equipment
- Packaging machinery and automated production lines
- HVAC and building automation systems
- Industrial control panels and PLC output modules
