Description

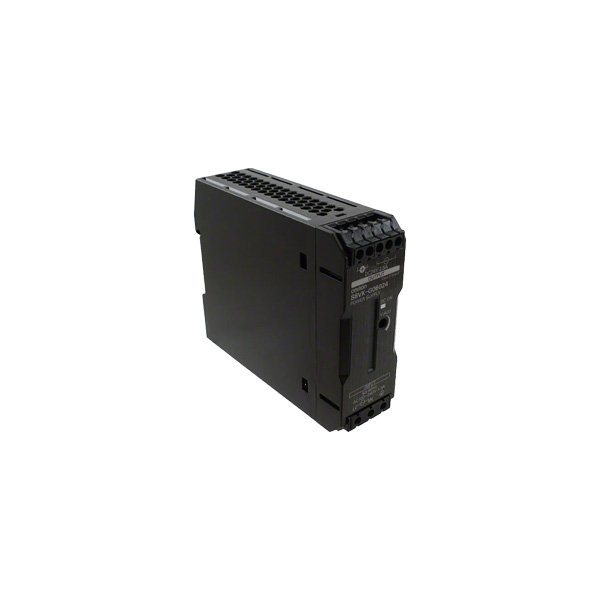

The S8VK-G06024 is a high-performance, compact 60W AC/DC DIN rail switch mode power supply (SMPS) from Omron’s S8VK-G series. Designed for industrial automation applications, it converts a universal AC or DC input into a stable 24V DC output, providing reliable power for PLCs, sensors, relays, and other control system components. Its compact, DIN rail mountable design makes it ideal for space-constrained control cabinets. Featuring a coated PCB for enhanced corrosion and dust resistance, vibration resistance up to 5G, and a Power Boost function, it delivers robust performance in demanding industrial environments.
Key Features
- DIN Rail Mount: Compact design for easy installation on standard DIN rails, optimizing panel space.
- Wide Input Range: Accepts universal AC input (85-264V AC) and DC input (90-350V DC), suitable for global use.
- Stable 24V DC Output: Provides 24V DC at 2.5A, delivering 60W of reliable power for control systems.
- Power Boost Function: Supports 120% of rated current for a limited time, handling inrush currents from loads like contactors or motors.
- High Reliability & Durability: Coated PCB, 5G vibration resistance, and a long design life for harsh industrial conditions.
- Full Protection: Includes overcurrent, overvoltage, and short-circuit protection for enhanced safety.
- High Efficiency: Up to 88% efficiency, reducing heat generation and energy costs.
Technical Specifications
- Model: S8VK-G06024
- Output Rating: 24V DC, 2.5A, 60W
- Input Voltage Range: 85-264V AC, 47-63 Hz / 90-350V DC
- Efficiency: Up to 88% (typical)
- Power Factor (PF): >0.85 (at 200V AC, full load)
- Inrush Current: 45A max. (at 100V AC)
- Leakage Current: 1.0mA max. (at 240V AC)
- Output Voltage Adjustment Range: 22.8V – 26.4V
- Load Regulation: ±1%
- Line Regulation: ±1%
- Ripple & Noise: 75mVp-p max.
- Overcurrent Protection: 110-150% (Auto-recovery)
- Overvoltage Protection: 135-150% (Auto-recovery)
- Operating Temperature: -40°C to +70°C (with derating above 50°C)
- Storage Temperature: -40°C to +85°C
- Cooling Method: Natural convection (fanless)
- Vibration Resistance: 5G (10-500 Hz)
- Protection Class: IP20
- Safety Standards: UL508, CSA C22.2 No. 107.1, EN50178, IEC/EN/UL/CSA 62368-1
- EMC Standards: Complies with EN61204-3, EN55011/EN61000-6-3 (Emissions), EN61000-6-2 (Immunity)
- Mounting: DIN rail TS-35 (EN 60715)
- Terminals: Screw terminals
- Dimensions (W x H x D): 32mm x 90mm x 110mm
- Weight: Approx. 350g
Warranty & After-Sales
- Factory new units: 12 months warranty
- Refurbished units: 3-6 months warranty
- Technical support for configuration and installation
- Wiring and mounting assistance
- Compatibility verification with existing systems
- Commissioning and diagnostics support available
Delivery Time
- Standard delivery: 3-5 working days
- Express shipping available upon request
Why Choose Our Store
- Genuine Omron components
- Global supply network with competitive pricing
- Expertise in industrial automation systems
- Comprehensive technical documentation
- Responsive customer service and support
Applications
- Power supply for PLCs, HMIs, and controllers
- Sensor and actuator power in automation systems
- Control cabinet logic and relay power
- Distributed I/O system power modules
- General-purpose 24V DC power in industrial equipment
