Description

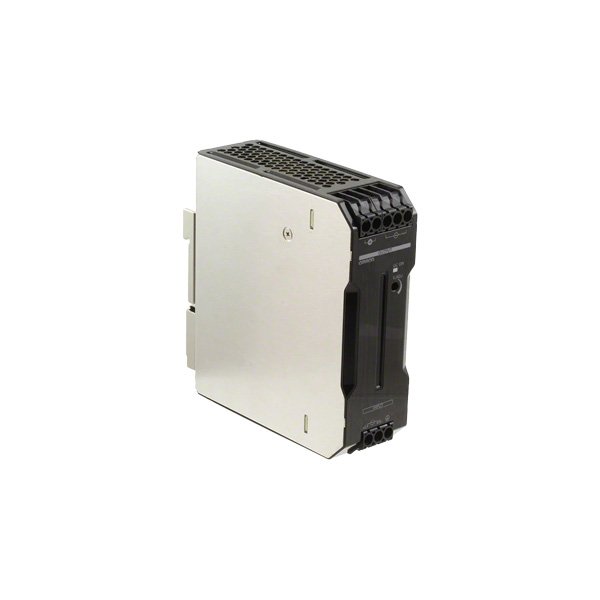

The S8VK-C12024 is a high-performance, compact 120W switch mode power supply (SMPS) from Omron’s S8VK-C series, designed for reliable operation in demanding industrial automation and control applications. It features a wide-range AC input, a stable 24V DC output, and a high efficiency rating, making it an ideal power source for PLCs, servo drives, sensors, and other automation equipment. The fanless design ensures silent operation and high reliability, while the built-in Power Boost function provides extra current for handling inrush loads. Its compact footprint and DIN rail mounting make it easy to install in control panels.
Key Features
- High Power Output: Delivers 120W of continuous power with 5A at 24V DC.
- Wide Input Range: Accepts 85-264V AC input (single-phase) and 90-350V DC input, suitable for global voltage standards.
- High Efficiency: Achieves up to 88% efficiency, reducing heat generation and energy loss.
- Power Boost Function: Provides 120% of rated output current for up to 5 seconds to start motors or capacitive loads.
- Fanless & Silent Design: Natural convection cooling ensures quiet operation and eliminates fan failure points.
- Full Protection: Includes overcurrent, overvoltage, and overtemperature protection for safe and reliable operation.
- DIN Rail Mountable: Compact design for easy installation on standard TS-35/7.5 or TS-35/15 DIN rails.
Technical Specifications
- Model: S8VK-C12024
- Output Rating: 24V DC, 5A, 120W
- Input Voltage Range: 85-264V AC, 47-63 Hz / 90-350V DC
- Efficiency: Typical 88% (at 230V AC, 50% load)
- Power Factor (PF): ≥0.95 (at 200V AC, full load)
- Inrush Current: 60A max. (at 100V AC)
- Leakage Current: 2.0mA max. (at 240V AC)
- Output Voltage Adjustment Range: 22.8V – 26.4V (via potentiometer)
- Ripple & Noise: 150mVp-p max.
- Load Regulation: ±2%
- Line Regulation: ±1%
- Overload Protection: 110-150% (with automatic recovery)
- Overvoltage Protection: 135-150% (with automatic recovery)
- Operating Temperature: -25°C to +60°C (with derating above 50°C)
- Cooling Method: Natural convection (fanless)
- Protection Class: IP20
- Safety Standards: UL508, CSA C22.2 No. 107.1, EN62368-1, EN50178
- EMC Standards: Complies with EN55032-B, EN61000-6-2, EN61000-6-4
- Mounting: DIN rail TS-35/7.5 or TS-35/15
- Terminals: Screw terminals
- Dimensions (W x H x D): 40mm x 125mm x 113mm
- Weight: Approx. 0.5 kg
Warranty & After-Sales
- Factory new units: 12 months warranty
- Refurbished units: 3-6 months warranty
- Technical support for configuration and installation
- Wiring and mounting assistance
- Compatibility verification with existing systems
- Commissioning and diagnostics support available
Delivery Time
- Standard delivery: 3-5 working days
- Express shipping available upon request
Why Choose Our Store
- Genuine Omron components
- Global supply network with competitive pricing
- Expertise in industrial automation systems
- Comprehensive technical documentation
- Responsive customer service and support
Applications
- Power supply for PLCs, industrial PCs, and HMIs
- Servo drives and motion control systems
- Distributed I/O systems and sensor networks
- Robotics and automated machinery
- General industrial control cabinet power
