Description

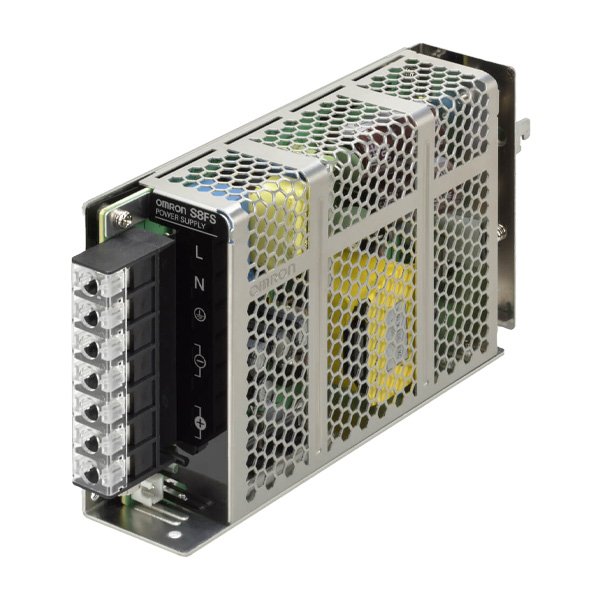

The S8FS-G15024CD S8FS-G Switch Mode Power Supply is a high-performance industrial power supply unit designed for reliable operation in demanding environments. This 150W power supply features a wide input voltage range (85-264VAC) and provides a stable 24V DC output, making it suitable for powering PLCs, sensors, and other control system components. With its robust design, including a metal case for heat dissipation and a high efficiency rating, it ensures long-term reliability. The unit is designed for DIN rail mounting, offering easy installation in control panels, and includes features like overvoltage and overload protection to safeguard connected equipment.
Key Features
- Power Supply Type: Switch Mode Power Supply (SMPS)
- Rated Power: 150W
- Output Voltage: 24V DC
- Output Current: 6.5A
- Input Voltage Range: 85-264V AC (Single Phase) / 80-370V DC
- Mounting: DIN Rail Mount
- Connection Type: Screw Terminal Block
- Efficiency: Up to 90% (at 230V AC)
- Protection Features: Overload Protection, Overvoltage Protection
- Operating Temperature: -20°C to +70°C
- Cooling Method: Natural Convection (Fanless)
Technical Specifications
- Supply Voltage: 85-264V AC, 50/60 Hz; 80-370V DC
- Rated Power: 150W
- Output Voltage: 24V DC
- Rated Output Current: 6.5A
- Voltage Adjustment Range: -10% to +15% (with V.adj)
- Ripple & Noise: 100mVp-p max. (100-240V AC input)
- Load Regulation: 1%
- Line Regulation: 0.5%
- Efficiency: 90% (at 230V AC)
- Inrush Current: 14A typ. (100V AC), 28A typ. (200V AC)
- Leakage Current: 0.5mA max. (100V AC), 1mA max. (200V AC)
- Hold Time: 10ms (100V AC), 55ms (200V AC)
- Isolation Resistance: 100MΩ min. (at 500V DC)
- Dielectric Strength: 3,000V AC (Input-Output), 2,000V AC (Input-FG)
- Operating Temperature: -20°C to +70°C (with derating)
- Storage Temperature: -40°C to +85°C
- Ambient Humidity: 20% to 90% RH (non-condensing)
- Altitude: Up to 3,000m
- Vibration Resistance: 10-55Hz, 1.5mm double amplitude
- Shock Resistance: 100m/s², 3 times each direction
- Cooling Method: Natural Convection
- Case Material: Metal
- Mounting: DIN Rail (35mm)
- Terminal Type: Screw Terminal
- Dimensions (WxHxD): 97mm x 177.7mm x 39.2mm
- Weight: Approx. 500g
- Standards: CE, UL, CSA, EN, IEC
Warranty & After-Sales
- Factory new units: 12 months warranty
- Refurbished units: 3-6 months warranty
- Technical support for configuration and installation
- Wiring and mounting assistance
- Compatibility verification with existing systems
- Commissioning and diagnostics support available
Delivery Time
- Standard delivery: 3-5 working days
- Express shipping available upon request
Why Choose Our Store
- Genuine Omron components
- Global supply network with competitive pricing
- Expertise in industrial automation systems
- Comprehensive technical documentation
- Responsive customer service and support
Applications
- Industrial control systems (PLCs, HMIs)
- Factory automation and machinery
- Sensor and actuator power supply
- Building automation systems
- Process control equipment
- Power distribution in control panels
