Description

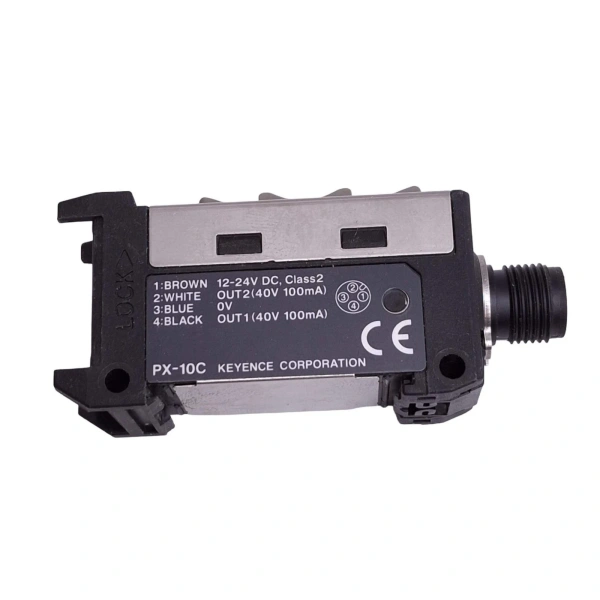

The KEYENCE PX-10CP is a high-speed, ultra-compact fiber amplifier unit designed for precision detection in industrial automation. This model features a Connector Type interface (M8 4-pin) and PNP (Sourcing) output logic, making it ideal for direct connection to PLCs and controllers without the need for bulky wiring. Utilizing advanced digital processing, it achieves a remarkable 1 µs response time, enabling reliable detection of high-speed moving objects. With built-in functions like Auto Sensitivity Setting (AUTO), Manual Adjustment (MANU), and External Input (EXT), it simplifies setup for challenging applications involving transparent, glossy, or small targets. Its narrow 12.5mm width allows for high-density mounting in control panels.
Key Features
- Output Type: PNP (Sourcing, Positive Logic)
- Interface: Connector Type (M8 4-pin, pre-wired cable not required)
- Response Speed: 1 µs (Ultra-High Speed)
- Detection Modes: Light ON (L-ON) / Dark ON (D-ON)
- Setting Functions: AUTO (Auto Sensitivity), MANU (Manual), EXT (External Input)
- Timer Functions: ON Delay / OFF Delay (0 to 999 ms)
- Display: 7-segment LED for value/status
- Protection: Reverse Polarity Protection, Output Short-Circuit Protection
- Country of Origin: Japan
Technical Specifications
- Model: PX-10CP
- Supply Voltage: 12 to 24 VDC (10.2 to 26.4 VDC allowable)
- Current Consumption: 40 mA max
- Output Configuration: PNP Transistor (N.O. 1a)
- Max Load Current: 100 mA
- Residual Voltage: 1 V max (at 100 mA load)
- Control Output: 1 point (PNP)
- Response Time: 1 µs (High Speed mode)
- Housing Material: Plastic (PC)
- Dimensions: 12.5 mm × 40 mm × 62 mm (W×H×D)
- Weight: approx. 30 g
- Protection Class: IP50 (Amplifier body; connector side requires care)
- Operating Temperature: -25°C to +55°C (no freezing, no condensation)
- Standards: CE, UL, RoHS compliant
Warranty & After-Sales
- Factory new units: 12 months warranty (KEYENCE original)
- Refurbished units: 3-6 months warranty
- Technical support for fiber unit selection (e.g., FU-7F, FU-67F)
- Wiring assistance (Brown: +V, Blue: 0V, Black: Output, White: Control)
- Diagnostics support for sensitivity drift or noise issues
Delivery Time
- Standard delivery: 3-5 working days
- Express shipping available upon request
Why Choose Our Store
- 100% Genuine KEYENCE components with original packaging
- Expertise in fiber optic sensor applications (micro-detection, high-speed)
- Comprehensive technical documentation (manual, datasheet)
- Responsive customer service and support
Applications
- Detection of micro-electronic components (chips, pins)
- High-speed counting on packaging lines (pills, capsules)
- Transparent bottle cap detection in filling machines
- Precision positioning in semiconductor manufacturing
- Replacement for Omron E3X-DA-N or similar high-speed amplifiers
