Description

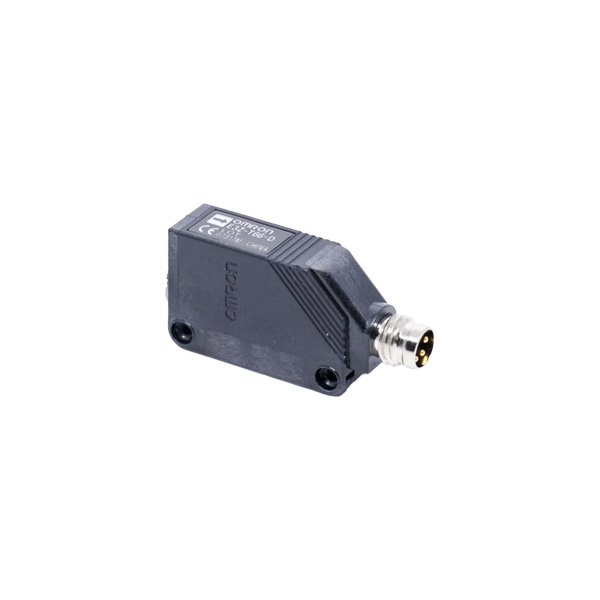

The OMRON E3Z-T66 is a compact, high-performance photoelectric sensor featuring a built-in amplifier. Designed for industrial automation, this sensor offers long-distance detection (up to 15 m for through-beam models) with superior noise immunity. Its square-type housing and M8 connector design provide easy installation and reliable performance in harsh environments. The sensor includes advanced features such as Light-ON/Dark-ON operation selection and comprehensive protection circuits.
Key Features
- Series: E3Z Series (Compact Photoelectric Sensor)
- Type: Photoelectric Sensor with Built-in Amplifier
- Shape: Square Type
- Sensing Method: Through-beam (Emitter/Receiver Pair)
- Sensing Distance: 15 m (Through-beam)
- Light Source: Infrared LED (870 nm)
- Connection: M8 Connector (4-pin)
- Country of Origin: Japan
Technical Specifications
- Power Supply Voltage: 12 to 24 VDC ±10% (Ripple p-p 10% max.)
- Current Consumption: Emitter: 15 mA max.; Receiver: 20 mA max.
- Control Output: NPN Open Collector (100 mA max., 26.4 VDC max.)
- Response Time: 1 ms max. (Operate or Reset)
- Operation Mode: Light-ON / Dark-ON (Switch Selectable)
- Standard Sensing Object: Opaque, 12 mm dia. min.
- Directional Angle: Emitter: 3 to 15°; Receiver: 3 to 15°
- Ambient Temperature Range: -40 to 55 °C (Operating); -40 to 70 °C (Storage)
- Ambient Humidity Range: 35 to 85 % (Operating); 35 to 95 % (Storage)
- Protection Rating: IP67 (IEC Standard)
- Insulation Resistance: 20 MΩ min. (500 VDC)
- Dielectric Strength: 1000 VAC 50/60 Hz for 1 min
- Material: Case: Polybutylene terephthalate (PBT); Lens: Modified Polyarylate
- Weight: Approx. 30 g (Package)
- Dimensions: 10.8 mm × 20 mm × 31 mm (W×H×D)
Protection Circuits
- Output Short-Circuit Protection
- Output Reverse Polarity Protection
- Power Supply Reverse Polarity Protection
Indicator Lights
- Operation Indicator (Orange)
- Stability Indicator (Green)
- Power Indicator (Orange)
Warranty & After-Sales
- Factory new units: 12 months warranty
- Refurbished units: 3-6 months warranty
- Technical support for configuration and installation
- Wiring and mounting assistance
- Compatibility verification with existing systems
- Commissioning and diagnostics support available
Delivery Time
- Standard delivery: 3-5 working days
- Express shipping available upon request
Why Choose Our Store
- Genuine OMRON components
- Global supply network with competitive pricing
- Expertise in industrial automation systems
- Comprehensive technical documentation
- Responsive customer service and support
Applications
- Object detection in automated production lines
- Material handling and conveyor systems
- Packaging machinery
- Robotics and automation
- Quality control and inspection systems
- Machine safety and position monitoring
- Logistics and warehousing systems
