Description

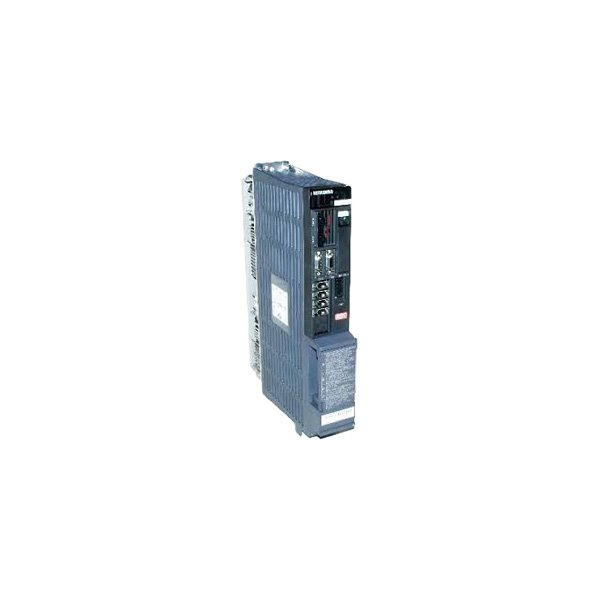

The MITSUBISHI MDS-DH-V2-4040 is a high-performance, dual-axis CNC servo drive unit from the MDS-DH series, designed for precise motion control in modern CNC machining centers. This unit is widely used in MAZAK (Mazatrol) CNC systems and is known for its robust design, high energy efficiency, and durable electronics. It features a compact, forced-air cooled, modular design that supports high-speed and high-torque applications, making it ideal for demanding industrial environments.
Key Features
- Series: MDS-DH Series (High Performance Digital Servo)
- Type: Dual-Axis Servo Drive Unit
- Configuration: 2-Axis (V2)
- Rated Power: 4.0 kW / 4.0 kW (per axis)
- Input Voltage: 380-480V AC (3-phase) / 513-648V DC
- Output Current: 7.3A (per axis)
- Control Method: Digital Servo Control, PWM
- Communication: CNC interface (Mitsubishi)
- Country of Origin: Japan
Technical Specifications
- Rated Input: 380-480V AC, 50/60Hz; or 513-648V DC
- Input Current: 5.8A (DC input rating)
- Rated Output: 7.3A / 7.3A (per axis)
- Applicable Motor Power: 2.0kW / 2.0kW (per axis)
- Control Method: Sine wave PWM control / Current control
- Protection: IP20
- Cooling Method: Forced air cooling (integrated fan)
- Ambient Temperature: 0°C to +55°C (operation)
- Dimensions: Approx. 380mm (H) x 60mm (W) x 200mm (D)
- Weight: Approx. 10-12 kg
- Standards: CE, UL, RoHS compliant
Warranty & After-Sales
- Factory new units: 12 months warranty
- Refurbished units: 3-6 months warranty
- Technical support for configuration and installation
- Wiring and mounting assistance
- Compatibility verification with existing systems
- Commissioning and diagnostics support available
Delivery Time
- Standard delivery: 3-5 working days
- Express shipping available upon request
Why Choose Our Store
- Genuine MITSUBISHI components
- Global supply network with competitive pricing
- Expertise in industrial automation and CNC systems
- Comprehensive technical documentation
- Responsive customer service and support
Applications
- MAZAK (Mazatrol) CNC machine tools
- High-speed machining centers
- CNC lathes and milling machines
- Automated manufacturing cells
- Robotics and high-dynamics motion control
