Description

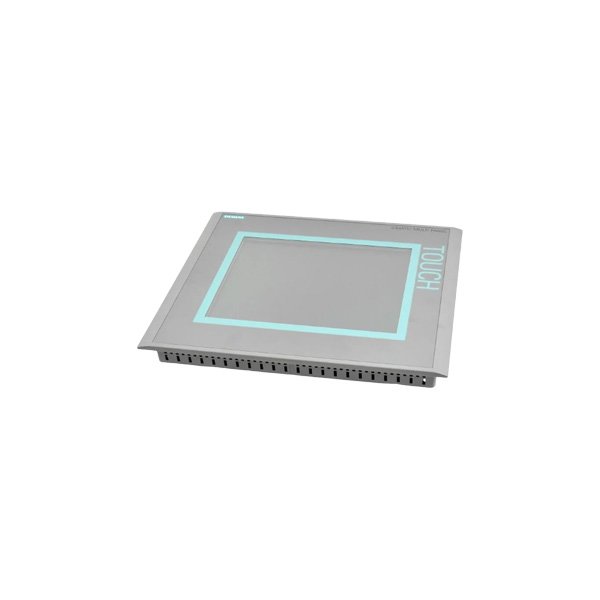

The Siemens 6AV6643-0CD01-1AX1 is a high-performance industrial touch screen from the SIMATIC MP 277 series. This 10.4-inch TFT multi-panel is designed for robust operation in demanding industrial environments. It features a bright color display with 65,536 colors and a resolution of 640×480 pixels, providing clear and intuitive process visualization. The panel supports extensive communication protocols, including PROFIBUS DP and Industrial Ethernet (PROFINET), making it ideal for integration with Siemens S7-300/400 and other automation systems. With its IP65-rated front panel, it is resistant to dust and water, ensuring reliable operation in harsh conditions.
Key Features
- Series: SIMATIC MP 277
- Product Type: 10.4-inch Touch Multi Panel
- Display: 10.4″ TFT, 640×480 pixels, 65,536 colors
- Touch Screen: Resistive (Analog)
- Interfaces: MPI/PROFIBUS DP, Industrial Ethernet (RJ45), 2x USB, SD/MMC Card Slot
- Protection Rating: Front IP65 / Rear IP20
- Country of Origin: Germany
Technical Specifications
- Supply Voltage: 24 V DC (via external power supply)
- Memory: 6 MB for user data (Flash/RAM)
- Communication Protocols: MPI/PROFIBUS DP (up to 12 Mbit/s), Industrial Ethernet (10/100 Mbit/s)
- Operating System: Windows CE 5.0
- Configuration Software: WinCC Flexible 2005 Standard SP1 or higher
- Operating Temperature: 0°C to +50°C
- Dimensions: Approx. 335 mm x 275 mm x 61 mm (W x H x D)
- Weight: Approx. 3.3 kg
- Standards: CE, UL, CSA, FM Class I Div. 2
Warranty & After-Sales
- Factory new units: 12 months warranty
- Refurbished units: 3-6 months warranty
- Technical support for configuration and installation
- Compatibility verification with existing systems
- Commissioning and diagnostics support available
Delivery Time
- Standard delivery: 3-5 working days
- Express shipping available upon request
Why Choose Our Store
- Genuine Siemens components
- Global supply network with competitive pricing
- Expertise in industrial automation systems
- Comprehensive technical documentation
- Responsive customer service and support
Applications
- Medium-sized plants with high program scope requirements
- Complex automation systems with multiple communication networks
- Process control and manufacturing execution systems (MES)
- Material handling and logistics systems
- High-speed packaging and printing machinery
