Description

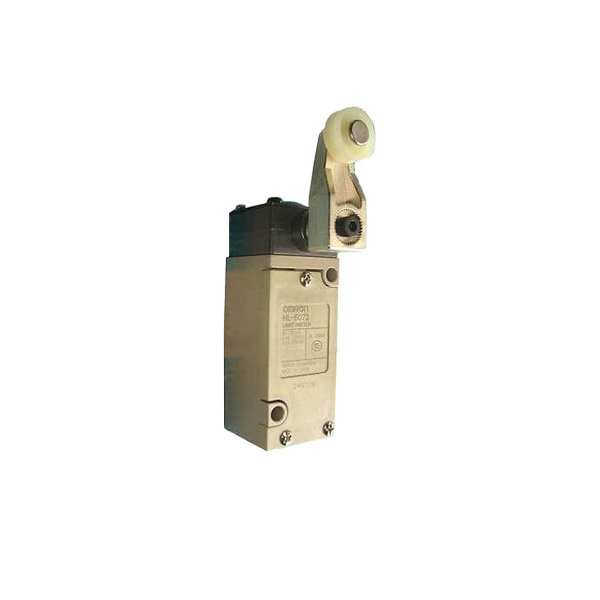

The HL-5072 General Limit Switch is a high-performance mechanical switch designed for industrial automation and control systems. It functions as a position sensor, detecting the presence or absence of an object by physical contact. This switch is built with a robust metal housing and features a slow-action, spring-return mechanism, ensuring reliable operation in demanding environments. With its compact design and high sealing characteristics, it is ideal for applications requiring precise mechanical positioning and safety interlocks in machinery and equipment.
Key Features
- Type: General Purpose Limit Switch
- Action: Slow Action, Spring Return
- Contact Arrangement: 1 Normally Closed (NC) contact
- Housing Material: Metal
- Drive Rod: Roller type
- Suitable for Safety Functions: Yes
- Country of Origin: China (or as specified by manufacturer)
Technical Specifications
- Contact Current Rating (Standard Duty): 6A @ 120V AC
- Contact Current Rating (Light Duty): 3A @ 120V AC
- Switching Function: Slow-action switch
- Degree of Protection (NEMA): 1
- Dimensions (Sensor): Width: 84.1 mm, Length: 117.6 mm, Height: 50.8 mm
- Nominal Travel to Operate Contacts: 8° (Contact Arrangement A)
- Over Travel (Min): 8° (Contact Arrangement B)
- Force to Operate Contacts (Max): 15.58 N
- Ambient Operating Temperature: 0 to 40 °C
- Construction Type: Cuboid
- Housing Type: For slow action, spring return
Warranty & After-Sales
- Factory new units: 12 months warranty
- Refurbished units: 3-6 months warranty
- Technical support for configuration and installation
- Wiring and mounting assistance
- Compatibility verification with existing systems
- Commissioning and diagnostics support available
Delivery Time
- Standard delivery: 3-5 working days
- Express shipping available upon request
Why Choose Our Store
- Genuine components
- Global supply network with competitive pricing
- Expertise in industrial automation systems
- Comprehensive technical documentation
- Responsive customer service and support
Applications
- Object detection in automated production lines
- Material handling and conveyor systems
- Packaging machinery
- Robotics and automation
- Quality control and inspection systems
- Machine safety and position monitoring
- Logistics and warehousing systems
