Description

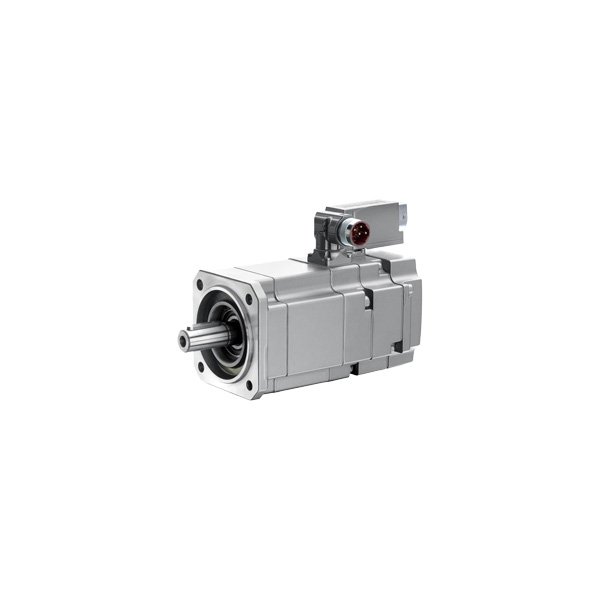

The Siemens 1FK7060-2AF71-1CG0 is a high-performance synchronous motor from the SINAMICS S series, specifically designed for precise and dynamic motion control in demanding industrial automation applications. This compact, permanently excited synchronous motor (PMSM) offers high torque density and excellent dynamic response. It features a single-turn, absolute value encoder (24-bit, sin/cos 1 Vpp) for precise positioning feedback and is designed to operate directly with SINAMICS S120 and S210 drive systems via the DRIVE-CLiQ interface. The motor is naturally cooled (self-ventilated) and is designed for high-performance tasks requiring speed, precision, and reliability. Its robust design makes it suitable for use in machine tools, packaging machines, robotics, and handling systems.
Key Features
- Series: SINAMICS S (SIMOTICS S-1FK7)
- Motor Type: Permanently Excited Synchronous Motor (PMSM)
- Cooling Method: Natural Convection (IC410)
- Encoder: Single-Turn Absolute Value (24-bit, sin/cos 1 Vpp)
- Feedback System: DRIVE-CLiQ Interface
- Protection Rating: IP64
- Country of Origin: Germany
Technical Specifications
- Rated Power (Pn): 1.5 kW
- Rated Torque (M0): 6 Nm (at 100K temp rise)
- Rated Speed (Nn): 3000 rpm
- Maximum Speed (Nmax): 6000 rpm
- Rated Current (In): 6.7 A
- Rotor Inertia (J): 0.0015 kg·m²
- Motor Constant (kT): 0.96 Nm/A
- Power Connection: Plug-in Terminal (3-Pin)
- Holding Brake: None
- Shaft: Smooth Shaft
- Dimensions (L x D): Approx. 178 mm x 120 mm
- Weight: Approx. 7.1 kg
- Thermal Class: Class F (155°C)
- Standards: CE, UL, cULus
Warranty & After-Sales
- Factory new units: 12 months warranty
- Refurbished units: 3-6 months warranty
- Technical support for configuration and installation
- Wiring and mounting assistance
- Compatibility verification with existing systems
- Commissioning and diagnostics support available
Delivery Time
- Standard delivery: 3-5 working days
- Express shipping available upon request
Why Choose Our Store
- Genuine Siemens components
- Global supply network with competitive pricing
- Expertise in industrial automation systems
- Comprehensive technical documentation
- Responsive customer service and support
Applications
- CNC machine tools (e.g., feed drives)
- Robotics and handling systems
- Packaging machinery
- Printing and converting machinery
- Material handling and conveyor systems
- Test and measurement equipment
