Description

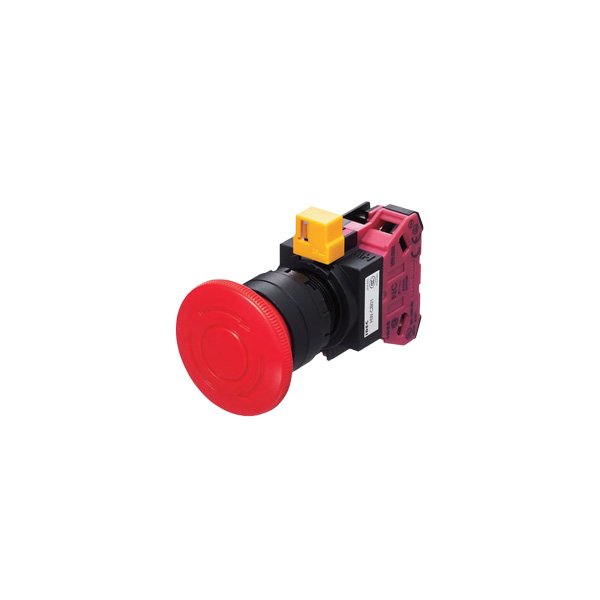

The HW1B-V401R is a high-reliability Emergency Stop Pushbutton Switch designed for industrial safety applications. This switch features a large, mushroom-shaped red actuator for easy identification and immediate action. It is designed to immediately cut off the power supply to potentially hazardous machinery or processes when activated, in accordance with global safety standards. Its robust construction, with contacts rated for high electrical loads, ensures dependable operation in harsh industrial environments. The switch typically includes a manual (twist) or key-operated reset mechanism, preventing accidental reactivation and ensuring controlled restart of equipment.
Key Features
- Emergency Stop Pushbutton Switch
- Actuator Type: Mushroom head, red
- Contact Configuration: 1NC+1NO (Typically)
- Reset Mechanism: Manual (Twist) or Key-operated
- Mounting: Panel mount, 22.5mm hole
- Protection Rating: IP65 / IP67
- Agency Approvals: CE, UL/CSA, CCC
- Operating Temperature: -25°C to +70°C
- Country of Origin: Japan
Technical Specifications
- Rated Operational Current (Ie): 6A @ 250V AC / 0.3A @ 250V DC
- Rated Insulation Voltage (Ui): 600V
- Impulse Withstand Voltage (Uimp): 6kV
- Electrical Endurance (Operations): 100,000
- Mechanical Endurance (Operations): 1,000,000
- Contact Material: Silver alloy
- Actuator Color: Red (RAL 3000)
- Contact Force: Approx. 8N
- Cable Entry: M20 x 1.5 (PG13.5 compatible)
- Protection Class: IP65 (Front)
- Operating Temperature: -25°C to +70°C
- Storage Temperature: -40°C to +80°C
- Standards Compliance: IEC/EN 60947-5-1, -5-5, UL 508, CSA C22.2
Warranty & After-Sales
- Factory new units: 12 months warranty
- Refurbished units: 3-6 months warranty
- Technical support for configuration and installation
- Wiring and mounting assistance
- Compatibility verification with existing systems
- Commissioning and diagnostics support available
Delivery Time
- Standard delivery: 3-5 working days
- Express shipping available upon request
Why Choose Our Store
- Genuine safety-rated components
- Global supply network with competitive pricing
- Expertise in safety system integration
- Comprehensive technical documentation
- Responsive customer service and support
Applications
- Emergency stop on machine tools and CNC machines
- Safety circuits in automated production lines
- Conveyor systems and material handling equipment
- Robotic workcells and automation
- Packaging machinery and presses
- Access control to hazardous areas
