Description

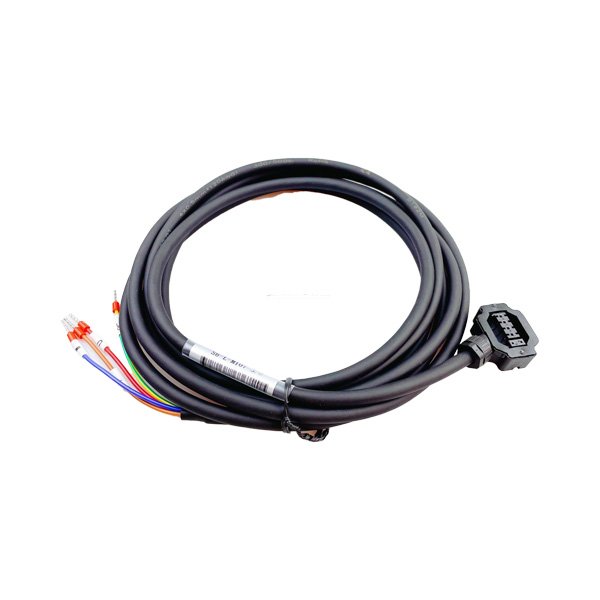

The MITSUBISHI MR-PWS1CBL10M-A2-L is a high-quality, 10-meter long power supply connecting cable designed specifically for the MELSERVO-J4, J3, and JN series of servo motors. This cable is engineered to provide a reliable and robust connection between the servo amplifier and the motor, ensuring stable power transmission in demanding industrial automation environments. The “A2” designation indicates a specific cable outlet direction relative to the motor, and the “L” suffix typically denotes a standard bending life version. Built to withstand industrial conditions, this cable is an essential accessory for extending the reach of your servo system or for installations where the drive and motor are physically separated.
Key Features
- Power Supply Connecting Cable for MELSERVO-J4/J3/JN series servo systems
- Cable Length: 10 meters
- Outlet Direction: A2 (Specific orientation relative to motor)
- Bending Life: Standard (L)
- Connectors: Pre-assembled connector for motor, bare wires for amplifier connection
- Shielding: Built-in shielding for noise immunity
- Robust Construction: Designed for industrial durability
- Country of Origin: Japan (Mitsubishi Electric)
Technical Specifications
- Model: MR-PWS1CBL10M-A2-L
- Type: Servo Motor Power Cable
- Length: 10 m
- Rated Voltage: 600V
- Rated Current: Depends on motor model (compatible with various motor frames)
- Conductor Size: Typically corresponds to motor power rating (e.g., 1.0-1.5 mm² for smaller motors)
- Insulation: Heat-resistant PVC or equivalent
- Shielding: Braided shielding for EMI protection
- Bending Radius: Compliant with standard industrial cable specifications
- Temperature Rating: -10°C to 80°C (Operating)
- Compatible Motors: HF-KP, HF-MP, HF-KN, HG-KR, HG-MR series (and other compatible J4/J3 models)
- Compatible Amplifiers: MR-J4-B, MR-J3-Bseries servo amplifiers
Warranty & After-Sales
- Factory new units: 12 months warranty
- Refurbished units: 3-6 months warranty
- Technical support for cable selection and compatibility
- Installation guidance
- Compatibility verification with your specific Mitsubishi servo motor and amplifier
- System integration support available
Delivery Time
- Standard delivery: 3-5 working days
- Express shipping available upon request
Why Choose Our Store
- Genuine Mitsubishi Electric components
- Global supply network with competitive pricing
- Expertise in motion control and automation systems
- Comprehensive technical documentation
- Responsive customer service and support
Applications
- Machine Tools: Extending connections for spindle and axis drives
- Robotics: Providing power to robot joints where amplifier is in a central cabinet
- Material Handling: Long conveyor systems with distributed drives and motors
- Packaging Machinery: Connecting remote servo drives to actuators
- Semiconductor Manufacturing: Equipment with separated control and motion units
- General Automation: Any application requiring a 10-meter power cable for Mitsubishi servos
