Description

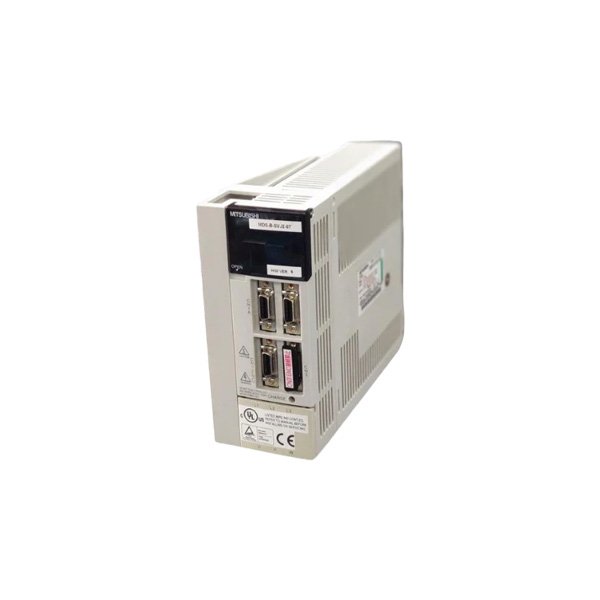

The Mitsubishi MDS-B-SVJ2-07 is a compact, high-performance AC servo drive unit from the MELSERVO MDS-B series. Designed primarily for CNC machine tools and industrial automation, it provides precise control of position, speed, and torque for 200V-class servo motors. This 0.7 kW model is widely used in Mazak, Mitsubishi, and other legacy CNC systems as a reliable axis drive. It features built-in regenerative braking, forced-air cooling, and robust protection mechanisms for continuous operation in demanding environments.
Key Features
- Drive Type: Compact AC Servo Drive (SVJ2 Series)
- Output Power: 0.7 kW (Approx. 700 W)
- Input Voltage: 3-Phase 200–230 V AC (50/60 Hz)
- Output Voltage: 3-Phase 170 V AC (0–360 Hz)
- Cooling Method: Forced Air Cooling (Fan)
- Protection: IP20 (Panel Mounting)
- Country of Origin: Japan
Technical Specifications
- Main Circuit Input: 3-Phase 200–230 V AC, 3.8 A
- Control Circuit Input: 1-Phase 200–230 V AC, 0.3 A
- Rated Output Current: 6.0 A (Peak approx. 18 A)
- Output Frequency: 0–360 Hz
- Control Method: Sine-wave PWM
- Operating Temperature: 0°C to +55°C
- Humidity: 10% to 90% RH (Non-condensing)
- Weight: Approx. 1.5 kg (3.3 lbs)
- Dimensions: Compact, panel-mount design
- Standards: CE, UL, RoHS compliant
Warranty & After-Sales
- Factory new units: 12 months warranty
- Refurbished units: 3-6 months warranty
- Technical support for parameter setup and wiring
- Compatibility verification with HC/HA servo motors
- Commissioning and diagnostics support available
Delivery Time
- Standard delivery: 3-5 working days
- Express shipping available upon request
Why Choose Our Store
- Genuine Mitsubishi Electric components
- Global supply network with competitive pricing
- Expertise in CNC servo systems and legacy drives
- Comprehensive technical documentation (Manuals, CAD)
- Responsive customer service and support
Applications
- CNC Lathe and Milling Machine Axes
- Automated Production Lines
- Industrial Robotics
- Precision Feeding Systems
