Description

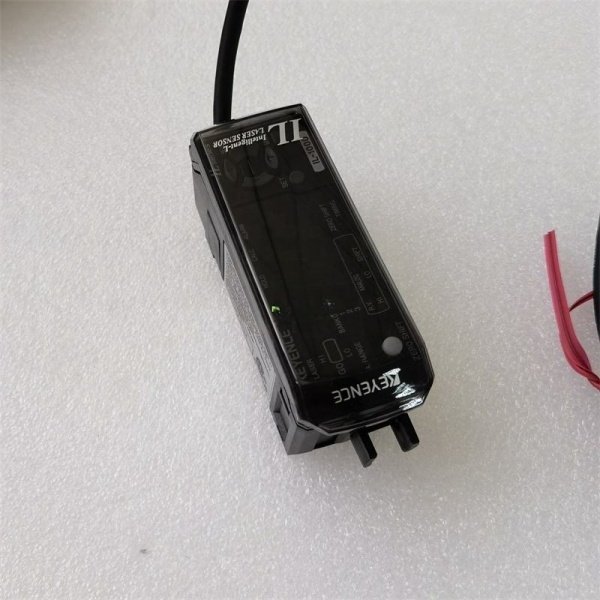

The KEYENCE IL-1000 Amplifier Unit is a DIN-rail mounted signal processing unit designed for industrial automation applications. This amplifier unit serves as the main controller for compatible KEYENCE sensors (such as laser displacement sensors, fiber optic sensors, and photoelectric sensors), providing signal amplification, parameter setting, and output control functions. Featuring a compact DIN-rail mounting design, dual 7-segment digital display for real-time monitoring, and multiple output configurations (NPN/PNP selectable), it offers flexible integration into control panels. With IP20 protection rating, operating temperature range from -10°C to +50°C, and support for various analog/digital outputs, this amplifier unit ensures reliable performance in industrial environments for object detection, position monitoring, and measurement applications.
Key Features
- Amplifier Unit for sensor signal processing
- DIN-rail Mounting for easy panel installation
- Dual 7-segment Display for real-time monitoring
- Output Configuration: NPN/PNP selectable
- Multiple Output Types: Analog voltage/current, digital outputs
- Control Inputs: Multiple external input functions
- Power Supply: 10-30V DC
- Protection Rating: IP20
- Operating Temperature: -10°C to +50°C
- Country of Origin: Japan
Technical Specifications
- Type: DIN-rail mount amplifier unit
- Main/Expansion Unit: Main unit
- Display: Dual 7-segment display (upper: red 5-digit, lower: green 5-digit)
- Display Resolution: 0.01%, 0.1%, 1% (selectable)
- Display Range: -99.999 to +99.999 (selectable)
- Analog Voltage Output: ±5V, 1-5V, 0-5V (selectable)
- Analog Current Output: 4-20mA
- Output Impedance: 100Ω (voltage output)
- Max Load Resistance: 350Ω (current output)
- Control Inputs: Bank switching, zero shift, timer, reset, etc.
- Control Outputs: Judgment output (NPN/PNP selectable, NO/NC selectable)
- Output Current: Max 100mA/ch (50mA/ch typical)
- Power Supply: 10-30V DC (±10% ripple)
- Power Consumption: ≤2400mW (30V, 80mA max)
- Operating Temperature: -10°C to +50°C (no condensation)
- Relative Humidity: 35-85% RH (no condensation)
- Protection Rating: IP20
- Housing Material: Polycarbonate (front panel), PBT
- Dimensions: Approx. 45 × 170 × 153 mm (W×H×D)
- Weight: Approx. 150g
- Connection: Screw terminals
- Standards: CE, UL, RoHS compliant
Warranty & After-Sales
- Factory new units: 12 months warranty
- Refurbished units: 3-6 months warranty
- Technical support for configuration and installation
- Wiring and mounting assistance
- Compatibility verification with existing systems
- Commissioning and diagnostics support available
Delivery Time
- Standard delivery: 3-5 working days
- Express shipping available upon request
Why Choose Our Store
- Genuine KEYENCE components
- Global supply network with competitive pricing
- Expertise in industrial automation systems
- Comprehensive technical documentation
- Responsive customer service and support
Applications
- Laser displacement sensor signal processing
- Fiber optic sensor amplification
- Photoelectric sensor control
- Object detection and position monitoring
- Measurement and inspection systems
- Automated production line control
- Quality control equipment
