Description

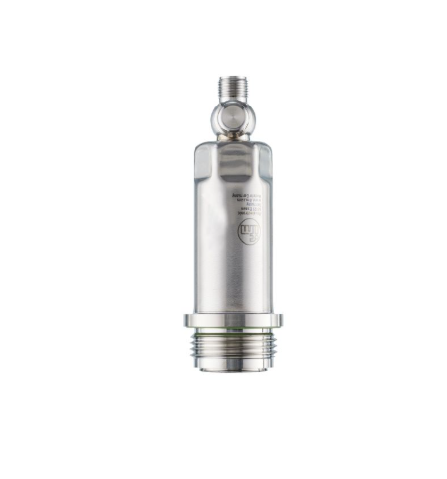

The ifm PM1703 and related PM17/PM16 series are flush pressure sensors designed for hygienic and industrial applications requiring dead-space-free media contact. These sensors utilize a ceramic capacitive measuring cell with a flush stainless steel diaphragm, preventing clogging in viscous or particulate media. Models such as PM1703 (-1…25 bar), PM1714 (-1…16 bar), PM1708 (-0.0125…0.25 bar), PM1707, PM1689 (-0.005…0.1 bar), PM1608, PM1704 (-1…10 bar), and PM1604 cover a wide range of pressure measurements from micro-pressure to medium-high pressure. All feature 4–20 mA analog output with IO-Link communication, G1 process connection, and IP67/IP68/IP69K protection for washdown environments.
Key Features
- Flush Diaphragm: Dead-space-free design prevents blockages in sticky or fibrous media.
- Measuring Ranges: From -1…25 bar (PM1703) down to -0.005…0.1 bar (PM1689) for micro-pressure.
- Output: 4–20 mA analog + IO-Link (smart configuration via ifm moneo / PLC).
- Process Connection: G1 thread (aseptoflex vario on PM17xx; sealing cone on PM16xx).
- Protection Rating: IP67 / IP68 / IP69K — suitable for CIP/SIP cleaning.
- Wetted Materials: Stainless steel 316L + ceramic Al₂O₃ diaphragm.
- Country of Origin: Germany
Model & Specification Table
Model | Measuring Range | Process Connection | Overload Pressure | Burst Pressure | Typical Application |
|---|---|---|---|---|---|
PM1703 | -1 … 25 bar | G1 Aseptoflex Vario | 50 bar | 100 bar | Medium-high pressure pipelines |
PM1714 | -1 … 16 bar | G1 Aseptoflex Vario | 32 bar | 64 bar | General process pressure |
PM1704 | -1 … 10 bar | G1 Aseptoflex Vario | 20 bar | 40 bar | Standard pipeline monitoring |
PM1708 | -0.0125 … 0.25 bar | G1 Aseptoflex Vario | 2 bar | 5 bar | Low pressure / draft measurement |
PM1707 | -0.0125 … 0.4 bar | G1 Aseptoflex Vario | 2 bar | 5 bar | Low pressure alternative range |
PM1689 | -0.005 … 0.1 bar | G1 Sealing Cone | 1 bar | 3 bar | Very low micro-pressure |
PM1608 | -0.0125 … 0.25 bar | G1 Sealing Cone | 2 bar | 5 bar | Low pressure (cone seal) |
PM1604 | -1 … 10 bar | G1 Sealing Cone | 20 bar | 40 bar | Standard pressure (cone seal) |
💡 Selection Tip:
Technical Specifications (Representative — PM1703)
Parameter | Specification |
|---|---|
Model | PM1703 (ifm Electronic) |
Measuring Principle | Ceramic capacitive cell with flush stainless steel diaphragm |
Measuring Range | -1 … 25 bar (relative / gauge pressure) |
Overload / Burst Pressure | 50 bar / 100 bar |
Output Signal | 4–20 mA (2-wire) + IO-Link (COM2, 38.4 kbps) |
Supply Voltage | 18–30 V DC (loop-powered) |
Accuracy | ≤ ±0.5% of span (typical) |
Long-term Stability | ≤ ±0.1% of span / year |
Process Connection | G1 Aseptoflex Vario (O-ring seal) |
Wetted Materials | Stainless steel 1.4404 (316L), ceramic Al₂O₃, FKM (Viton) O-ring |
Protection Rating | IP67 / IP68 / IP69K (with proper mating connector) |
Operating Temp. | -40 °C to +90 °C (media); -25 °C to +80 °C (ambient) |
Response Time | < 3 ms (analog); < 5 ms (IO-Link cycle) |
Electrical Connection | M12 × 4-pin (A-coded) |
Dimensions (Hex / Length) | Hex 36 mm AF, overall length ~ 105 mm |
Weight | Approx. 260 g |
Standards | CE, UL, FDA (wetted materials), EHEDG (hygienic design), RoHS |
Warranty & After-Sales
- Factory new units: 12 months warranty
- Refurbished units: 3-6 months warranty
- Technical support for:
- Process connection adaptation (G1 → Tri-Clamp / Varivent / DIN 11851 adapters)
- IO-Link configuration via ifm moneo / PLC
- Zero-point & span calibration adjustment
- Media compatibility check (special chemicals)
- Cross-reference vs. WIKA / Endress+Hauser / Baumer flush sensors
Delivery Time
- Standard delivery: 3-5 working days (stock items)
- Express shipping available upon request
Why Choose Our Store
- Genuine ifm Electronic pressure sensors
- Global supply network with competitive pricing
- Expertise in hygienic pressure measurement & IO-Link integration
- Comprehensive technical documentation (datasheets, CAD drawings, IO-Link IODD files)
- Responsive customer service and support
Applications
- Food & beverage: CIP/SIP pressure monitoring in pipelines & tanks
- Pharmaceutical: sterile process pressure measurement
- Water & wastewater: sludge pressure monitoring
- Chemical: low-viscosity media pressure (check chemical compatibility)
- Dairy / brewery: pasteurizer, homogenizer pressure loops
