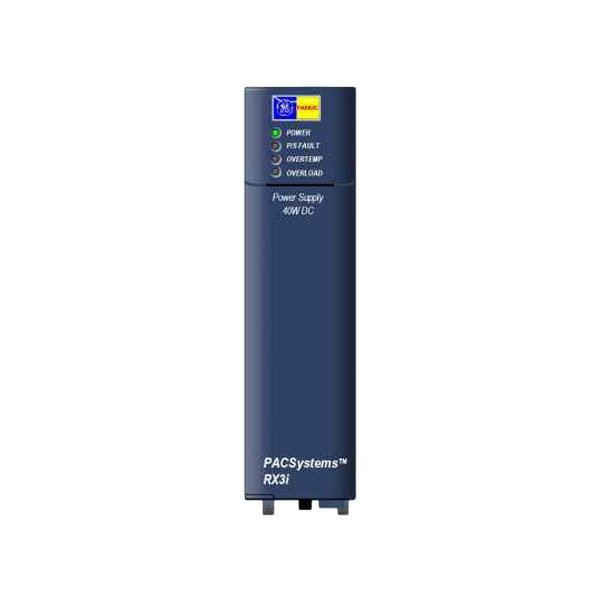

This listing includes a selection of genuine GE Fanuc (now Emerson) PACSystems RX3i and Series 90-30 PLC components. The IC695PSD140B is a 40W universal input power supply for the RX3i backplane, providing 5V and 24V DC power. The IC693CMM321 is a 10/100 Mbps Ethernet Communications Module for Series 90-30. The IC693ALG220 is a 4-channel analog input module with voltage/current inputs. The IC693MDL940H is a high-density 32-point DC input module. These modules are designed for industrial automation, offering robust performance in harsh environments.
Key Features
- IC695PSD140B: 40W RX3i Power Supply, 85-264V AC/DC input, 5V/8A & 24V/0.5A output
- IC693CMM321: Series 90-30 Ethernet Module, 10/100Base-T, RJ45, TCP/IP
- IC693ALG220: 4-channel Analog Input, ±10V/0-20mA, 12-bit resolution
- IC693MDL940H: 32-point DC Input Module, 24V DC, positive/negative logic, 16 points/common
- Compatibility: PACSystems RX3i & Series 90-30 PLC systems
- Standards: UL, CE, cULus listed
Technical Specifications
Parameter | IC695PSD140B (Power Supply) | IC693CMM321 (Ethernet) | IC693ALG220 (Analog In) | IC693MDL940H (Digital In) |
|---|---|---|---|---|
Series | PACSystems RX3i | Series 90-30 | Series 90-30 | Series 90-30 |
Input Voltage | 85-264V AC, 120-350V DC | 5V from backplane | 5V from backplane | 24V DC field power |
Output/Power | 5V @ 8A, 24V @ 0.5A | 10/100 Mbps TCP/IP | 4 channels, ±10V/0-20mA | 32 points, 24V DC |
Isolation | 1500V AC input to output | 1500V AC (port to logic) | 500V AC (field to logic) | 1500V AC (field to logic) |
Connection | RX3i backplane slot | RJ45 (Modbus TCP) | 20-pin removable terminal | 40-pin removable terminal |
Backup Time | 20ms typical holdup | N/A | N/A | N/A |
Status Indicators | OK, 5V, 24V LEDs | ACT, LINK, TX/RX LEDs | OK, Channel LEDs | OK, Group LEDs |
Dimensions | 57.15mm x 127mm | 57.15mm x 127mm | 57.15mm x 127mm | 57.15mm x 127mm |
Warranty & After-Sales
- Factory new units: 12 months warranty
- Refurbished units: 3-6 months warranty
- Technical support for module configuration and wiring
- Compatibility verification with existing PLC racks (RX3i vs 90-30)
- Firmware and software support (Proficy Machine Edition)
- Diagnostics and troubleshooting support available
Delivery Time
- Standard delivery: 3-5 working days
- Express shipping available upon request
Why Choose Our Store
- Genuine GE Fanuc / Emerson components
- Global supply network with competitive pricing
- Expertise in legacy PLC systems (Series 90, VersaMax, RX3i)
- Comprehensive technical documentation
- Responsive customer service and support
Applications
- Machine control and automation
- Process control systems
- Data acquisition and monitoring
- Legacy system upgrades and spare parts
- Manufacturing and assembly lines
