Description

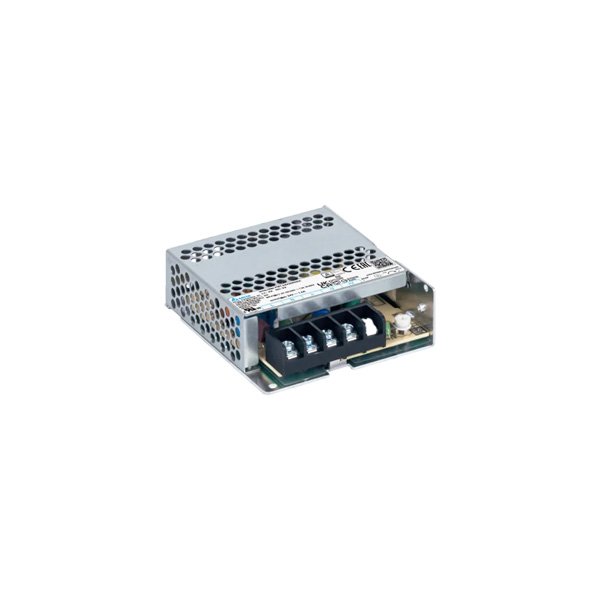

The Delta PMT-24V Series (including models PMT-24V35W2BA, 50W, 100W, and 150W) is a robust panel mount switching power supply designed for industrial automation and machine building. Delivering a stable 24V DC output, these units feature a compact, flat profile that allows for space-saving installation directly onto control panels or DIN rails. They are widely used to power PLCs, sensors, HMIs, and solenoid valves in harsh industrial environments.
Key Features
- Panel Mount Design: Flat profile with screw terminals, ideal for tight spaces behind control panels.
- High Efficiency: >85% efficiency reduces heat generation and energy costs.
- Wide Input Range: Universal AC input (85–264 V AC) and DC input (120–370 V DC).
- Comprehensive Protection: Built-in safeguards against overload, overvoltage, and overheating.
- Low Noise: Ripple and noise <100 mV (typical), suitable for sensitive electronics.
- Environmental: Conformal coating on PCB for enhanced corrosion and humidity resistance.
Technical Specifications
Parameter | PMT-24V35W2BA | PMT-24V50W2BA | PMT-24V100W2BA | PMT-24V150W2BA |
|---|---|---|---|---|
Output Power | 35 W | 50 W | 100 W | 150 W |
Output Voltage | 24 V DC (Adjustable) | 24 V DC (Adjustable) | 24 V DC (Adjustable) | 24 V DC (Adjustable) |
Output Current | 1.5 A | 2.1 A | 4.2 A | 6.3 A |
Input Voltage | 85–264 V AC / 120–370 V DC | 85–264 V AC / 120–370 V DC | 85–264 V AC / 120–370 V DC | 85–264 V AC / 120–370 V DC |
Efficiency | ≥ 85% | ≥ 85% | ≥ 85% | ≥ 85% |
Dimensions (W×H×D) | 36 × 84 × 115 mm | 36 × 84 × 115 mm | 51 × 84 × 115 mm | 51 × 84 × 115 mm |
Protection | Overload, Overvoltage, Overheat | Overload, Overvoltage, Overheat | Overload, Overvoltage, Overheat | Overload, Overvoltage, Overheat |
Certifications | CE, UL, TUV | CE, UL, TUV | CE, UL, TUV | CE, UL, TUV |
Warranty & After-Sales
- Factory new units: 12 months warranty
- Refurbished units: 3-6 months warranty
- Technical support for power sizing and wiring
- Compatibility verification with PLC and automation systems
- Commissioning and diagnostics support available
Delivery Time
- Standard delivery: 3-5 working days
- Express shipping available upon request
Why Choose Our Store
- Genuine Delta Electronics components
- Global supply network with competitive pricing
- Expertise in industrial power supplies and automation
- Comprehensive technical documentation
- Responsive customer service and support
Applications
- PLC and I/O system power
- HMI and sensor power
- Industrial machine control panels
- Lighting and automation systems
