Description
The Delta DVP-SS2 (DVP14SS211R / DVP14SS211T) and DVP-SE (DVP12SE11R / DVP12SE11T) series are ultra-compact, high-performance Programmable Logic Controllers (PLCs) with built-in digital I/O. The SS2 series is the 2nd generation of the slim-type SS line, offering faster execution, expanded instruction sets, and up to 8 special function modules. The SE series adds built-in High-Speed Counter (HSC) and Pulse Output (PTO) capabilities for simple positioning. Models ending in “R” have Relay Outputs (AC/DC load), while “T” models have Transistor (NPN / Sinking) Outputs (DC load / servo/stepper pulse).
Key Features
- Ultra-Compact: Slim body (width ~60mm) saves panel space.
- Built-in I/O:
- DVP14SS211x: 8 DI (24V DC) + 6 DO (Relay or Transistor)
- DVP12SE11x: 8 DI (24V DC) + 4 DO (Relay or Transistor)
- Execution Speed: 0.35 µs/step (basic instructions) — SS2 series.
- High-Speed Functions (SE series): 2-ch high-speed counter (up to 100kHz) & 2-ch pulse outputs (up to 100kHz).
- Expansion: Supports up to 8 expansion modules (Analog, Temperature, Comm.).
- Programming: WPLSoft (free) or ISPSoft.
- Country of Origin: Taiwan
Model & Specification Table
Model | Series | I/O Count | Output Type | Power Supply | Key Notes |
|---|---|---|---|---|---|
DVP14SS211R | SS2 | 8 DI + 6 DO | Relay (AC/DC) | 100-240V AC | Most popular SS2 w/ Relay |
DVP14SS211T | SS2 | 8 DI + 6 DO | Transistor (NPN/DC) | 100-240V AC | For pulse/servo ctrl |
DVP12SE11R | SE | 8 DI + 4 DO | Relay (AC/DC) | 24V DC | Built-in HSC/PTO, Relay |
DVP12SE11T | SE | 8 DI + 4 DO | Transistor (NPN/DC) | 24V DC | Built-in HSC/PTO, NPN |
Reference | SS (Gen1) | 8+6 | Various | AC/DC | Older gen, replaced by SS2 |
💡 Model Decode Tip:

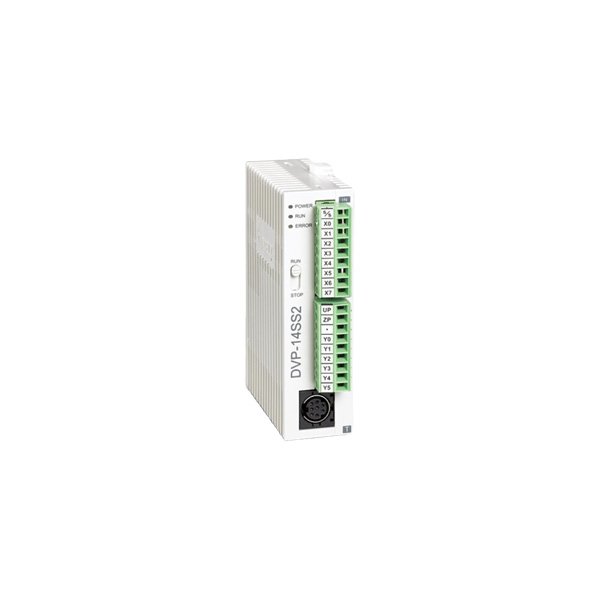

Technical Specifications (Representative – DVP14SS211R)
Parameter | Specification |
|---|---|
Series | Delta DVP-SS2 (2nd Gen Slim Type) |
Program Capacity | 16 K steps |
Digital Inputs | 8 pts × 24V DC (Sink/Source switchable) |
Digital Outputs | 6 pts × Relay (2A @ 250V AC / 30V DC) |
High-Speed I/O | N/A on SS2 base; use SE for HSC/PTO |
Max. Expansion Modules | 8 (Analog, Temp, Comm., etc.) |
Communication Ports | 1 × RS-232 (Programming/HMI) + 1 × RS-485 (Modbus RTU Master/Slave) built-in |
Backup | Super Capacitor (retains timer/counter/reg ~3 days) + EEPROM |
Operating Temp. | 0 °C to +55 °C |
Dimensions (W×H×D) | 60 mm × 90 mm × 75 mm |
Weight | Approx. 190 g |
Software | WPLSoft (v2.46+), ISPSoft (structured text/ladder) |
Warranty & After-Sales
- Factory new units: 12 months warranty
- Refurbished units: 3-6 months warranty
- Technical support for WPLSoft/ISPSoft configuration
- Expansion module selection (Analog: DVP04AD-S / DVP04DA-S; Comm: DVP12CM/EN)
- RS-485 Modbus RTU setup assistance
- Cross-reference vs. discontinued DVP-SS (Gen1) models
Delivery Time
- Standard delivery: 3-5 working days (stock items)
- Express shipping available upon request
Why Choose Our Store
- Genuine Delta Electronics PLC & Automation components
- Global supply network with competitive pricing
- Expertise in Delta DVP / AS / AH series PLC integration
- Comprehensive technical documentation (samples, wiring diagrams, WPLSoft examples)
- Responsive customer service and support
Applications
- Standalone packaging / labeling machines
- Small conveyor & material handling control
- Semi-automatic test fixtures / burn-in racks
- Food & beverage processing (relay outputs for AC loads)
- Simple positioning (SE series w/ pulse output to stepper/servo)
- Retrofit of obsolete relay-logic or older PLC panels
