Description

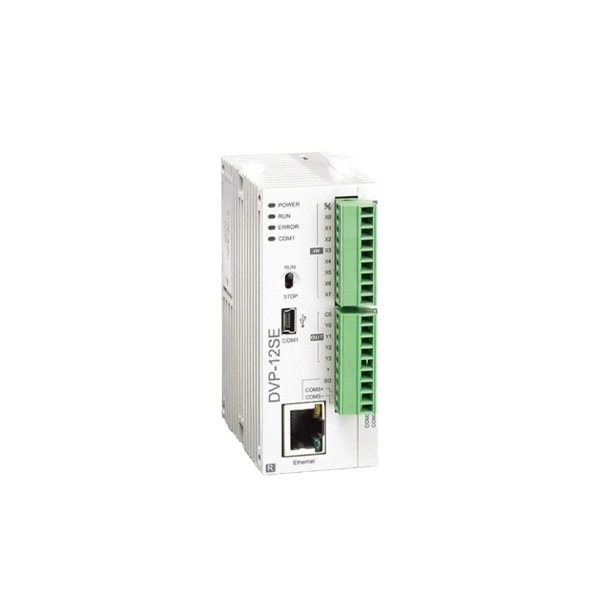

The DELTA DVP-S Series is a range of compact, high-performance programmable logic controllers (PLCs) designed for industrial automation and control applications. These CPU modules feature built-in digital I/O, high-speed counters, and communication ports, providing a cost-effective solution for small to medium-sized machinery. The series includes relay (R) and transistor (T) output variants to suit different load requirements.
Key Features
- Series: DVP-S (Standard Compact Series)
- Models Available:
- DVP26SE11R: 16 DI / 10 DO (Relay Output)
- DVP26SE11T: 16 DI / 10 DO (Transistor Output)
- DVP28SV11R2: 16 DI / 12 DO (Relay Output, Enhanced)
- DVP28SV11T2: 16 DI / 12 DO (Transistor Output, Enhanced)
- Programming Software: ISPSoft (Free Download)
- Communication: Built-in RS-485 (Modbus RTU support)
- High-Speed Counters: Available (X0, X1 inputs)
- Mounting: DIN Rail (35 mm)
- Country of Origin: Delta Electronics Standard
Technical Specifications
Parameter | DVP26SE11R/T | DVP28SV11R2/T2 |
|---|---|---|
Supply Voltage | 24 V DC | 24 V DC |
Digital Inputs | 16 (Sink/Source) | 16 (Sink/Source) |
Digital Outputs | 10 | 12 |
Output Type | Relay (R) or Transistor (T) | Relay (R2) or Transistor (T2) |
Max. Output Current | Relay: 2 A/point; Transistor: 0.5 A/point | Relay: 2 A/point; Transistor: 0.5 A/point |
Program Memory | 16 k Steps | 16 k Steps |
High-Speed Counters | 4 channels (100 kHz max) | 4 channels (100 kHz max) |
Communication Port | 1x RS-485 (COM1) | 1x RS-485 (COM1) |
Operating Temperature | -25°C to +55°C | -25°C to +55°C |
Dimensions (W×H×D) | 130 mm × 90 mm × 60 mm (approx.) | 130 mm × 90 mm × 60 mm (approx.) |
Standards | CE, UL, RoHS | CE, UL, RoHS |
Warranty & After-Sales
- Factory new units: 12 months warranty
- Refurbished units: 3-6 months warranty
- Technical support for model selection and wiring
- Assistance with ISPSoft software configuration
- Compatibility verification with expansion modules (DVP-S series)
Delivery Time
- Standard delivery: 3-5 working days
- Express shipping available upon request
Why Choose Our Store
- Genuine DELTA PLC components
- Global supply network with competitive pricing
- Expertise in industrial automation systems
- Comprehensive technical documentation (manuals, datasheets)
- Responsive customer service and support
Applications
- Small machine control (conveyors, packaging)
- HVAC and building automation
- Pump and motor control panels
- Material handling systems
- Process control and monitoring
