Description

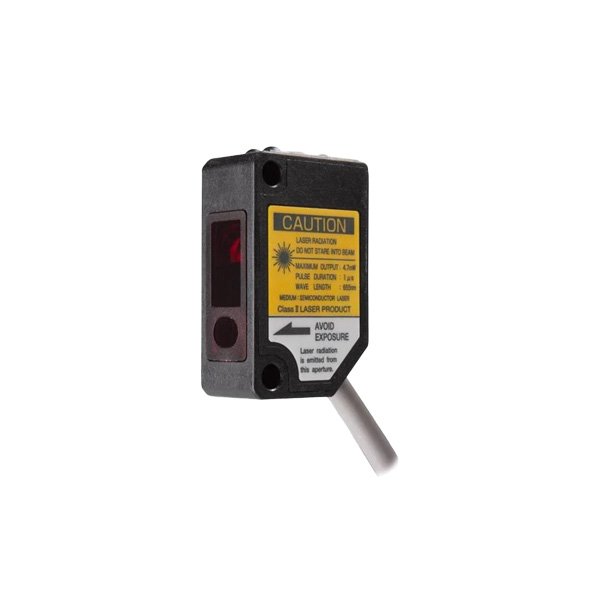

The BGS-ZL30P is a standard-sized background suppression photoelectric sensor from the BGS-ZL/BGS-Z series, designed for precise object detection in industrial automation. Utilizing advanced background suppression technology, this sensor accurately detects objects within a defined range while ignoring surfaces beyond the set distance. The compact, rectangular housing and easy-to-use potentiometer for range adjustment make it ideal for integration into machinery with space constraints.
Key Features
- Technology: Background Suppression (BGS) via triangulation
- Sensing Range: 30 cm (300 mm) standard
- Light Source: Red LED (visible red light)
- Output Type: PNP output (NO/NC selectable)
- Adjustment: Integrated potentiometer for precise sensing distance setting
- Indicator: Red LED for output status, green LED for power
- Housing: Compact rectangular plastic housing
- Protection: Reverse polarity protection, short-circuit protection
Technical Specifications
Parameter | Specification |
|---|---|
Model | BGS-ZL30P |
Series | BGS-ZL / BGS-Z |
Operating Voltage | 10-30 V DC |
Current Consumption | ≤ 25 mA |
Output Current | ≤ 100 mA |
Response Time | ≤ 1 ms |
Light Spot Diameter | Approx. 10 mm at 300 mm |
Ambient Light Immunity | ≤ 3000 Lux (incandescent light) |
Housing Material | Plastic (PBT) |
Protection Class | IP67 (dust and waterproof) |
Connection | Pre-wired cable or connector variants |
Operating Temperature | -25°C to +55°C |
Warranty & After-Sales
- Factory new units: 12 months warranty
- Refurbished units: 3-6 months warranty
- Technical support for installation and alignment
- Assistance with background suppression setup and troubleshooting
- Compatibility verification with PLC input modules
Delivery Time
- Standard delivery: 3-5 working days
- Express shipping available upon request
Why Choose Our Store
- Genuine components from reputable manufacturers
- Global supply network with competitive pricing
- Expertise in industrial sensors and automation
- Comprehensive technical documentation
- Responsive customer service and support
Applications
- Object detection on conveyors
- Material handling and packaging machinery
- Assembly line part presence verification
- Robotics end-of-arm tooling
- Automated storage and retrieval systems (ASRS)
