Description

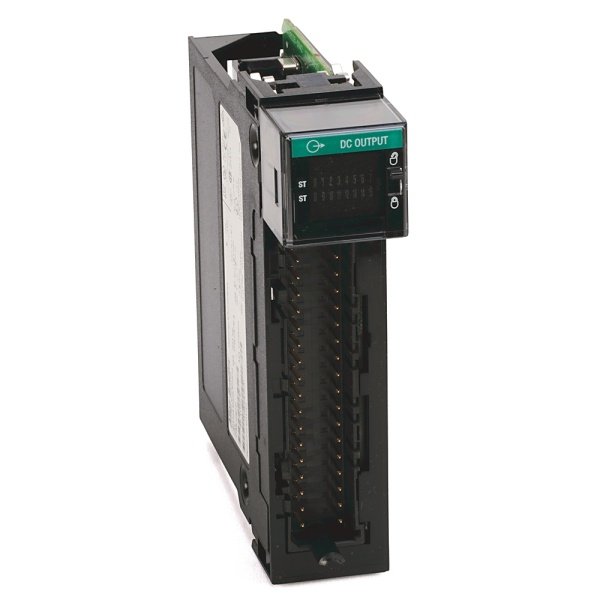

The Allen-Bradley 1756 series represents the premium ControlLogix platform from Rockwell Automation, designed for high-performance industrial automation. This selection includes key components for building a robust control system: the 1756-OB16I and 1756-OB32 digital output modules for actuating valves and motors, the 1756-IB16I digital input module for monitoring sensors, and the 1756-CNBR communication module for deterministic network control. Engineered for reliability in harsh environments, these modules feature high isolation, diagnostic capabilities, and seamless integration with the Logix5000 programming environment.
Key Features
- ControlLogix Platform: High-performance, modular I/O system for large-scale automation.
- High Isolation (I-Series): The 1756-OB16I and 1756-IB16I offer individual channel isolation, protecting against ground loops and noise.
- High-Density I/O: The 1756-OB32 packs 32 output points into a single-slot footprint, saving panel space.
- Deterministic Networking: The 1756-CNBR provides scheduled, high-speed I/O updates over ControlNet.
- Diagnostic LEDs: Visual status indicators for power, communication, and I/O state.
- Removable Terminal Blocks: Simplify wiring and maintenance with pluggable connectors.
- Country of Origin: USA
Technical Specifications
Module | Type | Points | Voltage | Isolation | Key Characteristics |
|---|---|---|---|---|---|
1756-OB16I | Digital Output | 16 | 10-30V DC | Individual | Individually isolated outputs, ideal for mixed voltage systems |
1756-OB32 | Digital Output | 32 | 10-31.2V DC | Group (32 points) | High-density module, supports 0.5A per point, 16A total |
1756-IB16I | Digital Input | 16 | 10-30V DC | Individual | Individually isolated inputs, sink/source selectable |
1756-CNBR | Communication | N/A | 5.1V DC (Backplane) | N/A | ControlNet scanner, redundant media support, 5 Mbps |
Common Specifications:
- Operating Temperature: 0°C to 60°C (32°F to 140°F)
- Storage Temperature: -40°C to +85°C (-40°F to +185°F)
- Communication: ControlLogix backplane, compatible with RSLogix 5000 / Studio 5000
- Mounting: 1756-series chassis (e.g., 1756-A4, A7, A10)
Warranty & After-Sales
- Factory new units: 12 months warranty
- Refurbished units: 3-6 months warranty
- Technical support for configuration and installation
- Wiring and mounting assistance
- Compatibility verification with existing systems
- Commissioning and diagnostics support available
Delivery Time
- Standard delivery: 3-5 working days
- Express shipping available upon request
Why Choose Our Store
- Genuine Allen-Bradley / Rockwell Automation components
- Global supply network with competitive pricing
- Expertise in industrial automation systems
- Comprehensive technical documentation
- Responsive customer service and support
Applications
- Automotive Manufacturing: Body shop and paint line control
- Material Handling: Conveyor and sortation systems
- Process Industries: Chemical, oil & gas, and water/wastewater
- Packaging Machinery: High-speed filling and sealing
- Discrete Manufacturing: Assembly and test systems
