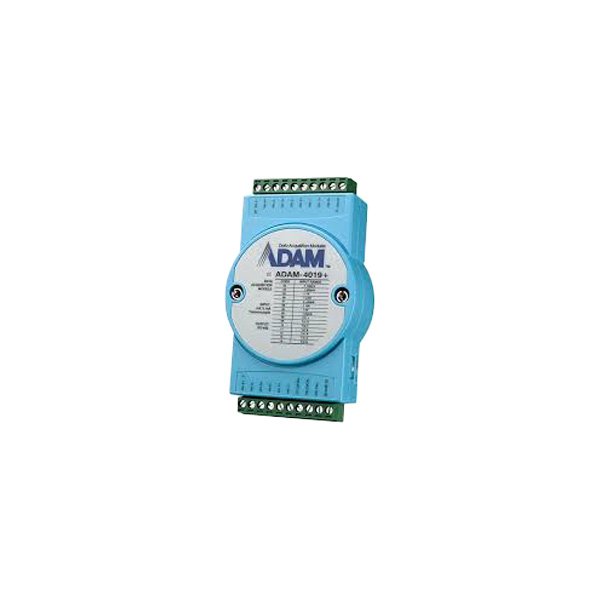

The Advantech ADAM-4019+​ is a high-performance 8-channel analog input module​ designed for remote data acquisition over RS-485 (Modbus/RTU or Advantech ASCII protocol). It is specifically optimized for thermocouple (TC) and mV signal measurement, with each channel independently configurable for:
  • Thermocouple Types: J, K, T, E, R, S, B, N
  • mV ranges: ±15 mV, ±50 mV, ±100 mV, ±500 mV, ±1 V, ±2.5 V
  • Optional + current input via shunt (externally)
  • Burnout detection for open TC
The ADAM-4019+ features 3000 V DC optical isolation​ between I/O and RS-485 bus, on-board cold-junction compensation (CJC) for TC types, and watchdog timer — making it ideal for distributed temperature monitoring in harsh industrial environments without running analog signal wires back to a central PLC analog card.

Key Features

  • Inputs: 8 × Differential Analog Inputs (individually configurable per channel)
  • Input Types: Thermocouple J/K/T/E/R/S/B/N, mV (±15 mV … ±2.5 V), V (±1 V, ±2.5 V — some ranges)
  • Resolution: 16-bit A/D converter
  • Communication: RS-485, 2-wire, Modbus/RTU (default) & Advantech ASCII (selectable)
  • Isolation: 3000 V DC (I/O ↔ Communication)
  • Cold-Junction Compensation (CJC): Built-in for TC measurement (±1 °C accuracy typical)
  • Power Supply: +10 … +30 V DC (typical 24 V DC)
  • Mounting: DIN rail (35 mm)
  • Country of Origin: Taiwan

Technical Specifications (ADAM-4019+)

Parameter
Specification
Model / Order Code​
ADAM-4019+ (Advantech)
Analog Input Channels​
8 differential (configurable individually)
A/D Resolution​
16 bits
Input Ranges (Software Selectable)​
TC: J, K, T, E, R, S, B, N; mV: ±15, ±50, ±100, ±500 mV; V: ±1 V, ±2.5 V (check manual for exact list)
Accuracy (TC mode)​
±0.1 % FSR ± 0.5 °C (CJC included) — typical
Cold-Junction Compensation (CJC)​
Built-in, auto-corrected — accuracy ±1 °C
Burnout Detection​
Yes — detects open thermocouple (drives reading to over/under-range)
Communication Interface​
RS-485 (2-wire half-duplex) — Modbus/RTU (default 9600 bps, 8N1) & Advantech ASCII
Max. Nodes on Bus​
Up to 256 ADAM modules (with repeaters)
Isolation Voltage​
3000 V DC (I/O side to RS-485 side)
Power Supply​
+10 … +30 V DC (typical 24 V DC @ < 2 W)
Connectors​
Removable screw terminal block (signal + power + RS-485 A/B / GND)
Watchdog Timer​
Yes — recovers from communication lock-up
Mounting​
35 mm DIN rail (EN 60715)
Dimensions (W×H×D)​
72 mm × 118 mm × 35 mm (approx.)
Weight​
~ 0.13 kg
Operating Temp.​
-10 … +70 °C (some sources -25 … +75 °C — check datasheet rev.)
Standards​
CE, FCC, RoHS
💡 Configuration & Setup Tips:
  • Use Advantech Utility (AdamApax .NET Utility / Adam-4000 Utility)​ to set Modbus slave ID, baud rate, input range per channel, and CJC offset.
  • For Modbus masters (PLC/DCS/SCADA): Holding registers typically map AI values as signed integers (e.g., Reg 0x0000–0x0007 = Ch1–Ch8). Refer to Advantech Modbus mapping table.
  • RS-485 wiring: A(+) / B(-) — ensure proper polarization; add 120 Ω termination resistor at bus ends if > 100 m or high baud.
  • If mixing TC types on one module — ADAM-4019+ allows per-channel configuration​ — very flexible vs fixed-range cards.

Warranty & After-Sales

  • Factory new units: 12 months warranty
  • Refurbished units: 3-6 months warranty (loop-back tested with simulator)
  • Technical support for:
    • Per-channel configuration (TC type / mV range selection via utility)
    • Modbus register mapping for S7-1200/1500, CJ series, Delta, etc.
    • RS-485 bus wiring & termination (A/B polarity, GND reference, repeater need)
    • CJC offset calibration & burnout interpretation
  • Cross-reference vs. Moxa ioLogik E1200 TC modules or ICP DAS I-7018 if needed

Delivery Time

  • Standard delivery: 3-5 working days (stock items)
  • Express shipping available upon request

Why Choose Our Store

  • Genuine Advantech ADAM series remote I/O — not re-badged clones with poor CJC stability
  • Global supply network with competitive pricing
  • Expertise in distributed temperature DAQ & Modbus RS-485 network design
  • Comprehensive technical documentation (register map, utility software guide, CJC note)
  • Responsive customer service and support

Applications

  • Distributed Furnace / Oven Temp. Monitoring: Multiple TC points around plant — poll via RS-485 back to SCADA (no expensive analog wiring)
  • Plastic / Extrusion Machine Zone Temp.: 8+ zones per ADAM-4019+; multiple modules on one RS-485 bus
  • Food Processing (Oven / Freezer): TC monitoring with CJC — hygienic sensors + remote DAQ
  • Environmental Chamber Testing: Multi-point TC logging via Modbus to PC or PLC
  • Retrofit: Replace hard-wired TC to central PLC analog card — reduce noise-prone analog runs
